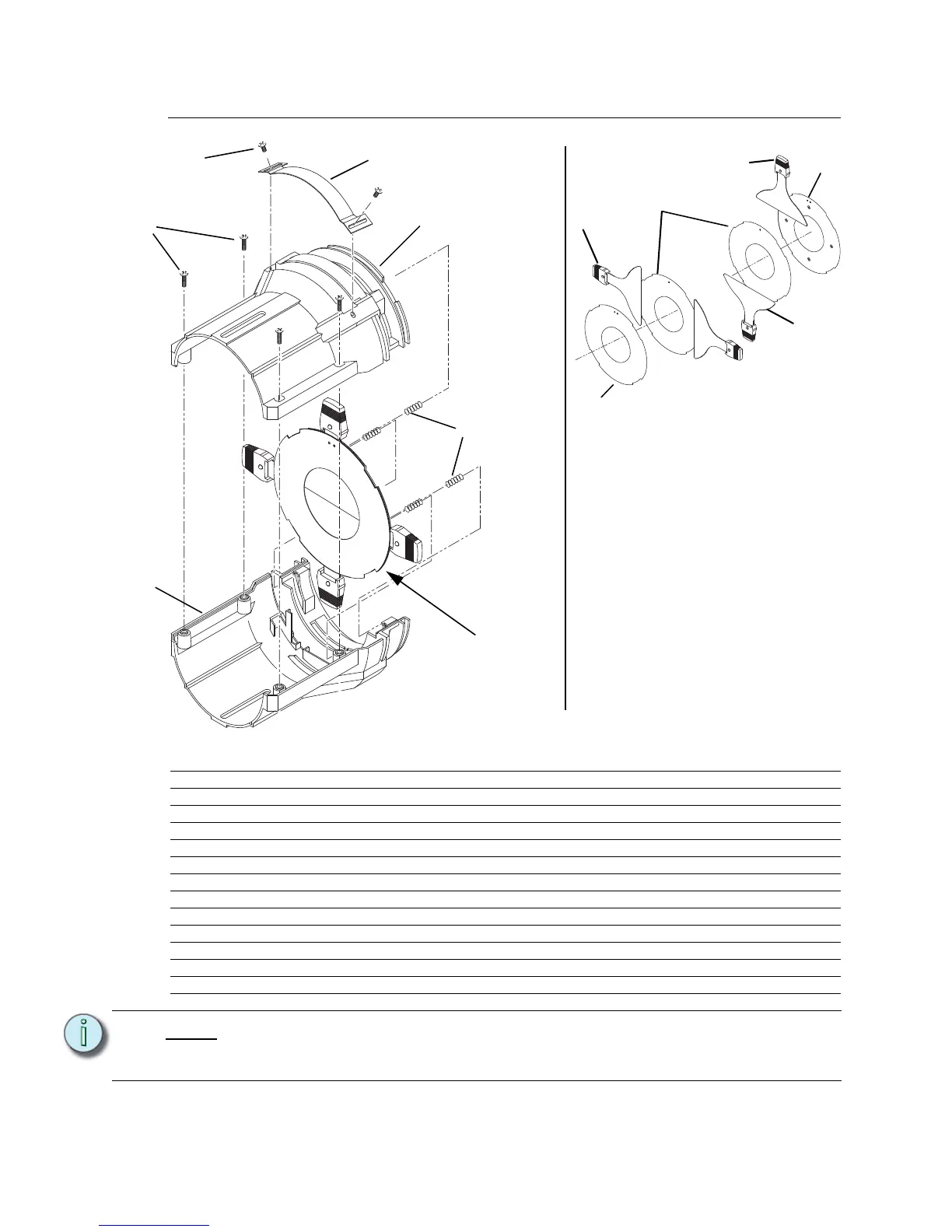

Shuttle Barrel Assembly 11
Shuttle Barrel Assembly
Reference
Number
Part
Number
Description Quantity
Required
1 7060A2025 Shutter blade assembly 4
2 7060A3001-01 Plate, divider with dimples (bottom) 1
3 7060A3001-02 Plate, divider (top) 1
4 7060A3003 Plate, gate (middle) 2
5 7060A3045 Cover, Iris Slot, Black 1
6 7060A3052 Shutter barrel, top casting, Black 1
7 7060A3053 Shutter barrel, bottom casting, Black 1
8 7060A4006 Shutter blade handle 4
9 HW3165 Screw, 8/32 x 1/2, PhPH Taptite Blz 4
10 HW232 Screw, 6-32 x 1/4” (Slot cover retention - pre 11/99) 2
11 HW372 Screw, 8-32 x 1/4” (begins 11/99) 2
12 HW370 Nut, Ny-lok, 8/32, black zinc 4
13 HW391 Screw, 8-32 x 3/4” PhPHMS, black zinc 4
14 HW754 Shutter spring 4
Note:
Any part that is indicated as “Black” may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
Shutter Assembly: The bottom divider plate
(4) has four dimples punched into the surface;
the top plate (6) has none. The middle divider
plates (5) are noticeably thinner-gauge metal
than the other two.
6
7
See detail to
the right
14
9
5
11
4
3
2
Figure 12
Figure 13
1
8
8
