ETC Source Four - Basic Fixture

Basic Fixture 1
Basic Fixture
Reference
Number
Part
Number
Description Quantity
Required
1 7060A2008 Lamp burner assembly rated up to 750W, Black 1
2 7060A2011-K Reflector housing assembly, single clutch, Black 1
3 7060A2011-K1 Reflector housing assembly, single clutch, White 1
4 7060A2020-K Reflector housing assembly, double clutch, Black 1
5 7060A2020-K1 Reflector housing assembly, double clutch, White 1
6 7060A2012-K Shutter barrel assembly, Black 1
7 7060A2012-K1 Shutter barrel assembly, White 1
8 7060A2000-K 5° lens tube, with knob 1
9 7060A2001-K 10° lens tube, with knob 1
10 7060A2050-K 14° lens tube, with knob 1
11 7060A2002-K 19° lens tube (6 x 16), with knob 1
12 7060A2003-K 26° lens tube (6 x 12), with knob 1
13 7060A2004-K 36° lens tube (6 x 9), with knob 1
14 7060A2005-K 50° lens tube (4.5 x 6), with knob 1
15 7060A2051-K 70° lens tube, with knob 1
16 7060A2052-K 90° lens tube, with knob 1
17 7060A4008-01 Knob set with male insert 2
18 HW5143 Washer, flat fiber 1
19 HW5197 Screw, 1/4-20 x 5/8, black zinc 1
Note:
Any part that is indicated as “Black” may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
1
2
3
4
5

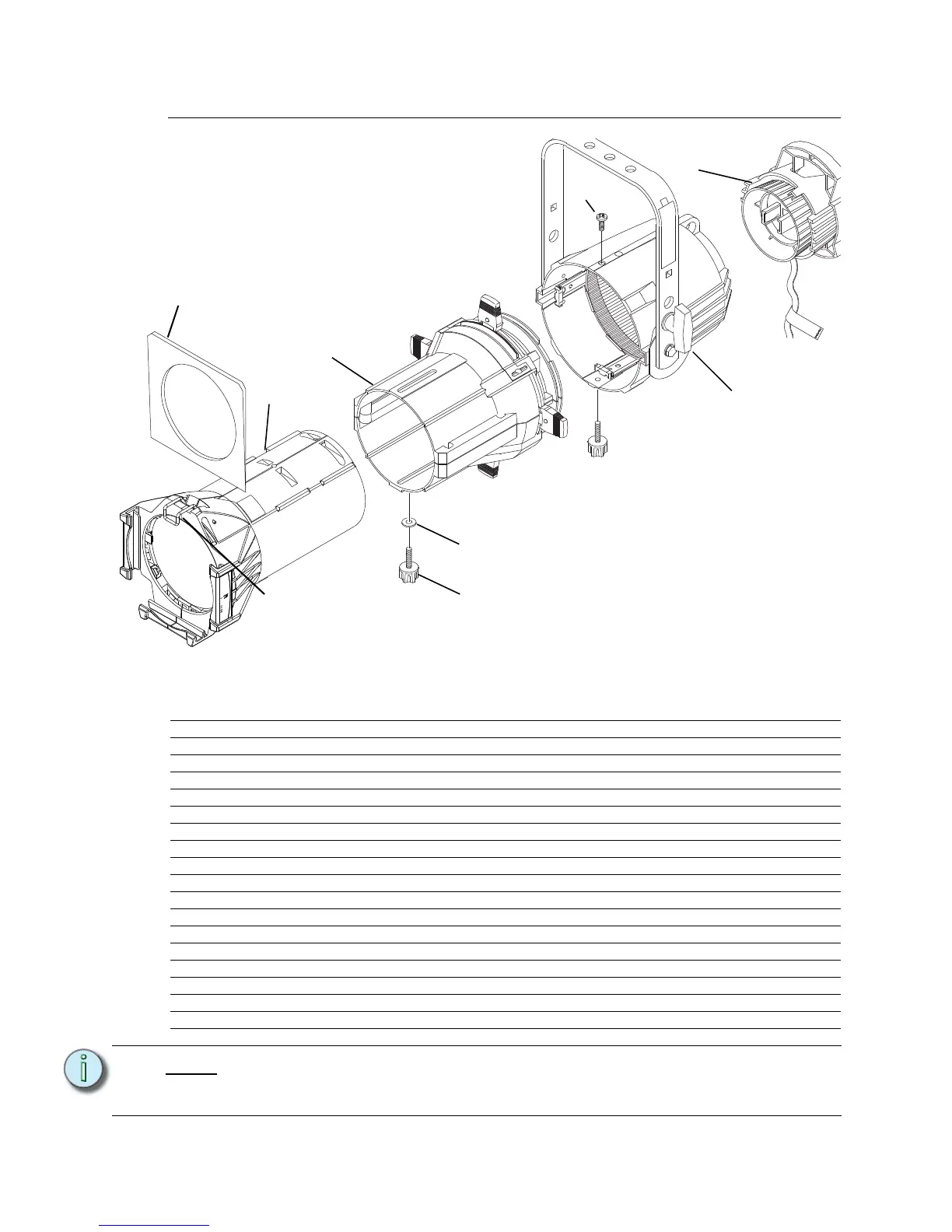

Figure 1
6
7
Color frame
Gel retainer
clip
8
9
10
11
12
13
14
15
16
18
17
19
