ETC Source Four - Basic Assembly

Lamp Burner Assembly 3
Lamp Burner Assembly
Reference
Number
Part
Number
Description Quantity
Required
1 7060A1033 Lamp retainer retrofit kit (Note: Does not include socket) 1
2 7060A2015
Light baffle retrofit kit
Includes socket w/ mounting hardware and sleeve
1
3 7060A3007
Socket, light baffle casting (Note: For all related fixtures regardless
of color)
1
4 7060A3011 Hub, index casting 1
5 7060A3012 Spring, lamp retainer 1
6 7060A3025 Screw, 1/4-20 x 1.55 knurled head 1
7 7060A3055 Housing, socket, casting, Black 1
8 7060A3056 Clamp, strain relief, Black 1
9 7060A3085 Lamp retainer wire 1
10 7060A4007 Knob, X-Y, lamp set 1
11 7060A4008-02 Knob, Z, lamp set w/ female insert 1
12 7060A4011 Bushing cup 1
13 7060A4019 Label, Fixture Warning 1
14 7060A4037 Handle, Insulated Rear, Black 1
15 7060A4094 750W Handle label, Black 1
16 7060A4095 Label, 750W Handle, White 1
17 7060B7003
48" Source Four ground wire assembly
W420 wire, 16 Awg, 200C/300V, green, UL 1180/CSA w/ J490T
lugs
1
18 7060B7007
4" Source Four ground wire assembly
W420 wire, 16 Awg, 200C/300V green, UL 1180/CSA w/ J490T
lugs
1
19 7060B7019 S4 UL Socket Assy 1
20 HW2125 Screw, 6-32 x 3/8” PhFHTC (lamp blocking screw not pictured) 1
21 HW2181 Screw, self tap, 6-32 x 5/8, black zinc 4
22 HW3103 Screw, 8-32 x 5/8 PhFHMS, black zinc 2
4
12
7
24
31
29
25
18
3
239
14
21
6
11
27
28
26
8
22
5

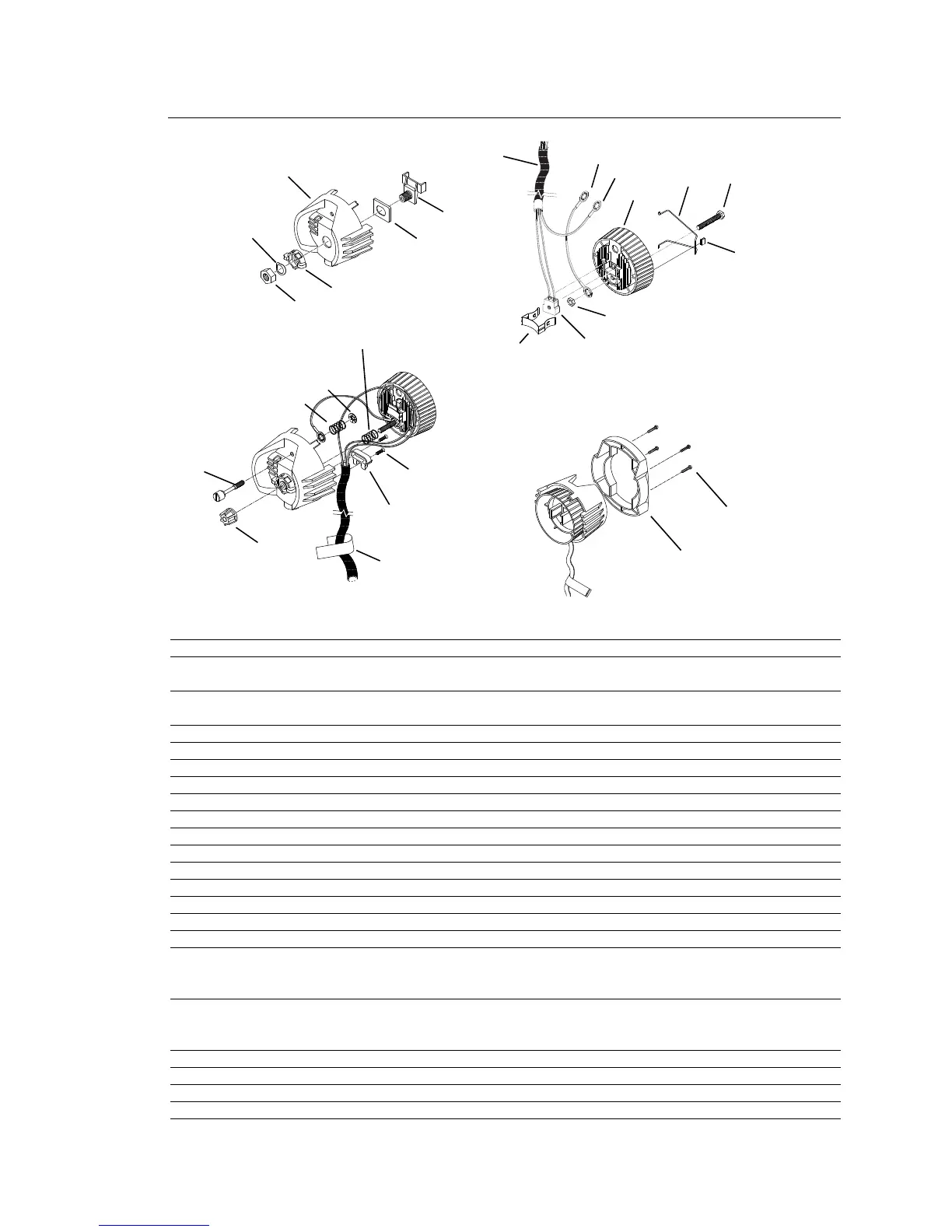

Figure 2
10
13
17
30
19
7
