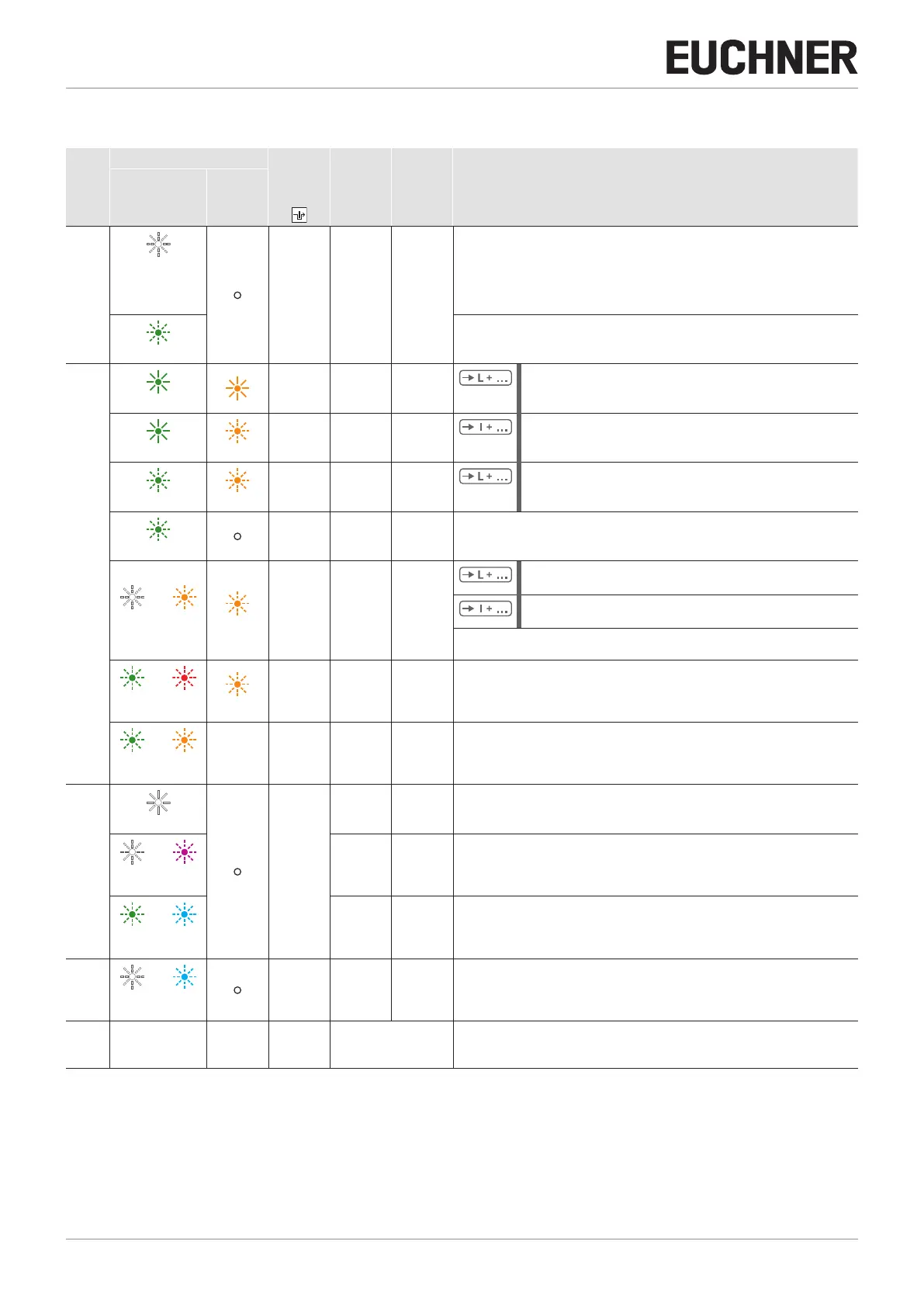

15.2. Status messages
Operating
mode
LED indicator Safety
outputs
FO1A /
FO1B
Guard
locking
signal OL
Door po-
sition1
signal
OD
Status
STATE
RGB
LOCK
orange
Self-test
white quickly
3 Hz
(CTS-BP: 2 s;
CTS-BR: 5 s)
off off off
Self-test after operating voltage is switched on.
green quickly
No communication with the BR/IO-Link Gateway.
Normal operation
green
on on on
If guard lock monitoring is active: door is closed and locked.
The safety outputs of the preceding device in a series connection are
switched on.
green slowly
on off on
With inactive guard lock monitoring: door is closed.
The safety outputs of the preceding device in a series connection are
switched on.
green slowly slowly
off off on
Door is closed and not locked. The safety outputs of the preceding
device in a series connection are switched off.
green slowly
off off off Door is open.
¨
white/orange
slowly
slowly
X off X
Guard locking has been manually released. The safety outputs are
switched off.
Guard locking has been manually released. The safety outputs remain
switched on as long as the actuator is in the switch.
Actuator was not fully inserted.
¨
green/red
quickly
quickly
X on on The locking element is stuck.
¨
green/orange
slowly
X off X X The predecessor in the series connection is not switched on.
Teach-in operation
white
off
off on
Device is in teach-in standby (see chapter 13.1. Conguring device and teaching-in
actuator for the rst time on page 32).
¨
white/violet
slowly
X off Teach-in operation. Door is closed.
¨
green/blue
quickly
X X Positive acknowledgment after successful teach-in operation.
Factory
reset
¨
white/blue
quickly
off off off Factory reset
Error
depending on the
error
depending
on the
error
off depending on the error Error message (see chapter 15.3. Error messages on page 37).
