MAN20001587-01-02/23 (translation of the original operating instructions)
Operating Instructions
Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX
EN
10. Connection of a single CTS-C1-BP/BR-FLX (separate operation)
WARNING
In the event of a fault, loss of the safety function due to incorrect connection.
Ì To ensure safety, both safety outputs FO1A and FO1B must always be evaluated.
Important!
The example shows only an excerpt that is relevant for the connection of the CTS system. The example
illustrated here does not show complete system planning. The user is responsible for safe integration
into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter
the order number of your switch in the search box. You will nd all available connection examples for
the device in Downloads.

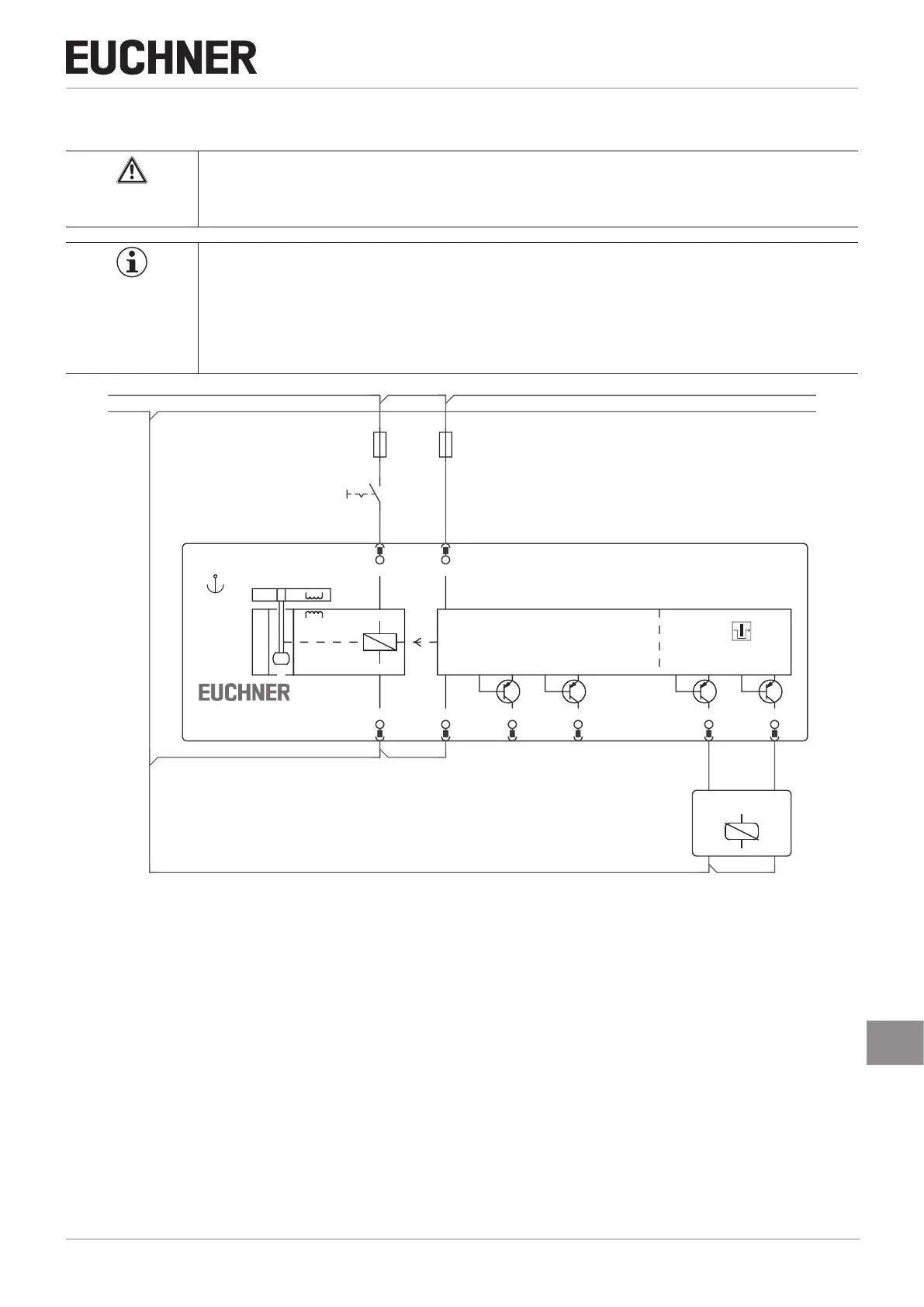

Fig. 5: Connection example for separate operation (principle of operation)
Connected load
Safety Outputs
Monitoring Outputs
Locking
active
Door
Monitoring
Actuator cong L+HC
Actuator
Read Head
FO1A
3
FO1B
4
OD
6
IMM
8
UB
2
IMP
1
0 V
UB
7
OL/C
5
-B1
EUC.167917
CTS-C1-BP-CC-FLX-AP-VSA-167917
EUC.167919
13
14
-S1
1
2
-F2
1
2
-F1
24V DC
0 V
24V DC
0 V
