Operating Instructions
Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX
12
(translation of the original operating instructions) MAN20001587-01-02/23

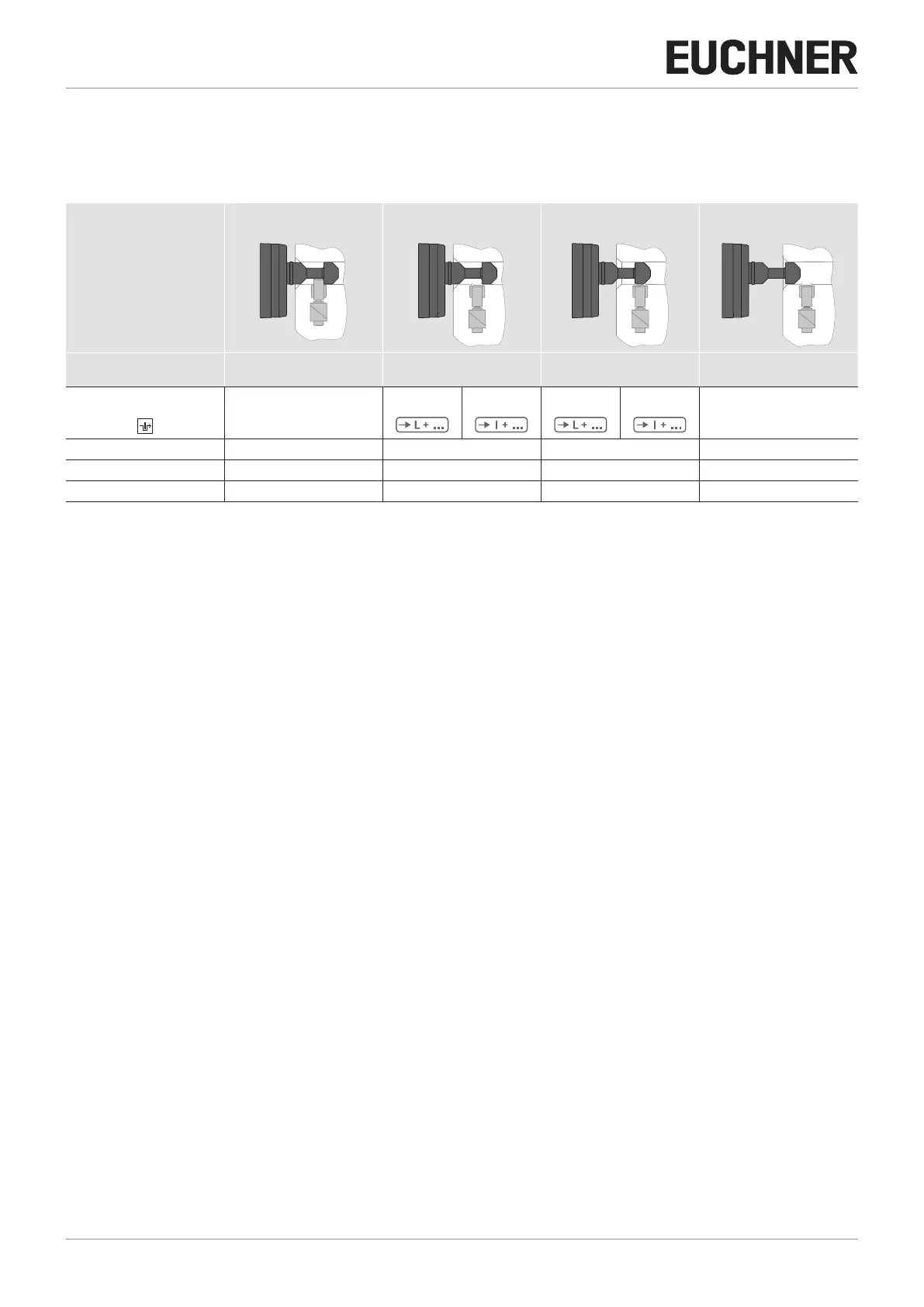

6.4. Switching states
The detailed switching states for your switch can be found in chapter 15. Status and error messages on page 35. All
safety outputs, signals and display LEDs are described there.
Guard closed and locked
Guard closed and not
locked, ready for locking
Guard closed and not locked Guard open
Power at the guard locking
solenoid
off on on irrelevant
Safety outputs
FO1A and FO1B
on
off on off on
off
Guard locking signal OL on off off off
Door position1 signal OD on on on off
Door position2 signal OT on on off off
