EUCHNER CTS-C1-BP-FLX User Manual

45
MAN20001587-01-02/23 (translation of the original operating instructions)
Operating Instructions
Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX
EN

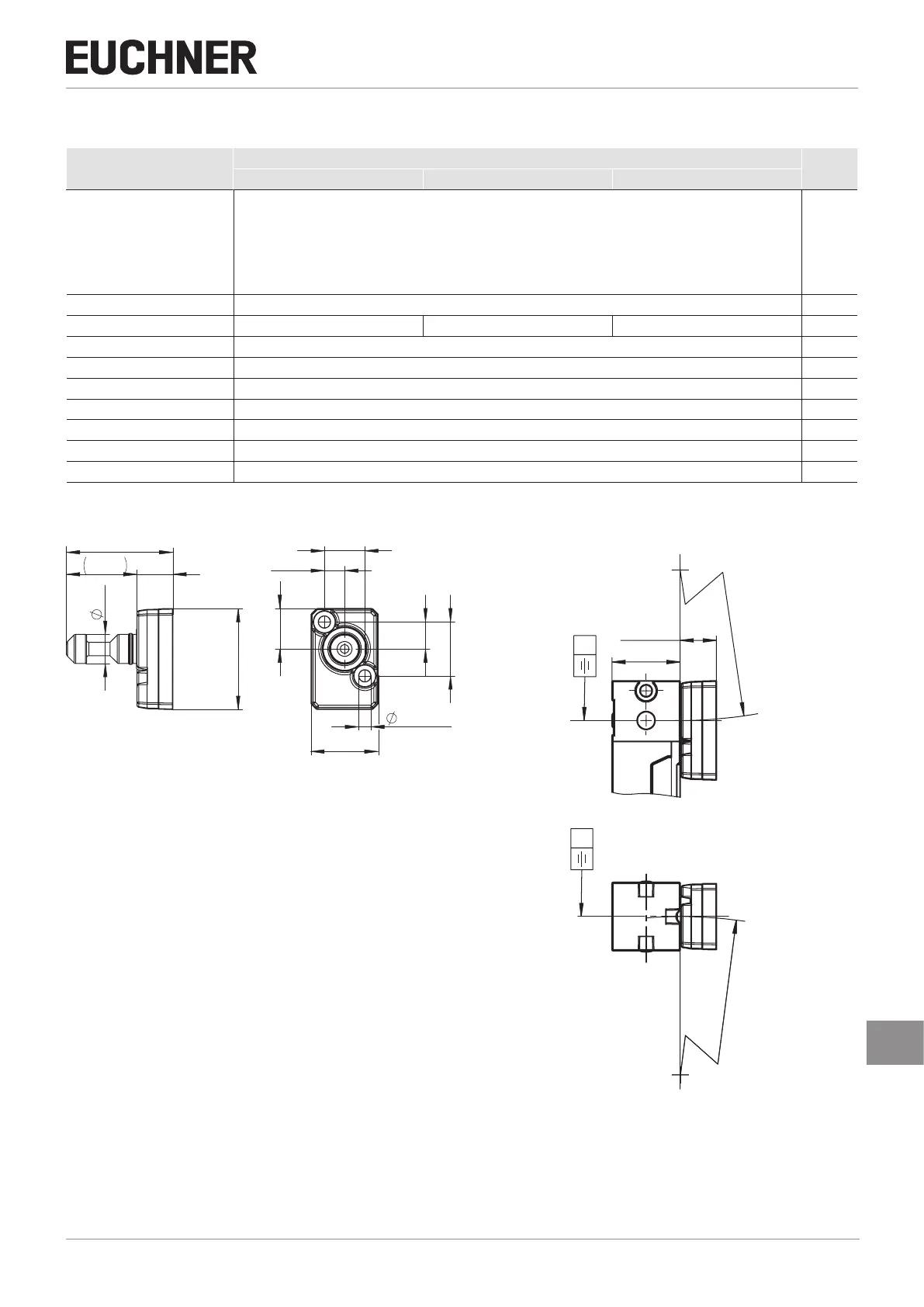

16.4. Technical data for actuator A-FLX-D-0.-…
Parameter
Value
Unit
min. typ. max.
Material
- Mounting Safety screws, galvanized steel 8.8
- Cover NBR
- Actuating element Stainless steel
- Housing Fiber reinforced plastic, black
Weight 0.06 kg
Ambient temperature -20 - +55 °C
Degree of protection IP65/IP67/IP69/IP69K
Mechanical life 1x10
6
Locking force, max. 3,900 N
Locking force F
Zh
3,000 N
Installation orientation Any
Overtravel 4 mm
Power supply Inductive via read head
16.4.1. Dimension drawing for actuatorA-FLX-D-0.-…
R≥200
16,5
+
4
0
31
R≥200
4
4
R≥200
45
16
47,5
13
31,5
18
9
12
24
18
5,5 (2x)
30
Min. door radii
