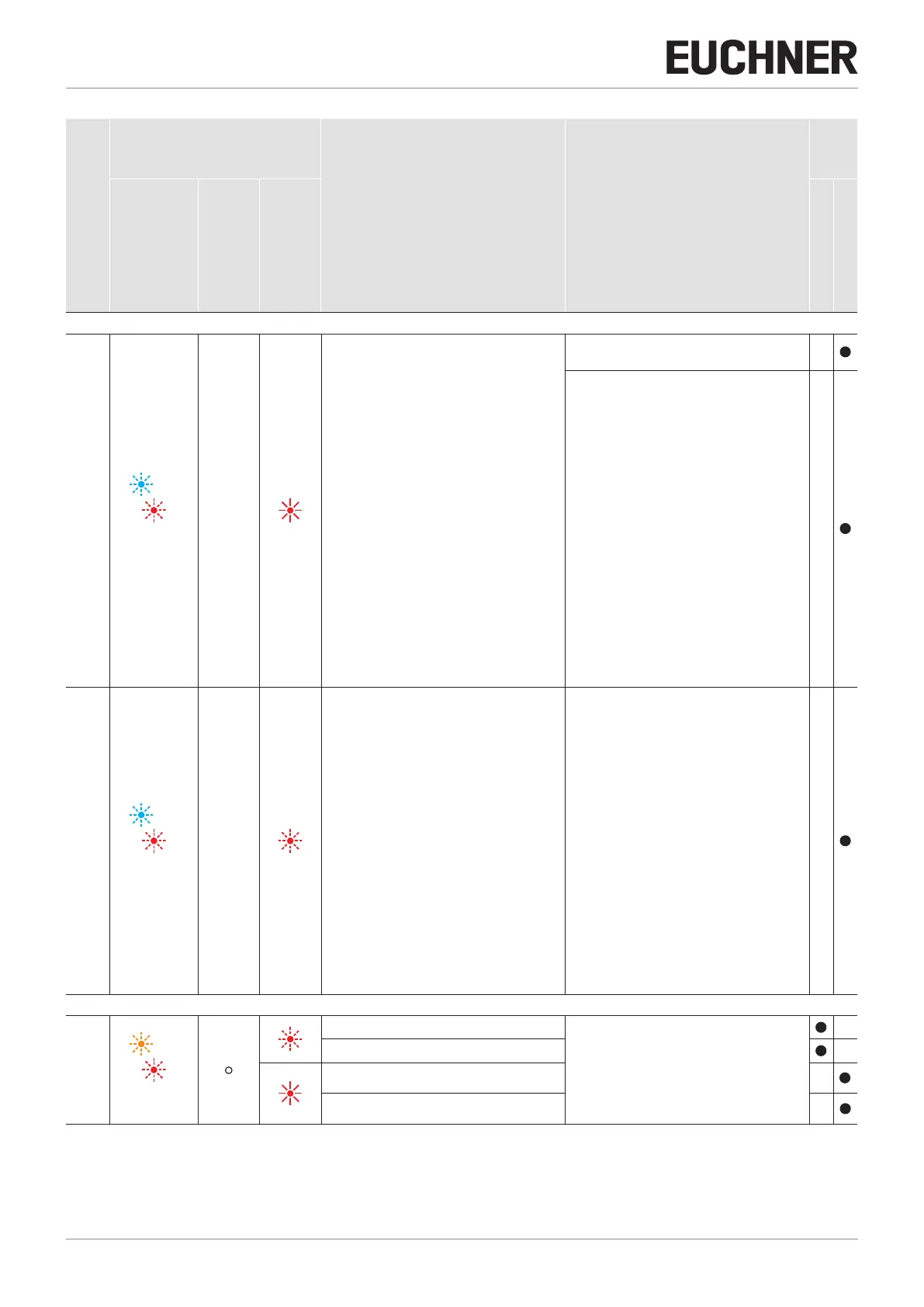

Operating Instructions
Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX
38
(translation of the original operating instructions) MAN20001587-01-02/23
Error code via IO-Link
LED indicator
Error Troubleshooting
Ac-
knowl-
edging
errors
STATE
RGB
LOCK
orange
DIA
red
Opening/closing door
Reset
Actuator plausibility errors
0x89
¨
blue/red
quickly
X
Possibly mechanically damaged actuator detected
during operation.
Check whether the actuator is outside the actuat-
ing range or in the limit range.
Release guard locking. Remove actuator. Check
actuator and switch for any damage. Replace
switch if necessary.
Take one of the following measures if the actuator
is damaged:
Ì For evaluation with high coding level: teach-in
new actuator, see chapter 13.2. Teaching-in new
actuator (only for evaluation of the actuator with
a high coding level) on page 33.
Ì For evaluation with low coding level: use a new
actuator with the same conguration.
Perform a function test afterward.
Take one of the following measures if the actuator
is undamaged:
Ì With active guard lock monitoring: perform a
restart with removed actuator. Take the measures
described for error code 0x8E to release the
actuator code.
Ì With inactive guard lock monitoring: perform a
reset.
0x8E
¨
blue/red
slowly
X
Disabled actuator code detected after error 0x89. Once it has been established that the actuator is
undamaged, take one of the following alternative
measures:
Ì Guard locking is released and the actuator is re-
moved. Actuate guard locking; the guard locking
pin moves up and the LOCK LED ashes.
Insert the disabled actuator into the switch head.
The STATE LED ashes green/blue. Interrupt
voltage for least 3 seconds.
The disabled actuator code is deleted. The
undamaged actuator can be used again.
Ì Release guard locking and use new actuator:
For evaluation with high coding level: teach-in
new actuator, see chapter 13.2. Teaching-in new
actuator (only for evaluation of the actuator with
a high coding level) on page 33.
For evaluation with low coding level: use a new
actuator with the same conguration.
Ì Perform a factory reset and teach-in the same
actuator or a new actuator, see chapter 13.1.
Conguring device and teaching-in actuator for
the rst time on page 32.
Environment errors
0x60
0x61
0x62
0x63
¨
orange/red
slowly
Supply voltage or device temperature too high.
Ì Observe the specied supply voltage (see chapter
16. Technical data on page 40)
Ì Observe the specied temperature range (see
chapter 16. Technical data on page 40).
Ì Check system conguration: cable length, number
of devices in the switch chain.
Supply voltage or device temperature too low.
Supply voltage or device temperature too high.
Supply voltage or device temperature too low.
