U2836 Operation Manual Chapter 3 Introduction to [MEAS DISP]
10
Chapter 3 Introduction to [MEAS
DISP]
3.1 <MEAS DISPLAY>

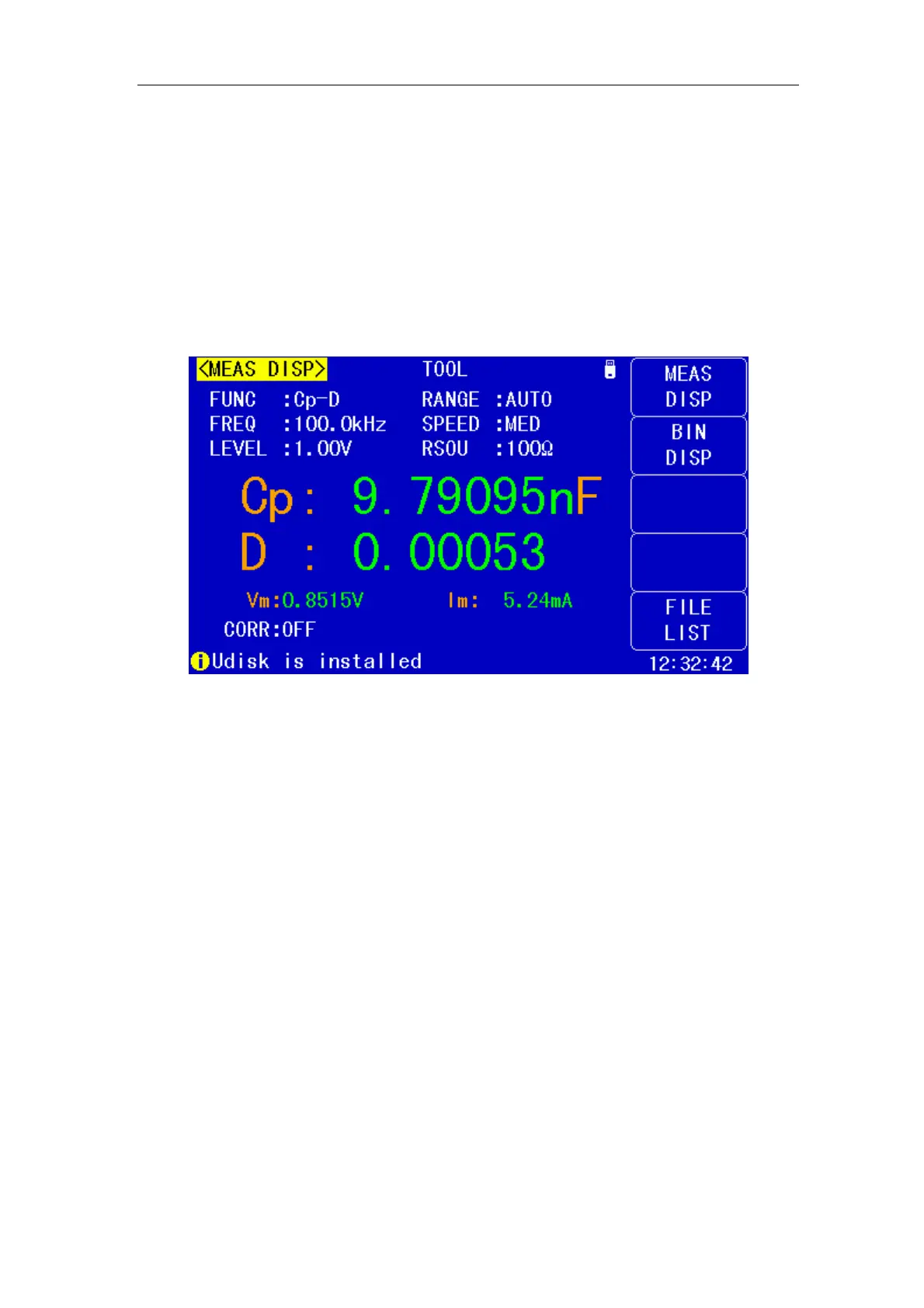

Press [MEAS], the <MEAS DISPLAY> page will be displayed on screen as shown in
the following figure.
On this page, the test result is displayed. The measurement control parameters
can be set in this page:
Test function (FUNC)
Test frequency (FREQ)
Test level (LEVEL)
Test range (RANGE )
Test speed (SPEED)
Output impedance(RSOU)
There are 6 zones in this page: FUN, FREQ, LEVEL, RANG, SPEED, RSOU. The
details will be discussed later.
The test result/ condition display zone shows the information about test condition.
These conditions can be set on <Meas Setup> page or <Correction> page.
Signal source voltage/ current monitor (Vm, Im)
Open, shortcorrection ON/OFF status (CORR)
