U2836 Operation Manual Chapter 3 Introduction to [MEAS DISP]
22
5) Move the cursor to the DEV A zone, the following soft keys will be displayed:
 OFF
 ΔABS
 Δ%
6) Use above soft keys to set the deviation mode of the primary parameter.
7) Move the cursor to the DEV B
zone, the following soft keys will be displayed.
 OFF
 ΔABS
 Δ%
8) Use above soft keys to set the deviation mode of the secondary parameter.
3.4 <CORRECTION>
Open and short correction can be used to eliminate the distribution
capacitance, spurious impedance and other measurement errors. U2836
provides two correction modes: the first one is executing open and short
correction on all frequency points through interpolation method; the other
one is executing open and short correction on the frequency point currently
set.

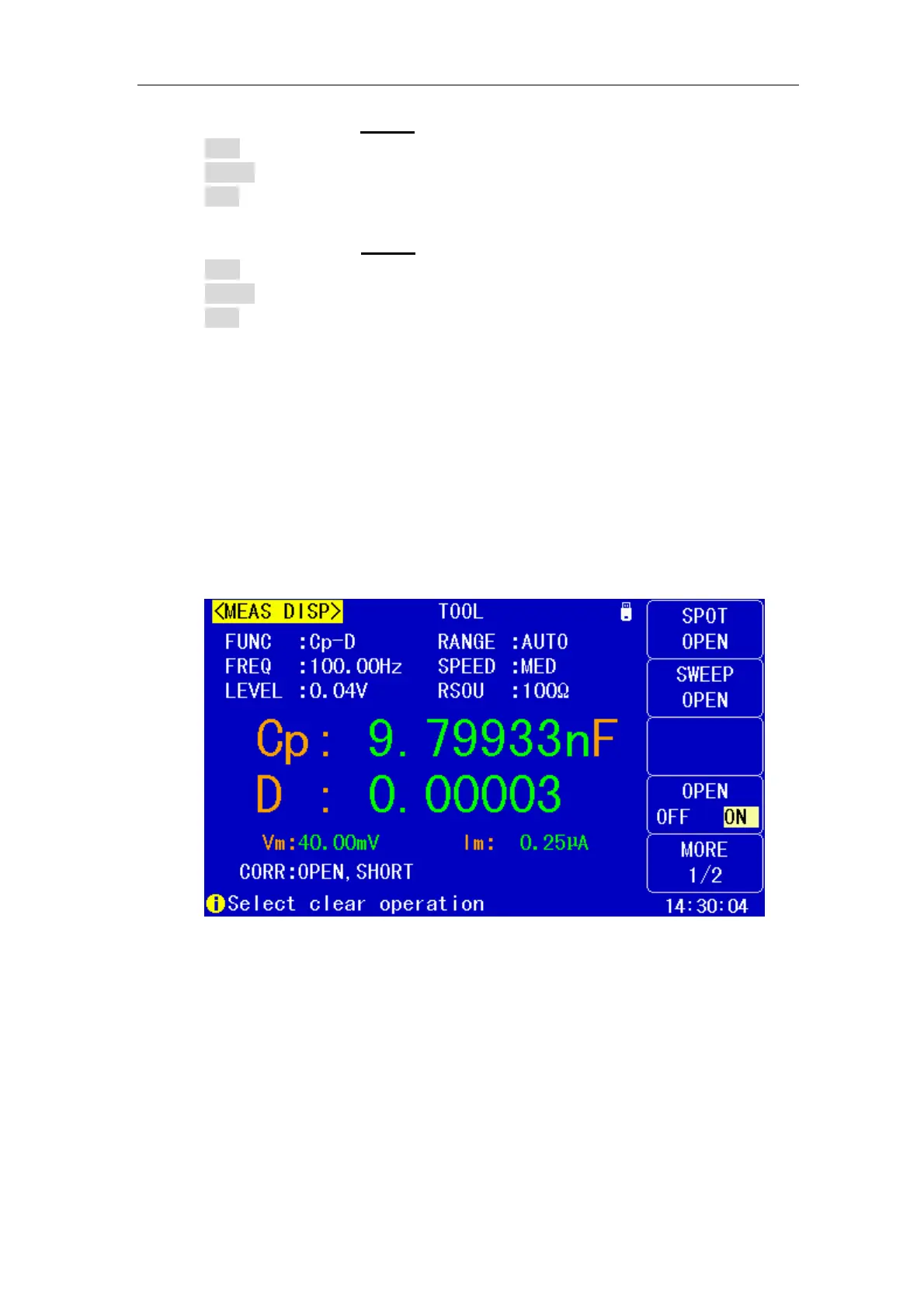

3.4.1 OPEN
The open correction function of U2836 can eliminate the error caused by the stray
admittance (G, B) parallel-connected with DUT, shown as figure 3-1.
