U2836 Operation Manual Chapter 3 Introduction to [MEAS DISP]
15

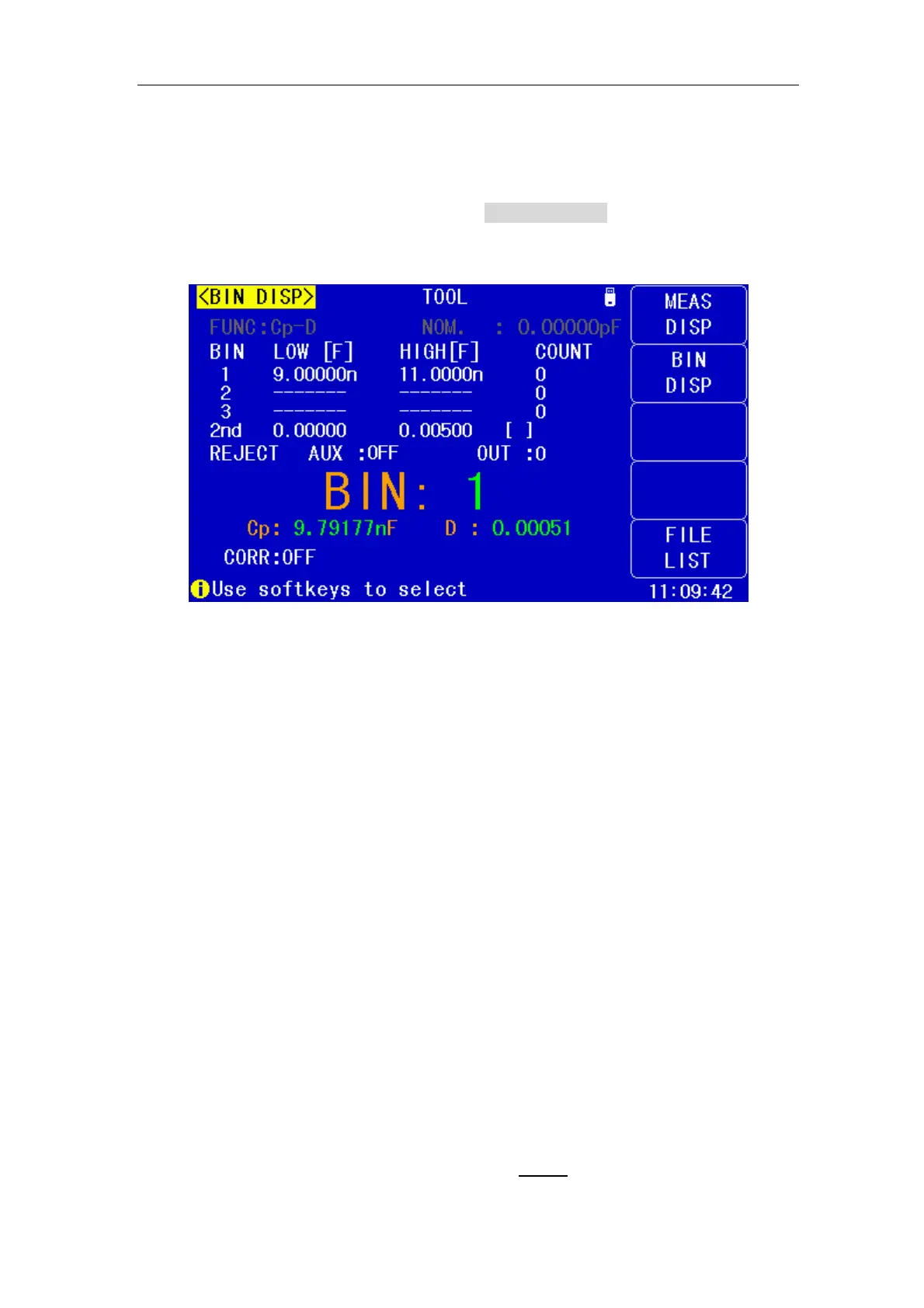

3.2 <BIN DISP>
Press [MEAS DISP] firstly and then the BIN DISPLAY. soft key to enter into
<BIN DISPLAY> display page. On this page, bin NO. is displayed in upper-case
character while the test result, in lower-case character.
The following control parameters can be set on <BIN DISPLAY>.
Compare function ON/OFF (COMP OFF ON)
Count function ON/OFF (COUNTE OFF ON)
Counter reset(RESET COUNT)
The following test result/ condition can be displayed in this page but cannot be set
in this page. Users can set them on the <LIMIT TABLE > page.
Nominal value (NOM)
Bin limit value (HIGH/ LOW)
3.2.1 Comparator function
U2836 has an inserted compare function which can divide DUT to up to 4 bins
(from BIN1 to BIN3 and BIN OUT). Users can set 3 pairs of primary parameter
limit and one pair of secondary bin limit. If the primary parameter of DUT is within
the range of the bin limit but the secondary parameter is outside of the bin limit,
the DUT will be sorted into the auxiliary bin. When U2836 has installed an
HANDLER interface, the compare result will be output into the automatic test
system and further realizing auto-sorting test. These limits can only be set on the
<LIMIT TABLE > page. Users can set the compare function to ON or OFF in the
TOOL zone.
Operation steps for compare function and bin count function:
1) On <BIN DISP> page,move the cursor to TOOL
, the following soft keys will
