Eureka E50 - Installing Batteries

11

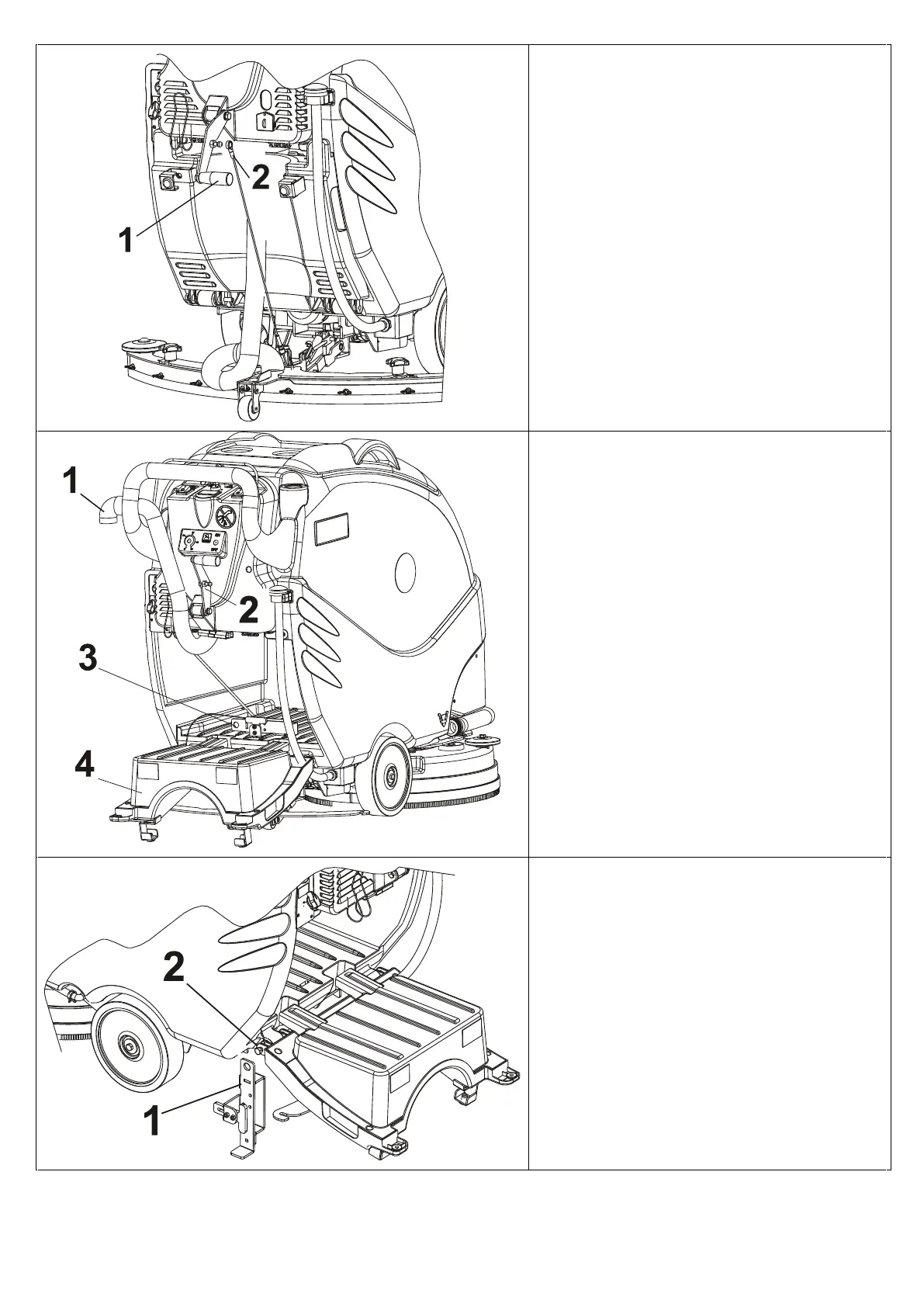

 Lower the squeegee lever pos. 1 and
disconnect the cable pos. 2.
 Disconnect the squeegee vacuum pipe
pos. 1 and put it as in the picture;
 Raise the squeegee lever pos. 2;
 Open the battery compartment door
pos. 4;
 Remove the locking part pos. 3.
 Insert the battery safety bracket POS.1,
keeping it in vertical position as shown
in the picture in the pin POS. 2. This
will be used as a support in the battery
installation phase.
