Eureka E50 - Page 11

12

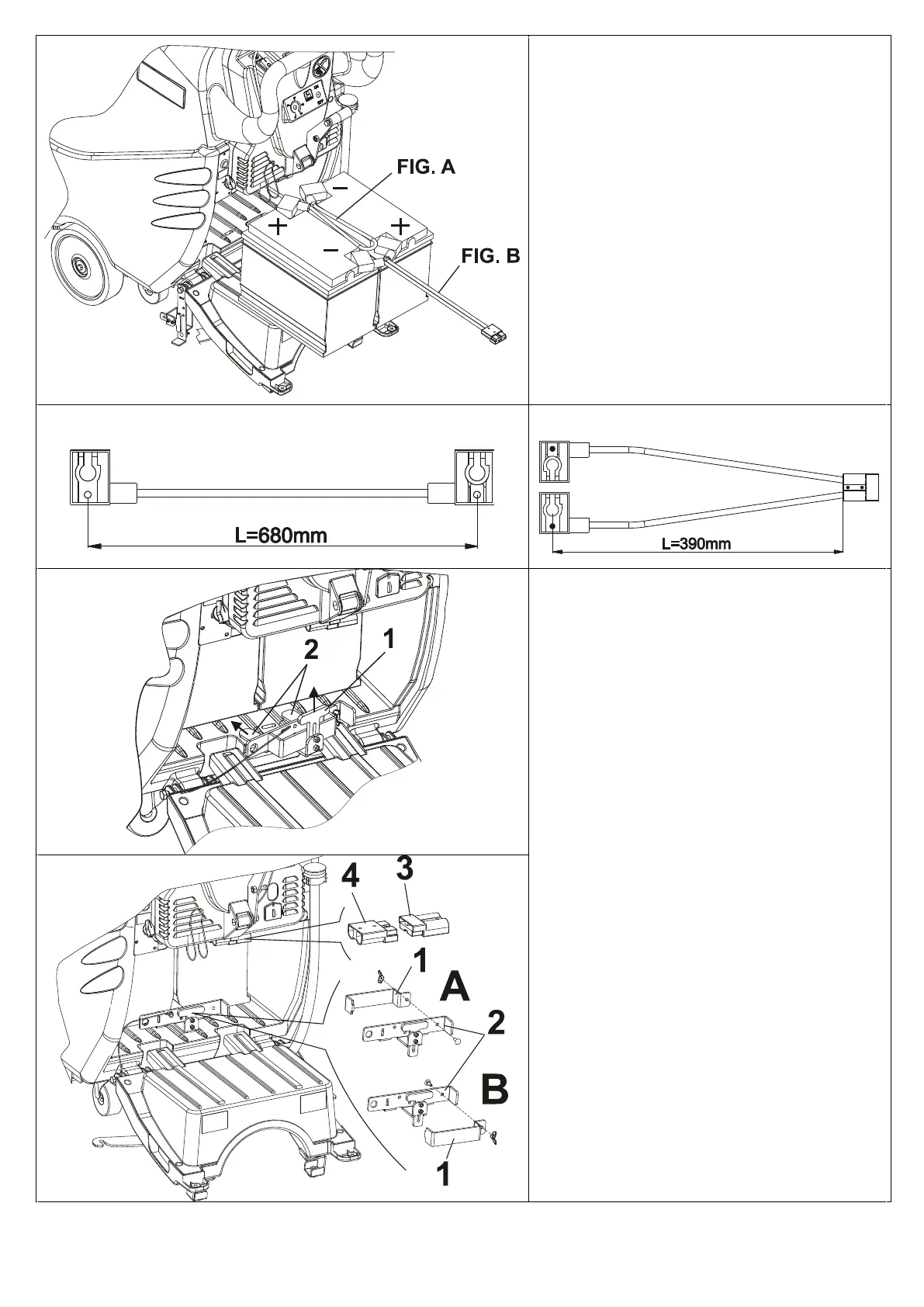

 Place the batteries in the battery tray
Make sure the poles are clean and apply
a thin layer of petroleum jelly.
BE VERY CAREFUL NOT TO
TURN OVER THE BATTERIES AS
IT COULD CAUSE ACID TO
LEAK AND DAMAGE THE
MACHINE;
 Connect the jumper (fig. C) and the
battery cable (fig. D) as indicated in
figure B, make sure to tighten the
screws on the terminal clamps and
place the terminal covers.
FIG. A
FIG.B
 Insert the battery lock and let the 2
taps slide (POS. 2) until the batteries.
During the insertion, keep the lock pull
upwards as shown in picture (POS. 1).
Once the battery lock is put, push it so
that it can get into the appropriate seat
on the tank.
ATTENTION: Mount the battery
spacer pos 1 on the safety bracket pos.
2 by one of the indicate ways A or B.
IMPORTANT: mount the spacer pos. 1
and be sure that the batteries are pushed
towards the front side of the machine to
give a max load on the brush.
 Connect the mobile connector (pos. 3) with
the fixed one (pos. 4).
