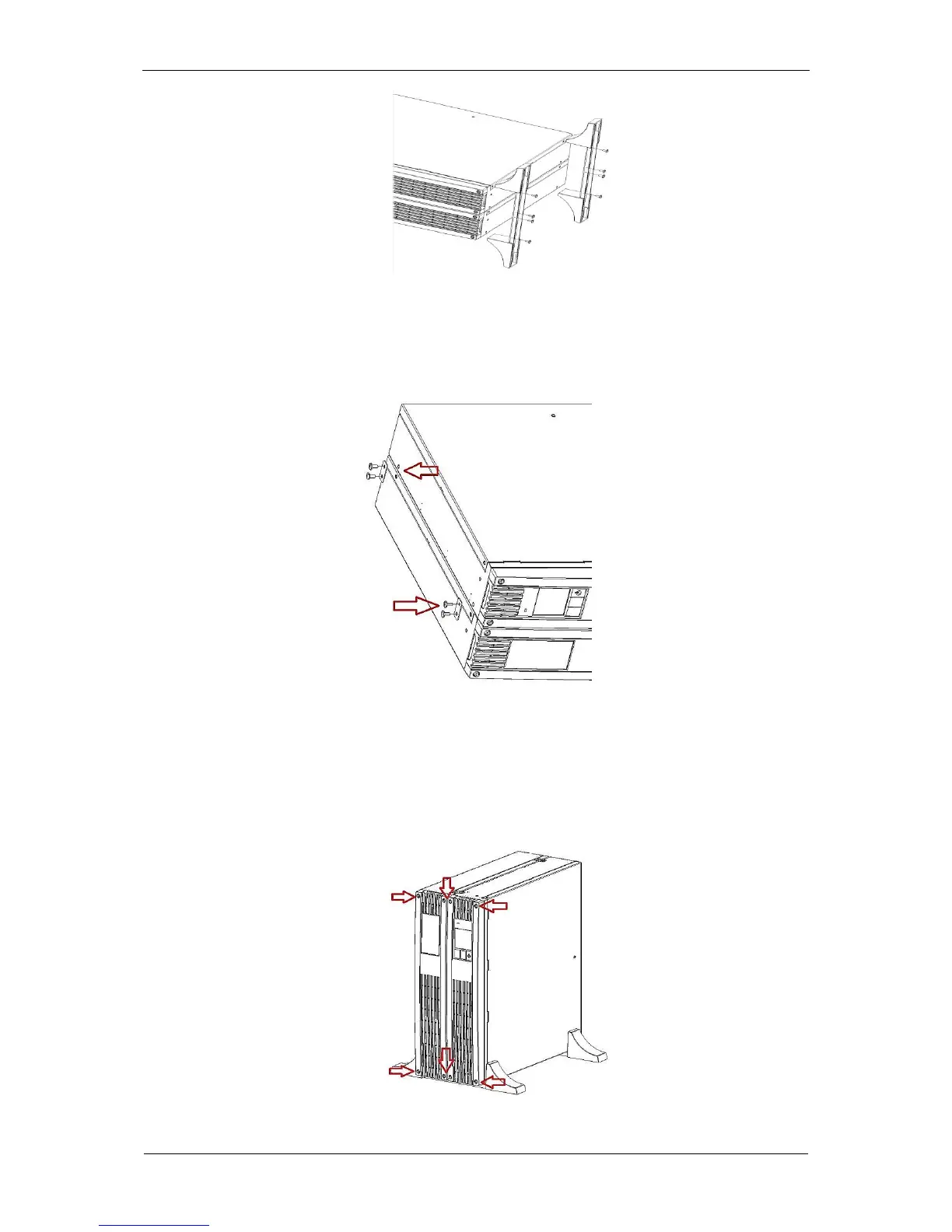

Fig. 18: Attaching the feet kit to the UPS and the module
6. Use bolts and metal brackets to attach the UPS to the external battery
module, stabilizing the devices (Fig. 19).
Fig. 19: Installation of brackets
7. Place the UPS and module assembly in vertical position.
8. Remove the front panels from the UPS and the module. To do this, unscrew 4
bolts from each panel (Fig. 20).
Fig. 20: Disassembling the front panels
