9. Disconnect the conductors from the front panel (Fig. 21).

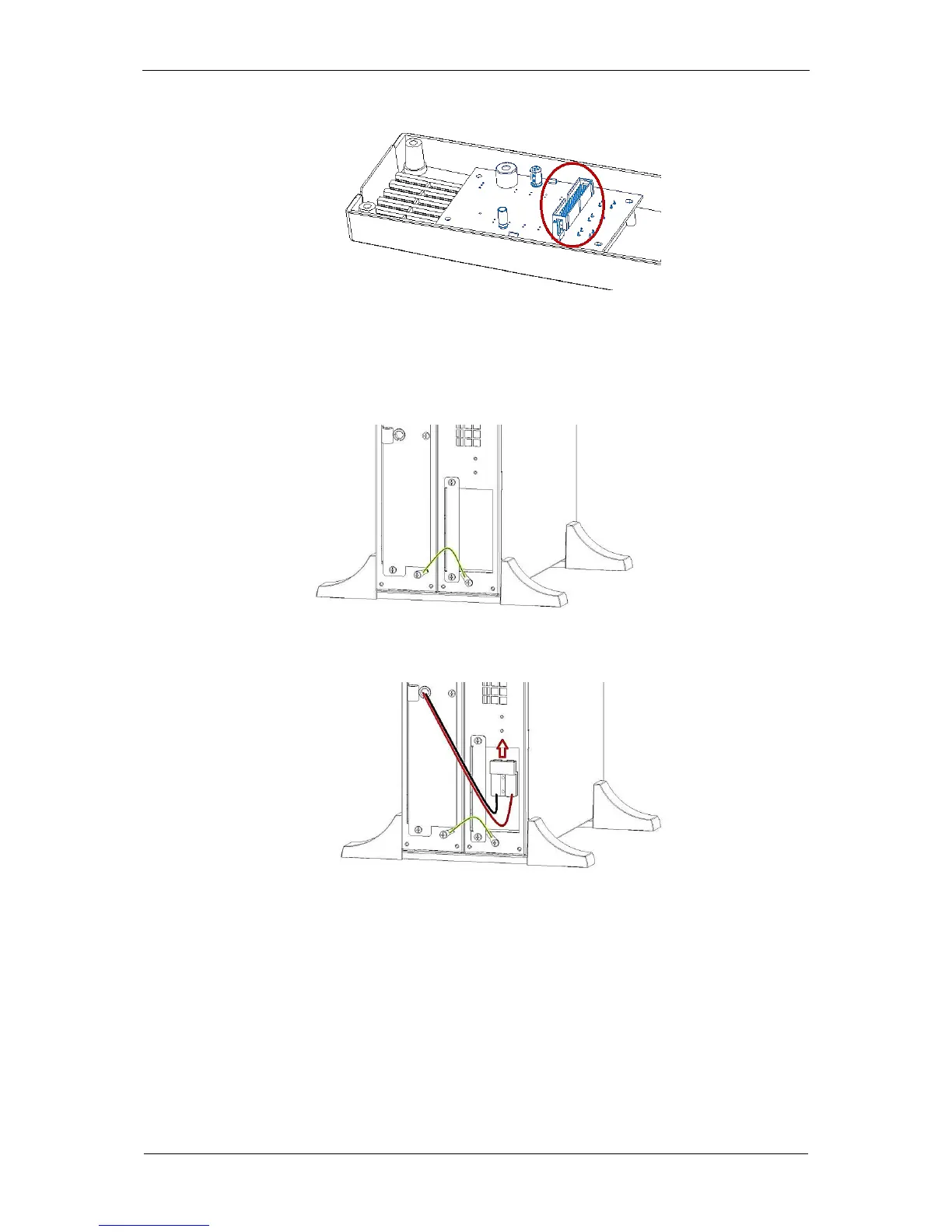

Fig. 21: Disconnecting the conductors
10. Connect the yellow and green earthing conductor between the battery module
and the UPS (Fig. 22).
Fig. 22: Connecting the PE conductor
11. Connect the battery module's terminal to the UPS battery terminal (Fig. 23).
Fig. 23: Connecting the battery module terminal to the UPS
12. Remove the caps (A) in the bottom right of the battery module's front panel
(Fig. 25) and the bottom left UPS front panel (Fig. 24). To remove the cap,
make a cut in it first and then break it away (Fig. 26).
