10.9 Router or LAN Connection
Straight Through Ethernet Cable Pin outs:

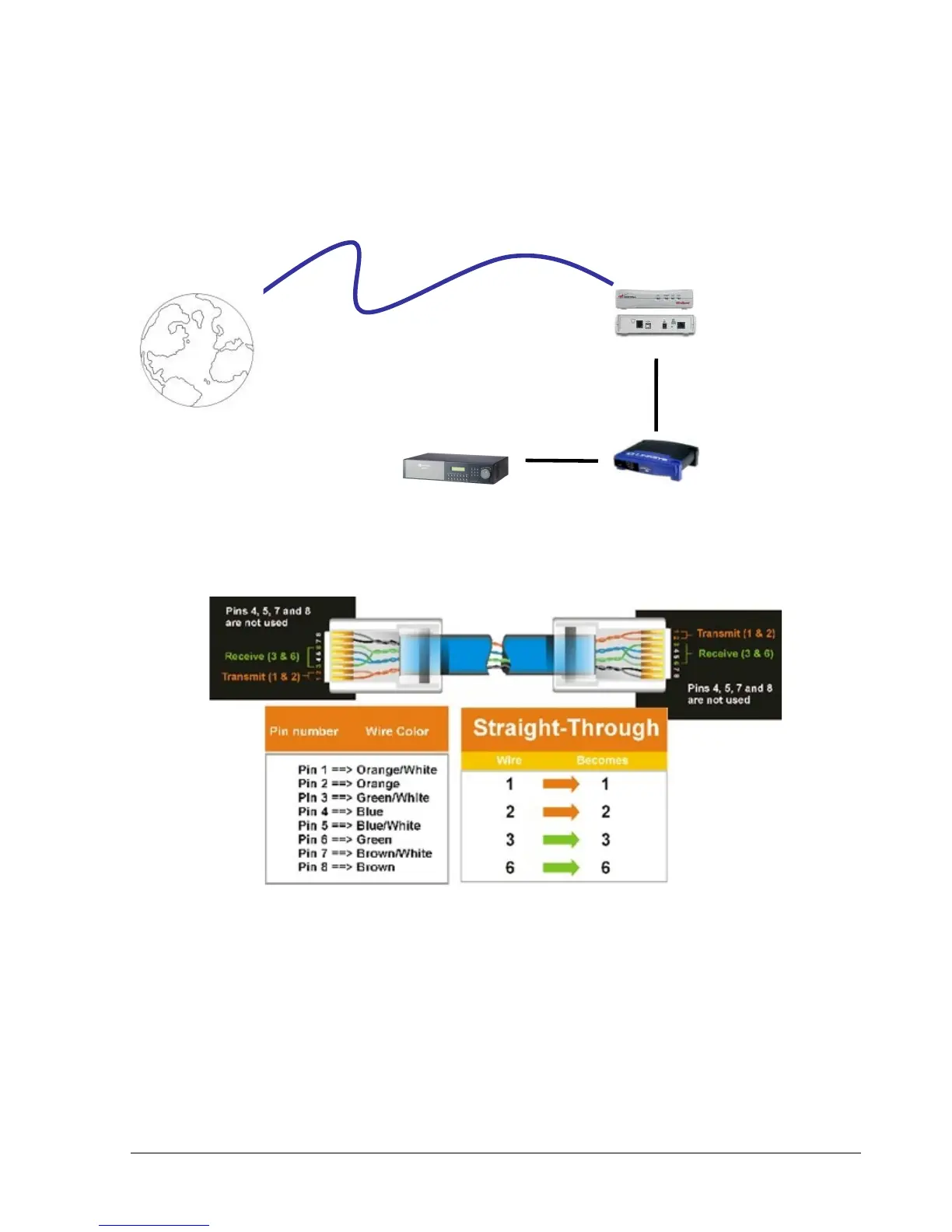

The Diagram below shows the pin configurations for a straight cable.
Diagram 10.3
Connection Procedure:
 The First step is to purchase or make a straight through cable. We recommend purchasing
one if you have never made a straight through cable. Please remember you can not use a
cross over network cable for this application
Cat 5
Straight Through Cable
Internet
Hi-speed modem
DVR
Router
