2.3 Speed Dome Installation
Speed dome or telemetry receiver pan/tilt/zoom control is available through web browser or the
optional PowerCon software if the DVR is connected to a network. Local telemetry control is
provided by the optional EKB 500 keyboard.
Supported protocols: EverFocus, Pelco-D, Pelco-P, ED2200/2250

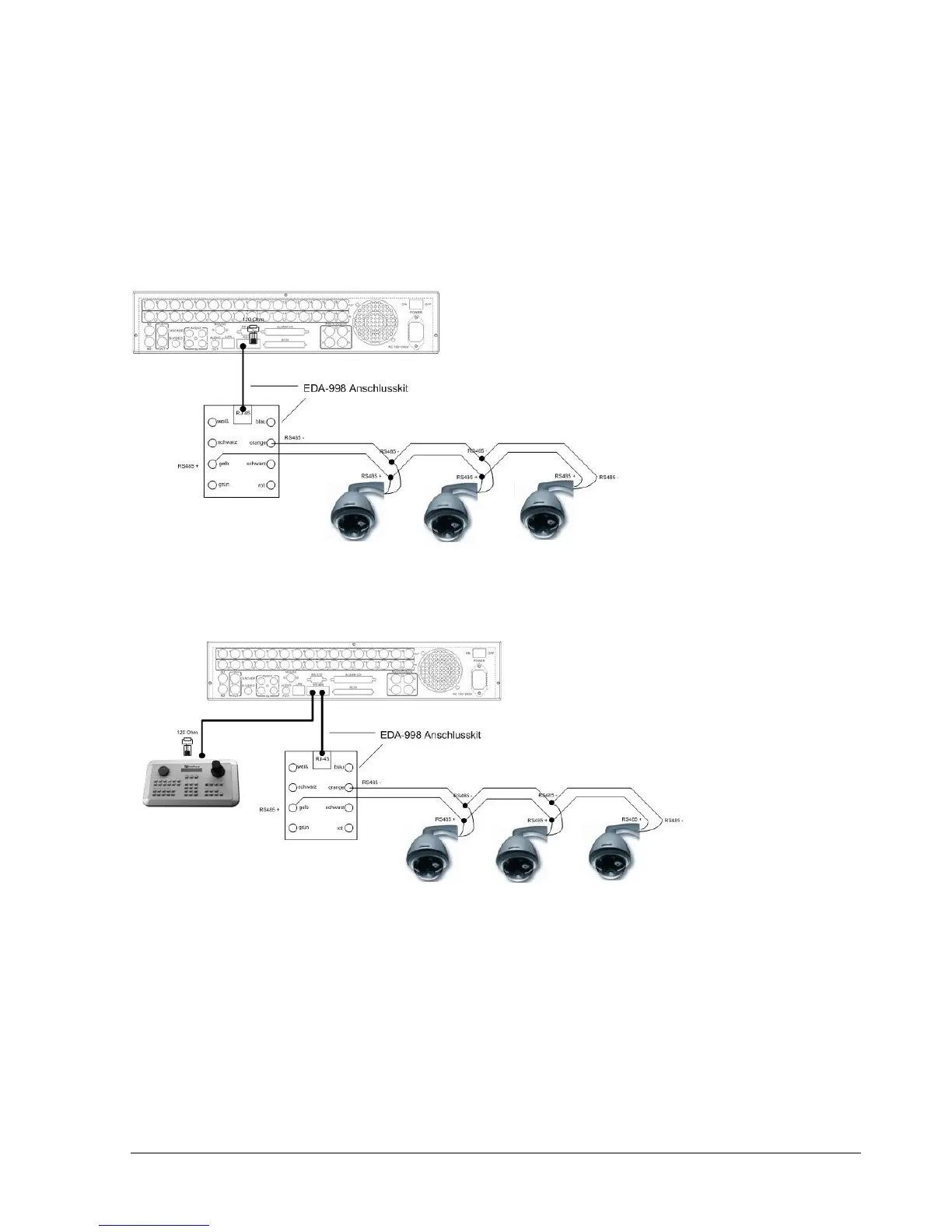

Diagram 2.6
Sample installation with 3 EPTZ1000 speed domes and EDA998
Diagram 2.7
Sample installation with 3 EPTZ1000 speed dome, EDA998 and local EKB 500 operation
Required DVR settings: RS-485 receiver address in CAMERA menu; RS-485 parameters and
protocol in CONTROL menu
