96
10.8 Direct High Speed Modem Connection

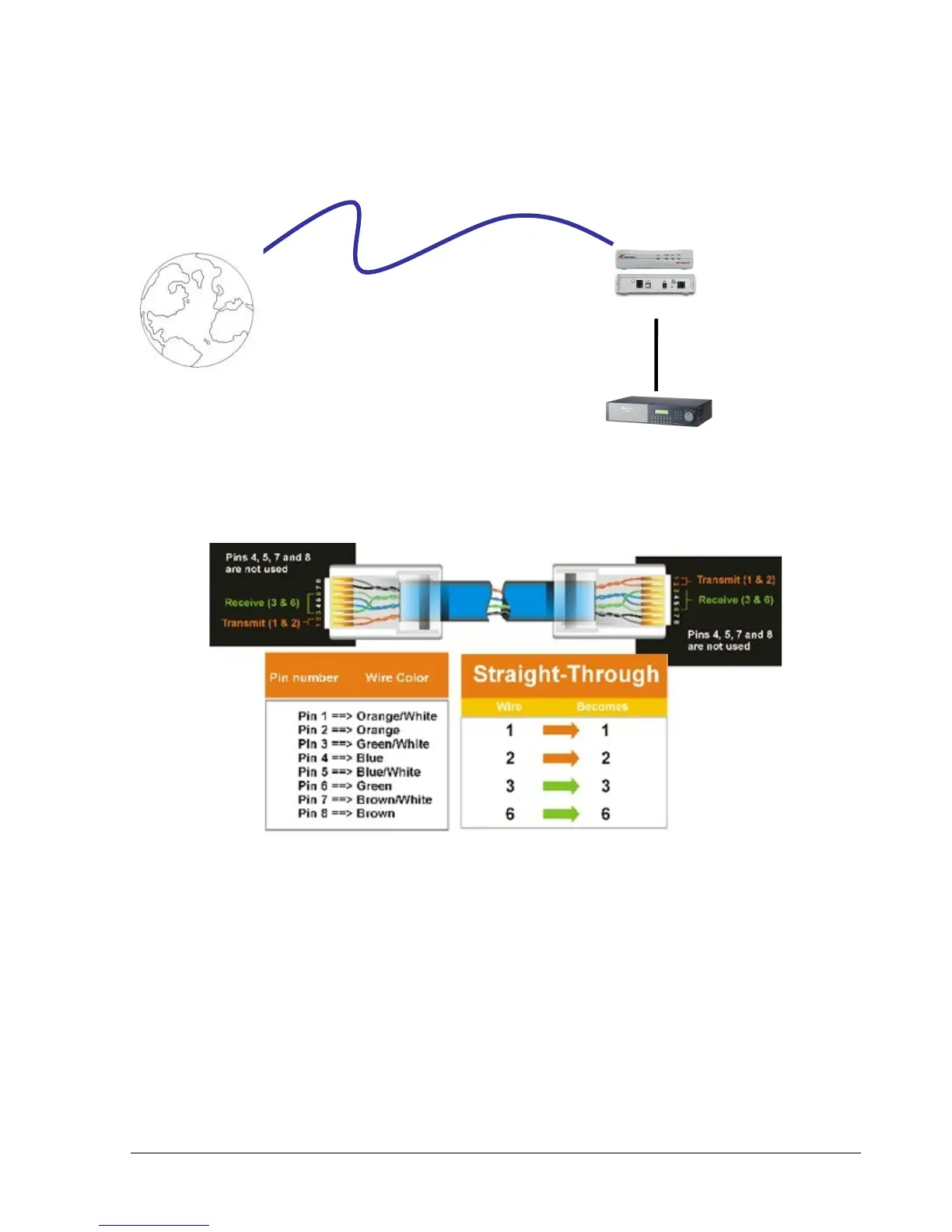

Straight Through Ethernet Cable Pin outs:
The Diagram below shows the pin configurations for a straight cable.
Diagram 10.2
Connection Procedure:
The First step is to purchase or make a straight through cable. We recommend purchasing
one if you have never made a straight through cable. Please remember you can not use a
cross over network cable for this application
Once you have a straight through cable plug one end into the LAN port on the back of
the recorder and the other into the high speed modem.
