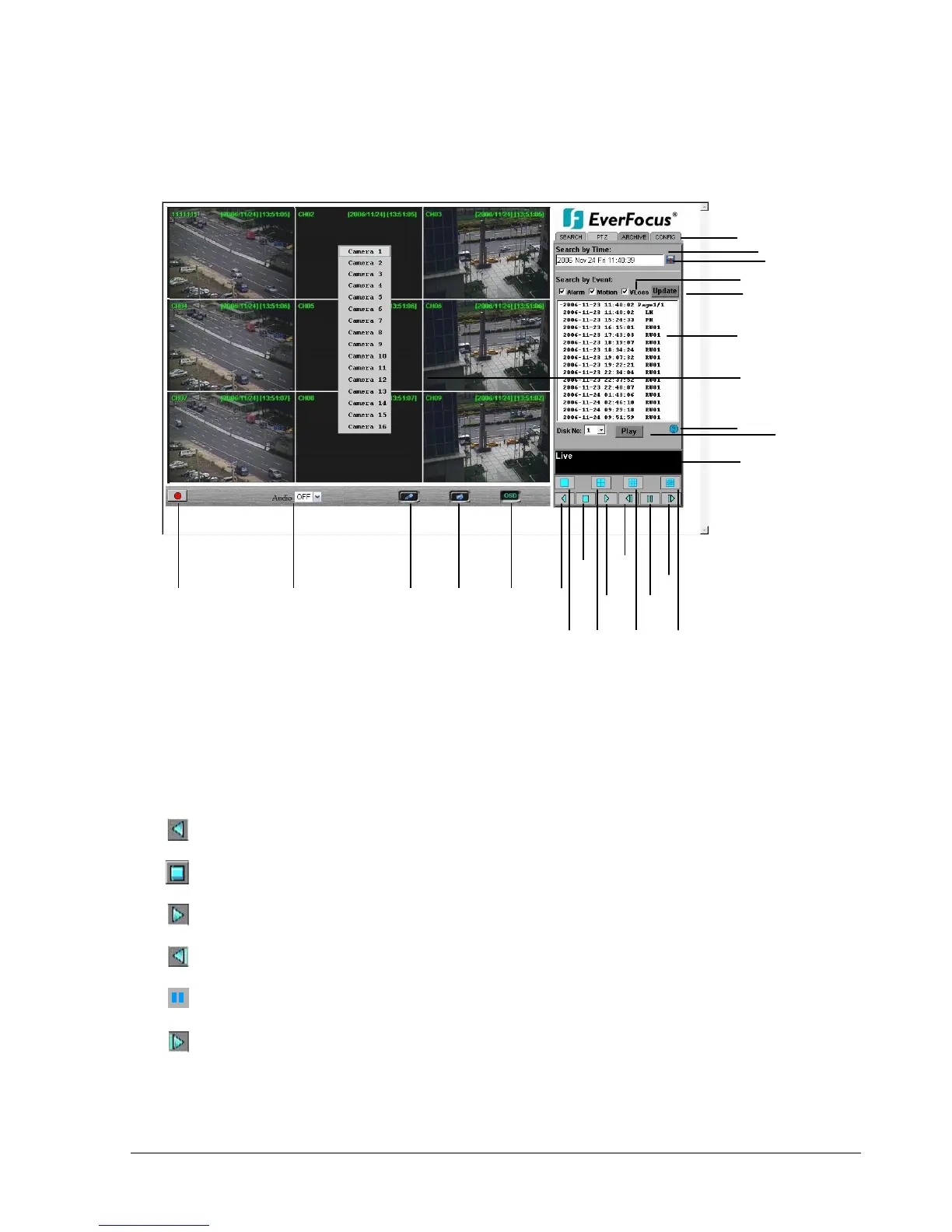

The above diagram is the main screen display.
The icons on the lower corner of the screen are mainly for control and configuration; those on
the right side are for status indication.
If any icon is grayed, it means that the specific function is not accessible in the current mode.
The followings are a brief description for each of the icons.
1. REV. PLAY: Reverse Video Playback.
2. STOP: Press this key to stop Playback and return to Live mode.
3. PLAY: Normal Video Playback.
4. STEP BACKWARD: Move one frame back while paused.
5. PAUSE: To pause the Video Playback display.
6. STEP FORWARD: Move one frame forward while paused.
