TR-4800E
Tally Router
Page - 2 Revision 1.1

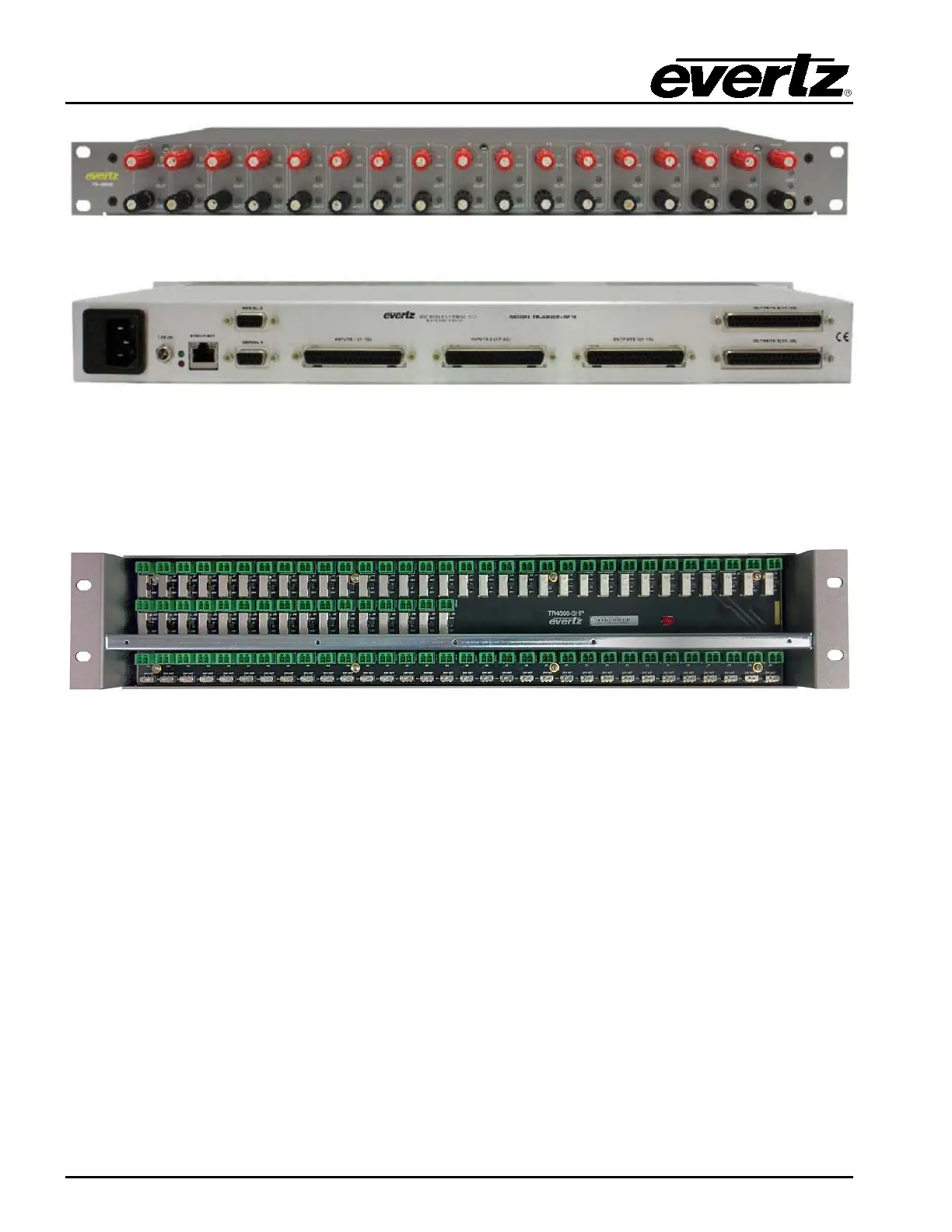

Figure 1-3: Front Panel of the TR-4800E with 16 Binding Posts (+BP16 option)
Figure 1-4: Rear Panel View of the TR-4800E with the +BP16 option
The +BP16 ordering option adds 16 configurable GPIO to the front panel on binding posts. The rear
wet power binding posts are also moved to the front panel. Each of the 16 GPIO are fully software-
configurable to be either inputs or outputs, wet or dry. Each of the 16 GPIO have three LEDs to
indicate their Input/Output, Wet/Dry, and On/Off status.
Figure 1-5: Optional TR4800-BHP Breakout Panel for Rear 48 GPO and 32 GPI
The optional TR4800BHP breakout panel can be ordered separately to break out the rear GPIO from
the Tally Router. It comes with five, 6 foot 37-pin D-Sub cables. Each of the 48 GPO and 32 GPI are
available on 2-pin removable terminal blocks. Furthermore, each GPO and GPI is switchable between
wet and dry mode. An LED indicator lights up when wet voltage is present. A cable strain relief bar is
provided to tie cables and prevent accidental disconnection.
Features & Benefits:
• 48 General Purpose Outputs, and 32 General Purpose Inputs on rear 37-pin D-Sub connectors.
• Rear binding posts for external wet power input.
• Wet power source selectable between external power and internal 5V and 12V power sources.
• The +BP16 option adds 16 configurable GPI/GPO to the front panel on binding posts.
• General Purpose Inputs are protected by optoisolators. Wide voltage range up to 24V.
• General Purpose Outputs are protected by polyfuses.
• Can configure General Purpose Inputs for edge, high, or low triggering.
• Can configure General Purpose Outputs as pulse or steady outputs.
• All General Purpose I/O can be setup as normal (normally-open) or inverted (normally-closed).
• Available TR4800-BHP bulkhead panel to breakout rear GPIO.
• Gigabit Ethernet & Serial ports for SNMP configuration and Quartz Protocol control.
• Included external redundant universal DC power supply.
