2-5-3 Output Format Setting
Select in the RS232 serial interface setting mode
to set the Output Format.
RS232 output format setting
LCD shows the last setting.
4 Default setting:
RS232 output format setting
Use ON/ZERO or UNITS keys
to select the
output format:
= Same data as the scale
= Gross weight
= Net weight
= Same data as the scale in
simple format
= Same gross data as the
scale in simple format
= Same net data as the scale
in simple format
= Hi/Lo/OK status + Same
data as the scale in simple
format
= Hi/Lo/OK status + Simple
gross weight
= Hi/Lo/OK status + Simple
net weight
= Tare value

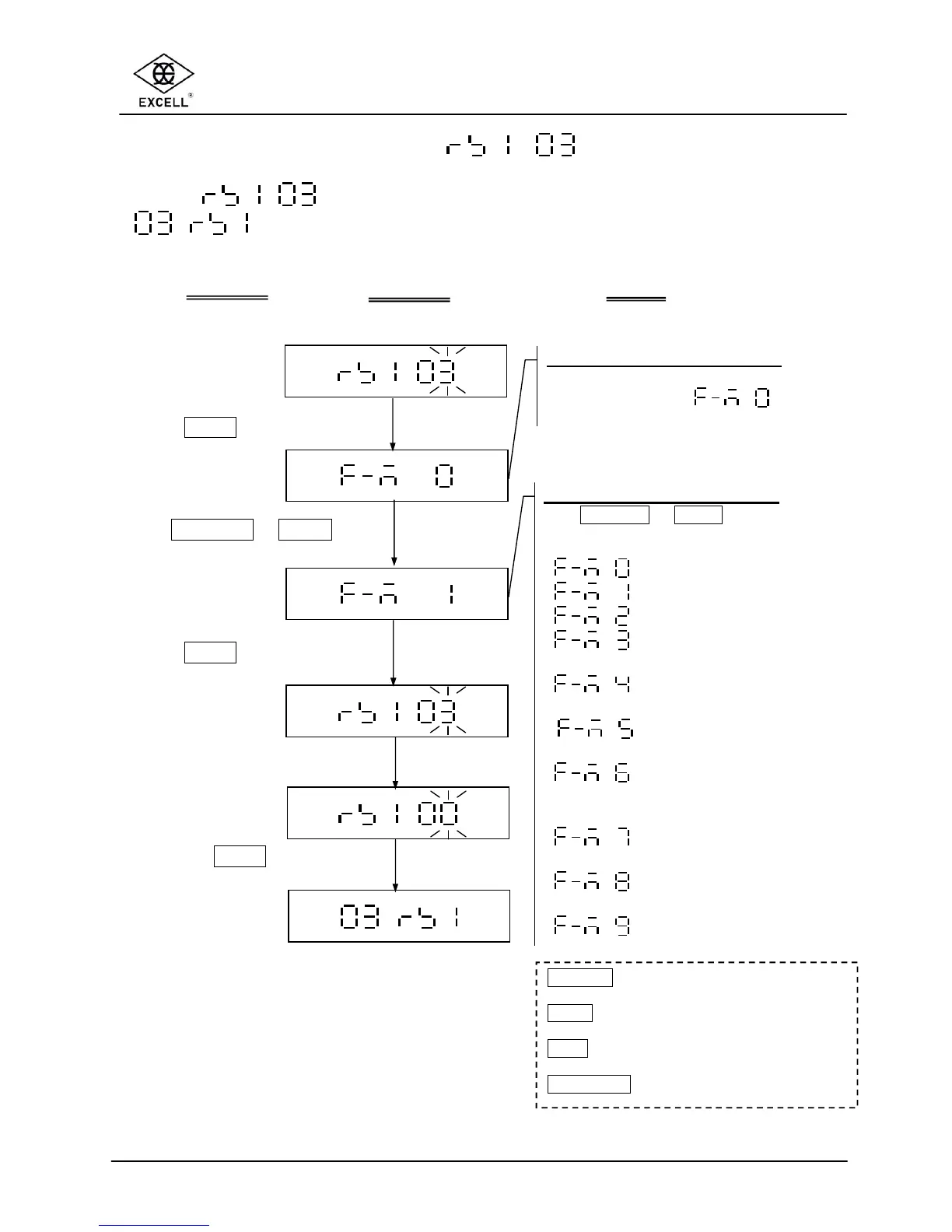

ACTIONS
DISPLAY
NOTE
Press TARE key
Use ON/ZERO or UNITS
key to select the output
format
Press TARE key
Key in the parameter “00”
Press the TARE key to
exit RS232
serial interface
settings
ON/ZERO key
⇒
Upward key (from 0 to 9)
UNITS key ⇒ Downward key (from 9 to 0)
TARE key ⇒ Move the cursor to right
NET/GROSS key ⇒ Move the cursor to left.
