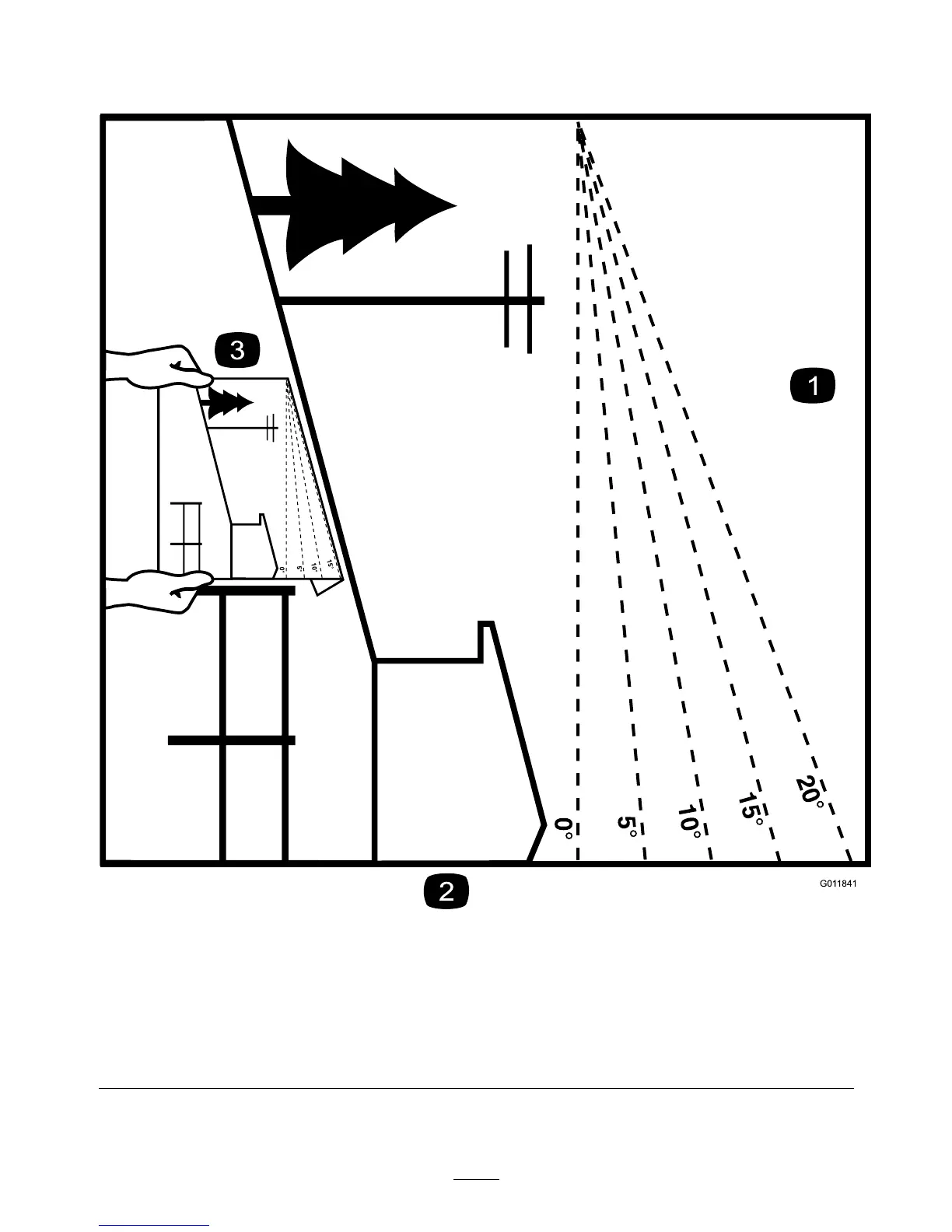

g011841
Figure56
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucanoperatethemachineonis15degrees.Usetheslopeindicatortodeterminethe
degreeofslopeofhillsbeforeoperating.DoNotoperatethismachineonaslopegreaterthan15degrees.Fold
alongtheappropriatelinetomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge.
75

Other manuals for Exmark Lazer Z Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Exmark Lazer Z Series and is the answer not in the manual?

Exmark Lazer Z Series Specifications

General IconGeneral
Engine BrandKawasaki, Kohler
Engine TypeAir-cooled, 4-stroke, gasoline
Cutting Width52 in, 60 in, 72 in
Deck ConstructionFabricated
Deck MaterialSteel
Drive TypeHydrostatic
TransmissionHydrostatic
Forward SpeedUp to 12.5 mph
Reverse SpeedUp to 5 mph
Tires (Rear)26 x 12-12 (depending on model)
Turning RadiusZero-turn
Cutting Height1.5-5 inches (adjustable)
SpeedUp to 12.5 mph
Warranty5-year / 1, 500-hour (Engine warranty varies by manufacturer)
