3.3 Machine Starting Sequence
The E-7 is equipped with safety shutdown control panel. With this type of system, built-in switches set to
factory preset limits, operate such that if during operation, either the oil pressure or engine temperature
reaches its preset limit, the system will experience a safety shutdown and turn the engine off.
Caution
If a safety shutdown occurs, the condition causing the engine to shut down must be corrected before
any attempt is made to restart it.
COLD START:- When starting the machine in temperatures of 0
o
C or below, run the
Screenbox for 15 minutes
to allow hydraulic oil to reach working temperature. DO NOT
feed material into machine during this time. DO NOT operate systems contrary to these
instructions
NOTE:- The machine MUST be set up on firm, level ground before being operated. Failure to
comply with this or any other instructions in this manual may cause damage to the machine and may
invalidate any warranty.

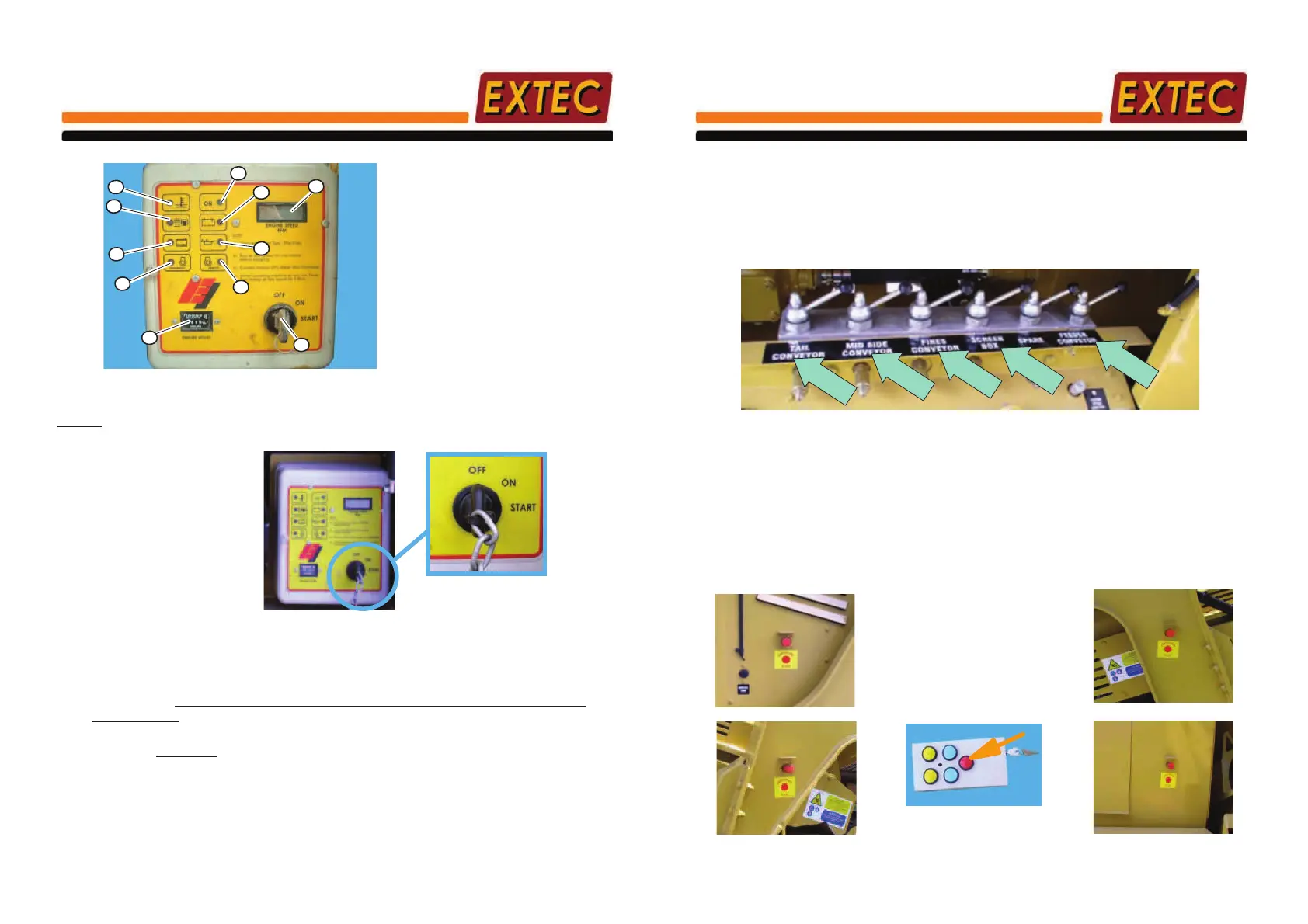

Electrical Control Box
1:- Water Temperature
2:- Water and Fuel Sensor
3:- Low Water Level
4:- Emergency Stop Light
5:- Engine On Light
6:- Battery Light
7:- Oil Light
8:- Remote Control Emergency Stop
9:- Engine Rev Counter
10:- Ignition Switch
11:- Hour Clock
1:- Insert iginition key into ignition switch and turn clockwise to position
indicated 'on' (as shown above)until lights stop flashing and the battery
and oil lights are only lit.
2:- Turn key further clockwise until the engine starts, then release key.
3:- If starting from cold , allow the engine to warm up for 5 minutes before operating
the machine. NOTE:- The engine speed is preset at the factory and must not be
tampered with.
Section 3 Page 5
E-7
3.4 Stopping The Machine
STOPPING MACHINE IN AN EMERGENCY
THE MACHINE CAN BE STOPPED IN AN EMERGENCY BY PRESSING ANY OF THE 4 EMERGENCY STOP
BUTTONS LOCATED ON BOTH SIDE S OF THE POWER PACK CANOPY AND AT THE FRONT OF THE CHASSIS
OR BY PRESSING THE RED BUTTON ON THE REMOTE CONTROL.
ENSURE THAT ALL PERSONNEL IN THE VICINITY OF THE MACHINE ARE FULLY AWARE OF THE LOCATION
OF THE EMERGENCY STOP BUTTONS.
To stop the machine, it is ESSENTIAL that the following steps be followed - in order to prevent
damage to the machine:-
1) Stop feeding material into the Feeder.
2) Wait for all material to fully discharge from Feeder, Screenbox and all Conveyors.
3) Shut down the systems in the order shown below using the 6 station control block located in
the Power Pack:
L/H SIDE OF POWER PACK
1
2
3
4
5
Machine Shut Down Sequence
4) Wait for each system to come to a complete stop.
5) Push throttle lever fully back and allow engine to idle briefly.
6) Stop engine by turning ignition key to 'off' position.
NOTE
Emergency Stop Switches should
only be used in an emergency
situation not for normal stopping as
frequent use will cause damage to
hydraulic components.
Emergency Stop Switches must be
reset before the machine can be
restarted.
FRONT R/H SIDE OF CHASSIS
R/H SIDE OF POWER PACK
FRONT L/H SIDE OF CHASSIS
Section 3 Page 6
