Extec E-7 - Apron Feeder

E-7
Preparing The Machine For Operation

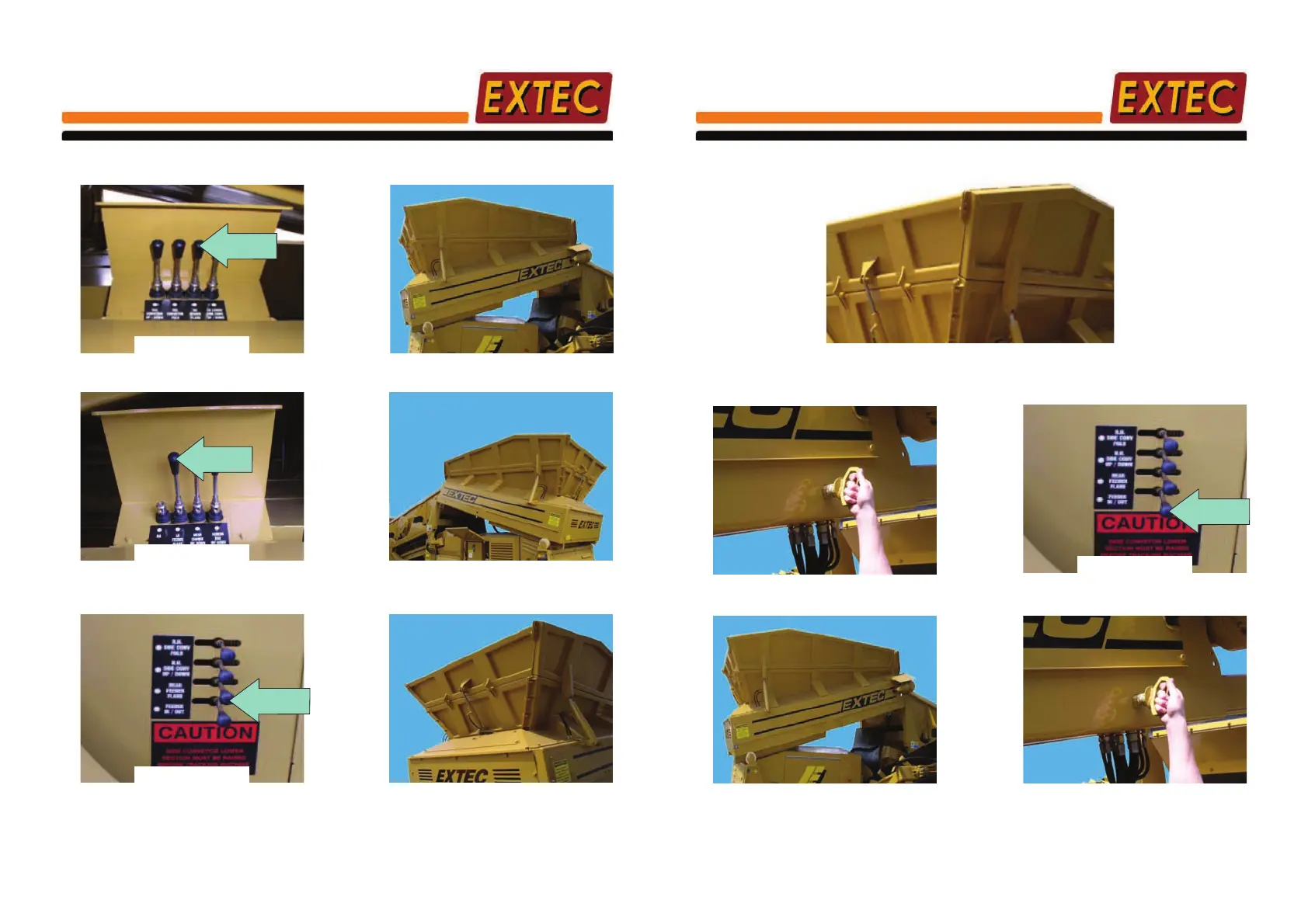

Apron Feeder
1. Activate 'R/H Flare' lever
R/H Flare raised
3. Activate 'Rear Flare' lever
Rear Flare raised
2. Activate 'L/H Flare' lever L/H Flare raised
R/H Feeder
Flare
L/H Feeder
Flare
Rear Feeder
Flare
R/H Side of Chassis
L/H Side of Chassis
R/H Side of Power Pack
Section 3 Page 15
E-7
Preparing The Machine For Operation
Apron Feeder
4. Bolt Rear flare to both Side flares and tighten
5. Remove locking pins
6. Activate 'Feeder In/Out' lever
Feeder fully in
7. Replace locking pins
Feeder In/Out
R/H Side of Power Pack
Section 3 Page 16
