E-7

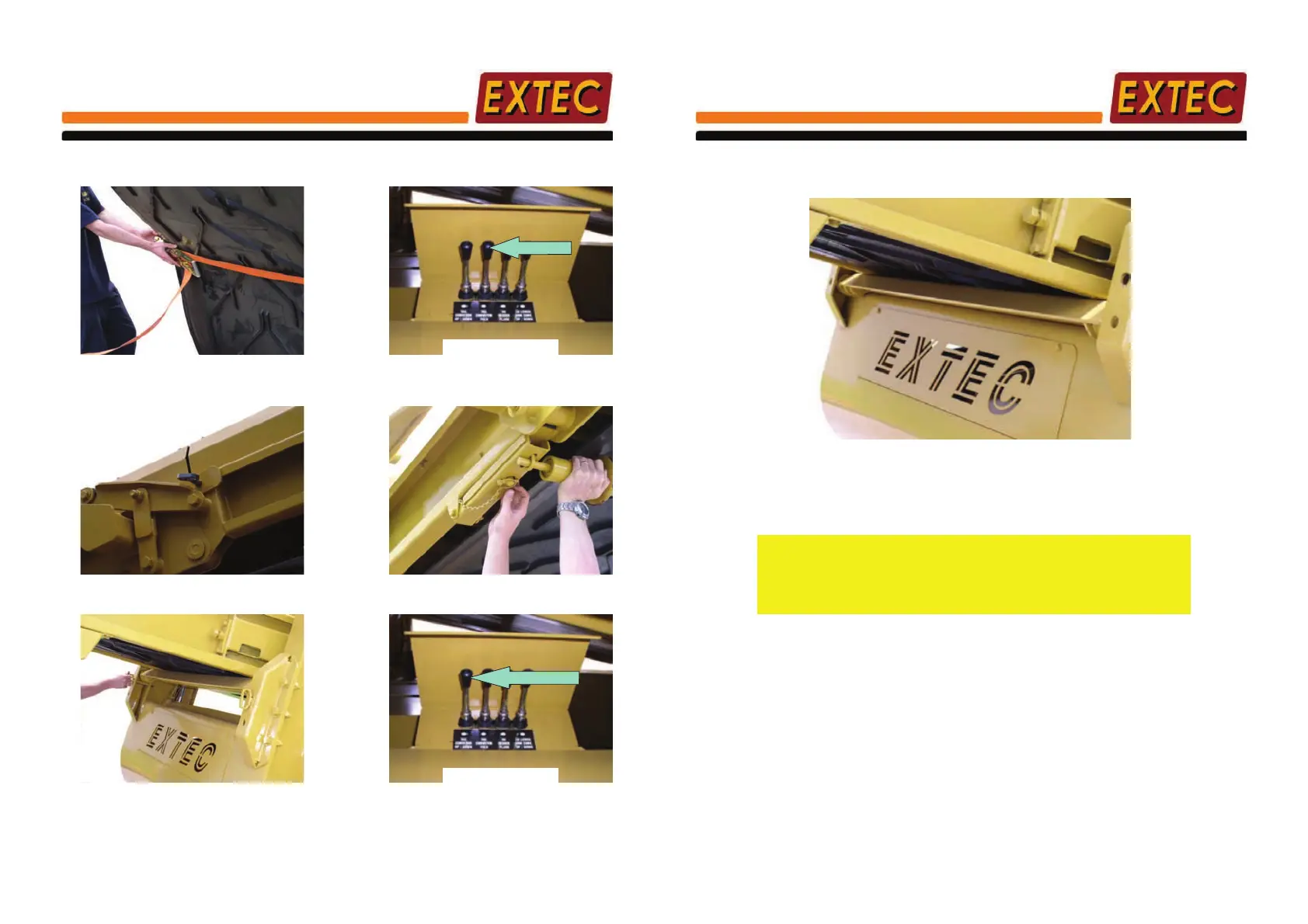

Preparing The Machine For Operation
Opening Tail Conveyor
1. Remove Tail Conveyor ratchet
strap
2. Activate 'Tail Conveyor Fold' lever
3. Insert Pivot Locking Pins
4. Swing Return roller into
place and insert latch pins
5. Remove pins from underside of
Tail Conveyor
6. Activate 'Tail Conveyor Up/Down'
lever to lower Tail Conveyor onto
Chassis
Tail Conv. Fold
Tail Conv. Up/Down
R/H Side of Chassis
R/H Side of Chassis
Section 3 Page 13
E-7
Preparing The Machine For Operation
Opening Tail Conveyor
Tail Conveyor lowered onto Chassis
NOTE:-By lowering the tail Conveyor onto the Chassis this
will allow you to adjust the Screenbox more easily as
the Screenbox nose cone will collide with the Tail
Conveyor if left in its raised position
Section 3 Page 14
