E-7

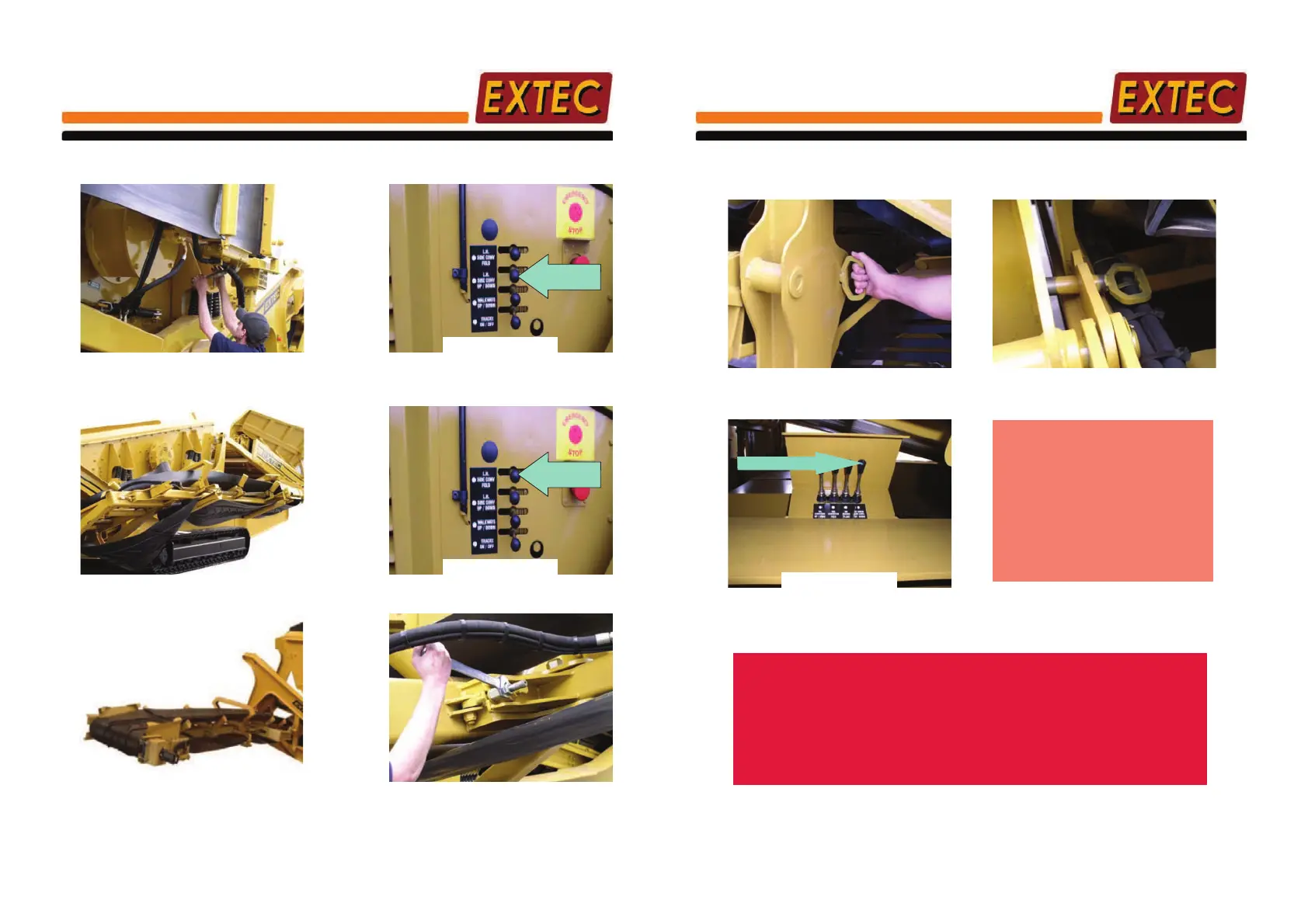

Preparing The Machine For Operation
Opening Side Conveyors
5. Remove L/H Side Conveyor Link Arm
6. Activate 'L/H Side Conveyor Up/Down'
lever to lower conveyor away from side
of machine
L/H Side Conveyor folded down
7. Activate 'L/H Side Conveyor Fold' lever
L/H Side Conveyor folded out 8. Locate Pivot lock and tighten thoroughly
L/H Side Conv.
Up/Down
L/H Side of Power Pack
L/H Side Conv.
Fold
L/H Side of Power Pack
Section 3 Page 11
E-7
Preparing The Machine For Operation
Opening Side Conveyors
9. Remove Mid-Grade Side Conveyor
bottom section locking pins.
10. Activate 'L/H Lower Side Conv' lever to
lower the Mid-Grade Side Conveyor
bottom section.
11. Replace bottom section
locking pins.
WARNING!! NEVER TRY TO OPERATE THE MID-GRADE
SIDE CONVEYOR WHEN IT IS IN THE TRANSPORT
POSITION, AS THIS WILL CAUSE DAMAGE TO THE
CONVEYOR BELT.
L/H Lower Side Conv.
R/H Side of Chassis
Section 3 Page 12
