3.6 Preparing The Machine For Operation

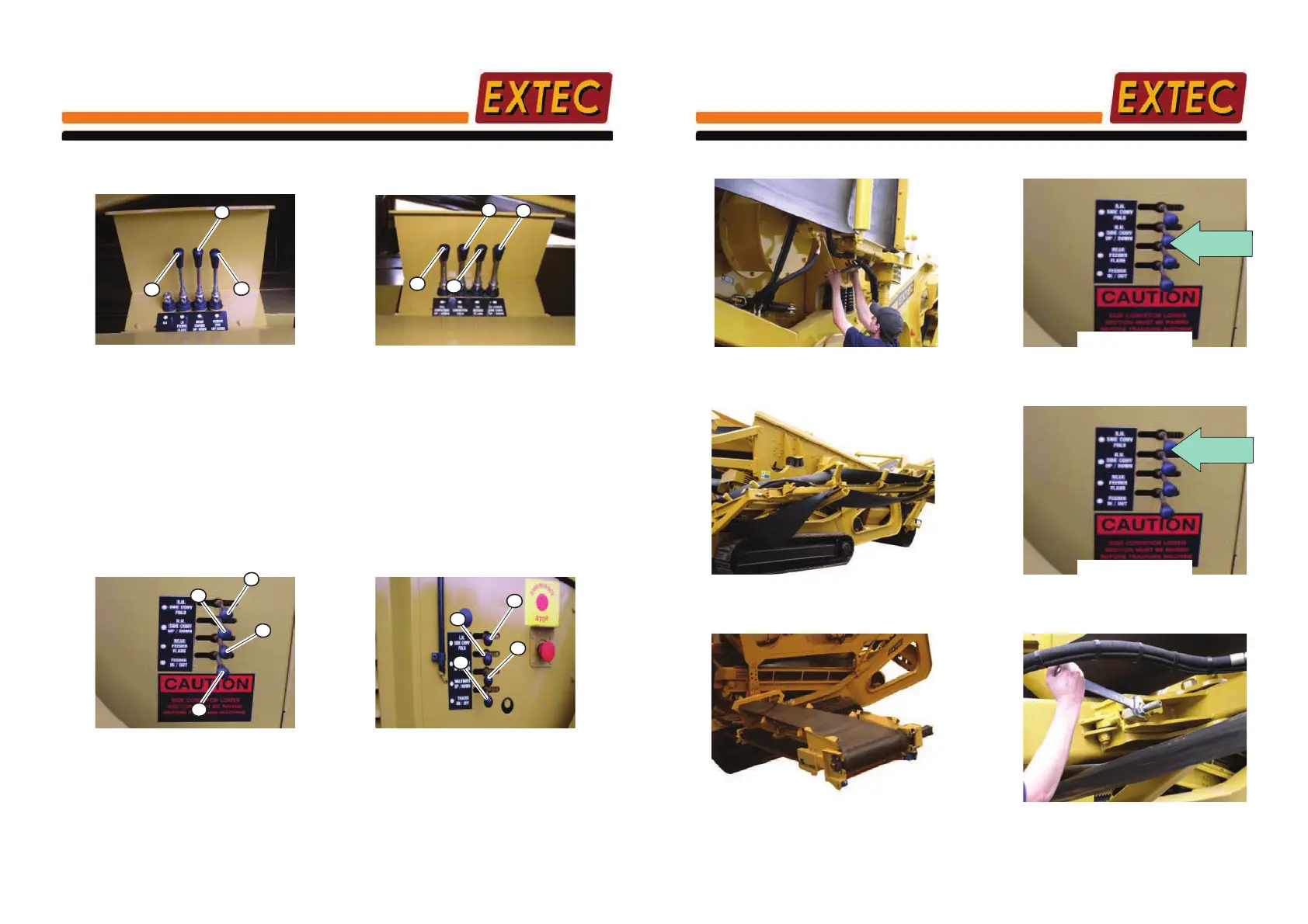

MACHINE CONTROLS
1
2
3
8
9
4
5
7
12
6
15
11
14
10
1:- L/H Feeder Flare
2:- Mesh Change Lift
3:- Screenbox Height
Adjust
4:-
Tail Conveyor Height
Adjust
5:- Tail Conveyor Fold
11:-Feeder In/Out
12:-Mid-Grade Side
Conveyor Side Fold
13:-Mid-Grade Side
Conveyor Up/Down
14:-Walkways Up/Down
15:-Tracks On/Off
6:- R/H Feeder Flare
7:- Mid-Grade Side
Conveyor Bottom
8:- Fines Side Conveyor
Side Fold
9:- Fines Side Conveyor
Up/Down
10:- Rear Feeder Flare
L/H CHASSIS SPOOL VALVE
R/H CHASSIS SPOOL VALVE
R/H POWER PACK SPOOL
VALVE
L/H POWER PACK SPOOL
VALVE
13
Section 3 Page 9
E-7
Preparing The Machine For Operation
1. Remove R/H Side Conveyor Link Arm
2. Activate 'R/H Side Conveyor
Middle' lever to lower Conveyor away
from side of machine
3. Activate 'R/H Side Conveyor Top' lever
R/H Side Conveyor folded down
R/H Side Conveyor Folded out
Opening Side Conveyors
4. Locate Pivot lock and tighten thoroughly
R/H Side Conv.
Up/Down
R/H Side Conv.
Fold
R/H Side of Power Pack
R/H Side of Power Pack
