E-7
FINES COLLECTOR CONVEYOR ASSEMBLY
ITEM No. PART No. PART DESCRIPTION QTY
1 D11230000 HEAD DRUM PLATE R/H SIDE 1
2 D11220000 HEAD DRUM PLATE L/H SIDE 1
3 D11250000 FEEDBOOT L/H SIDE PLATE 1
4 D11260000 FEEDBOOT R/H SIDE PLATE 1
5 D11300000 FEEDBOOT R/H SIDE SUPPORT 1
6 D11290000 FEEDBOOT L/H SIDE SUPPORT 1
7 CBHD1200X9530 FINES COLLECTOR CONVEYOR BELT 1
8 RU5501 ROSTA TENSIONER 2
9 D11360000 16X5 SCREEN FINES CONVEYOR HEAD DRUM SCRAPER 1
10 D11370000 16X5 SCREEN FINES CONVEYOR HEAD DRUM SCRAPER CLAMP 1
11 PY1015 FINES CONVEYOR HEAD DRUM SRAPER BLADE 1
12 D11390000 OMT MOTOR MOUNTING BRACET 1
13 HM1038 FINES COLLECTOR CONVEYOR MOTOR 1
14 D11270000 16X5 SCREEN FINES CONVEYOR FEEDBOOT BACK PANEL 1
15 D11420000 16X5 SCREEN FINES CONVEYOR DRUM SEAL RH 1
16 D11430000 16X5 SCREEN FINES CONVEYOR DRUM SEAL LH 1
17 BT2004 FLANGE BEARING 2
18 T8850000 HEAD DRUM 1
19 CR1040 CONVEYOR DISC ROLLER 2
20 CR1024 TRACKING ROLLERS 2
21 D11350000 16X5 SCREEN FINES CONVEYOR TAIL DRUM COVER SIDE GUARD 2
22 E0150000 TAIL DRUM BEARING SLIDER 2
23 PN1031 BEARING ADJUSTER BOLT 2
24 D11330000 16X5 SCREEN FINES CONVEYOR TAIL DRUM COVER 1
25 D11340000 16X5 SCREEN FINES CONVEYOR TAIL DRUM END GUARD 1
26 BT1003 PLUMMER BLOCK BEARING 2
27 C0090000 TAIL DRUM 1
28 CR1005 BED ROLLER 10
29 D11440000 FINES CONVEYOR BTM SECTION R/H SIDE 1
30 D11450000 FINES CONVEYOR BTM SECTION L/H SIDE 1
31 D11460000 FINES CONVEYOR TOP SECTION R/H SIDE 1
32 D11470000 FINES CONVEYOR TOP SECTION L/H SIDE 1
33 D11310000 16X5 SCREEN FINES CONVEYOR SIDE SUPPORT GUARD 6
34 D11320000 16X5 SCREEN FINES CONVEYOR SIDE SUPPORT ENDGUARD 4
35 D11400000 FINES CONVEYOR SCRAPER BRACKET R/H SIDE 1
36 D11410000 FINES CONVEYOR SCRAPER BRACKET L/H SIDE 1
Appendix 2 Page42

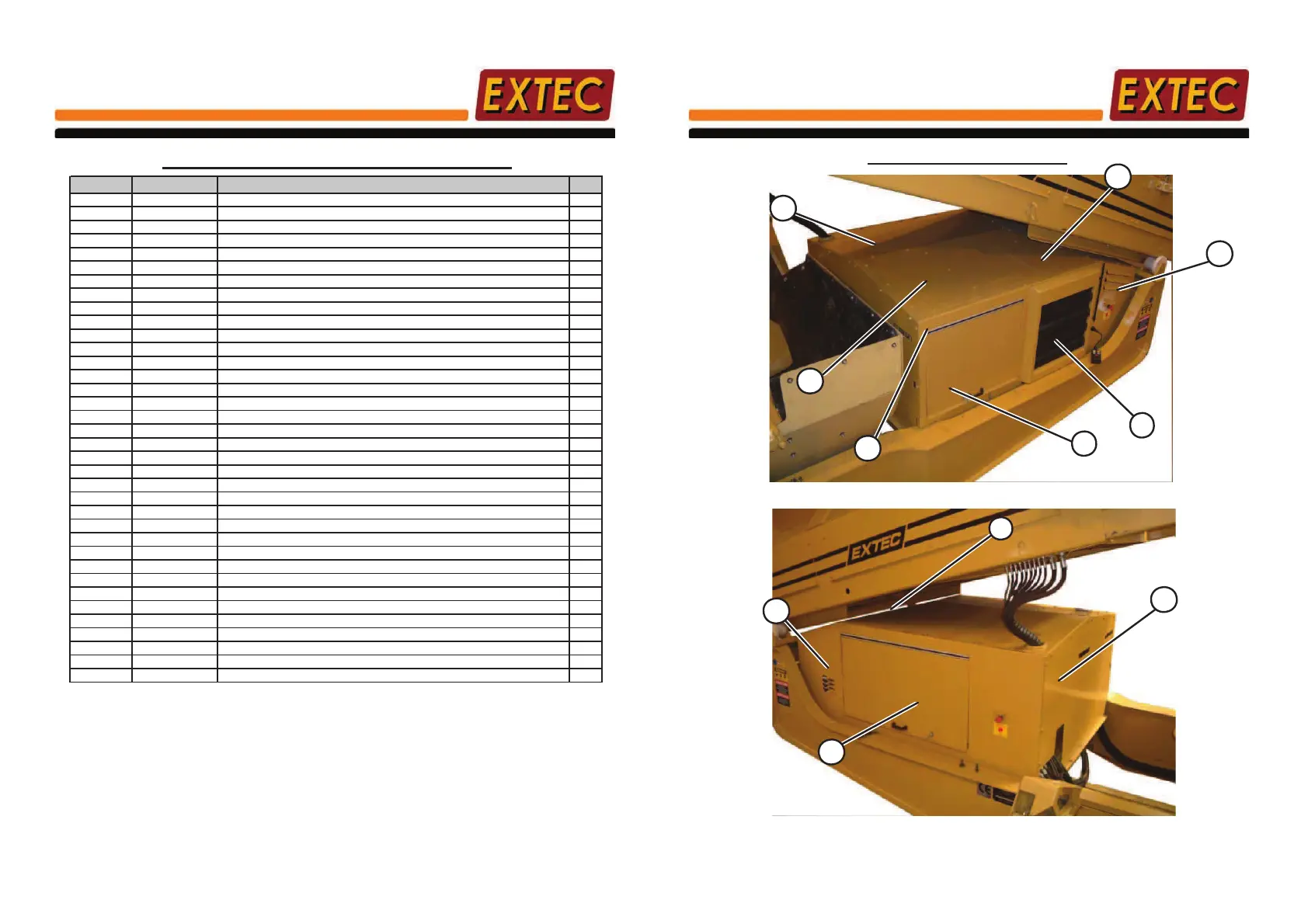

E-7
POWERPACK ASSEMBLY
VIEW ON L/H SIDE OF POWER PACK
VIEW ON R/H SIDE OF POWER PACK
7
9
5
1
4
10
2
3
6
8
11
Appendix 2 Page43
