E-7

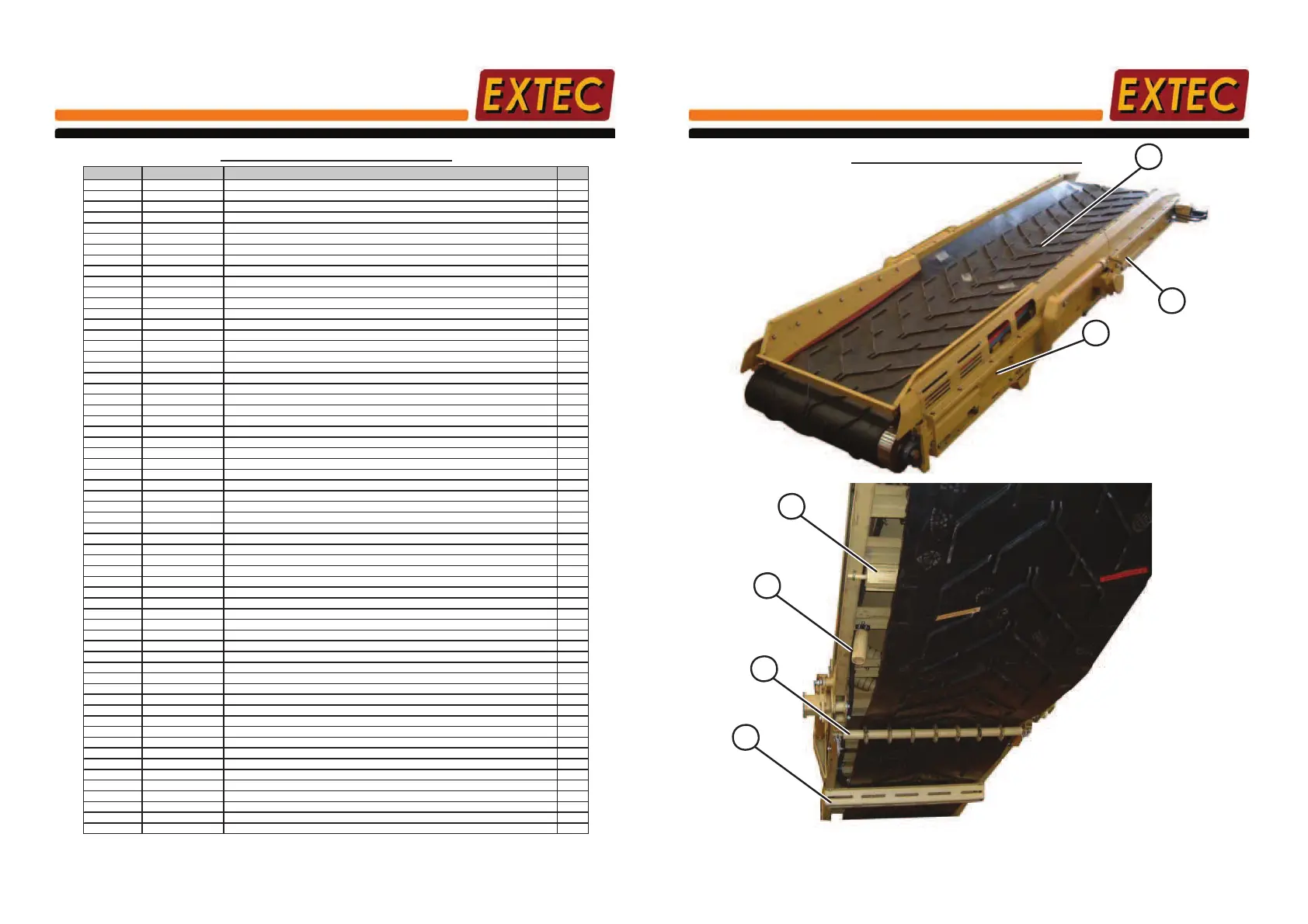

SIDE CONVEYOR ASSEMBLY
ITEM No. PART No. PART DESCRIPTION QTY
1
CB800X1540 FINES SIDE CONVEYOR BELT
1
2 E3290000 HEAD DRUM 1
3 HM1036 FINES SIDE CONVEYOR MOTOR 1
4 E3400000 SIDE CONVEYOR HEAD DRUM L/H NIP GUARD 1
5 E3410000 SIDE CONVEYOR HEAD DRUM R/H NIP GUARD 1
6 E3340000 SIDE CONVEYOR SIDE FOLD SPINE ASSEMBLY 1
7 CR1011 W ING ROLLER 16
8 E3740000 SIDE CONVEYOR ROLLER BRACKET TOP 1
9 E3770000 SIDE CONVEYOR ROLLER BRACKET BOTTOM 2
10 D10430000 MOTOR MOUNTING BRACKET 1
11 E0240000 MOTOR MTG BRKT TOP COVER 1
12 E0250000 MOTOR MTG BRKT BTM COVER 1
13 RU5501 SE27 ROSTA TENSIONER 2
14 BT2003 FLANGE BEARING 2
15 E3380000 FINES SIDE CONVEYOR L/H HEAD DRUM SLIDER 1
16 E3390000 FINES SIDE CONVEYOR R/H HEAD DRUM SLIDER 1
17 E3420000 FINES SIDE CONVEYOR HEAD DRUM SCRAPER 1
18 PY1029 HEADDRUM SCRAPER BLADE 1
19 E3430000 FINES SIDE CONVEYOR HEAD DRUM SCRAPER CLAMP 1
20 CR1060
SIDE CONVEYOR RETURN ROLLER
4
21 E3450000 RETURN ROLLER NIP GUARD 1
22 E3440000 RETURN ROLLER SUPPORT 4
23 E3460000 FINES SIDE CONVEYOR L/H FEEDBOOT SIDE PLT 1
24 E3470000 FINES SIDE CONVEYOR R/H FEEDBOOT SIDE PLT 1
25 E3480000 FINES SIDE CONVEYOR FEEDBOOT BACK PLT 1
26 E3510000 FINES SIDE CONVEYOR R/H FEEDBOOT SIDE SUPPORT 1
27 E3520000 FINES SIDE CONVEYOR L/H FEEDBOOT SIDE SUPPORT 1
28 E3320000 FINES SIDE CONVEYOR BTM FRAME ASSEMBLY 1
29 E3330000 FINES SIDE CONVEYOR MID FRAME ASSEMBLY 1
30 CR1008 CENTRE ROLLER 8
31 CR1004 30 DEG ROLLER BRACKET 8
32 CR1006 40 DEG ROLLER BRACKET 8
33 E3300000 TAIL DRUM 1
34 BT1003 PLUMMER BLOCK BEARING 2
35 E3570000 SIDE CONVEYOR CHASSIS SUPPORT L/H STOOL 1
36 E3580000 SIDE CONVEYOR CHASSIS SUPPORT R/H STOOL 1
37 E3550000 FINES SIDE CONVEYOR TELE LEG OUTER 2
38 E3560000 FINES SIDE CONVEYOR TELE LEG INNER 2
39 E3800000 FINGERSCREEN RAM COVER PLATE 2
40 E3830000 PIPE GUIDE PLATE 1
41
T10070000
TORQUE ARM 1
42 PN 1132 TROMMEL SIDE CONVEYOR PIVOT PIN 2
43 PN 1158 SIDE CONVEYOR PIVOT PIN 1
44 HR1084 TELE-LEG RAM 2
45 HR1078 SIDE CONVEYOR SIDE FOLD RAM 1
46 E3530000 FINES SIDE CONVEYOR FEEDBOOT SIDE SUPPORT GUARD 4
47
CB800X1590 MID-GRADE SIDE CONVEYOR BELT
1
48 HM1037 MID-GRADE SIDE CONVEYOR MOTOR 1
49 E3680000 MID GRADE SIDE CONVEYOR L/H HEAD DRUM SLIDER 1
50 E3690000 MID GRADE SIDE CONVEYOR R/H HEAD DRUM SLIDER 1
51 E3590000 FINES SIDE CONVEYOR PLOUGH SCRAPER 1
52 PY1001 CONVEYOR PLOUGH SCRAPER BLADE 1
53 CR1061
SLAPPER ROLLER
1
54 E3650000 MID GRADE SIDE CONV L/H FEEDBOOT SIDE PLT 1
55 E3660000 MID GRADE SIDE CONV R/H FEEDBOOT SIDE PLT 1
56 E3670000 MID GRADE SIDE CONV FEEDBOOT BACK PLT 1
57 E3620000 MID GRADE SIDE CONV L/H FEEDBOOT SIDE SUPPORT 1
58 E3630000 MID GRADE SIDE CONV R/H FEEDBOOT SIDE SUPPORT 1
59 E3640000 MID GRADE SIDE CON FEEDBOOT SIDE SUPPORT COVER 4
60 PN 1073 MID GRADE SIDE CON L/H TRAVEL LOCK 2
61 PN 1037 TOW BAR PIN 1
Appendix 2 Page30
