E-7

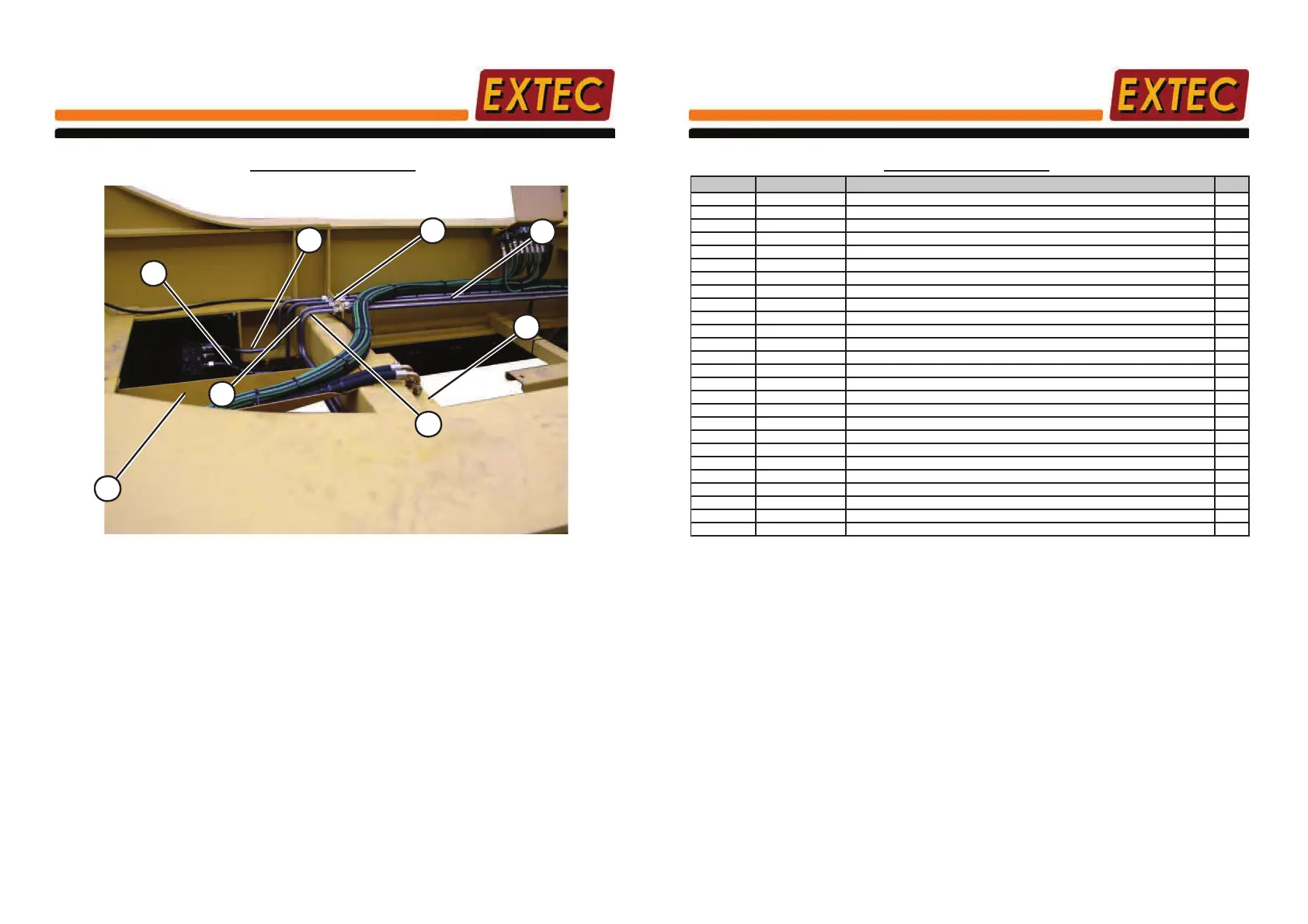

CHASSIS ASSEMBLY
ITEM No. PART No. PART DESCRIPTION QTY
1 A12850000 16X5 SCREEN CHASSIS 1
2 A12930000 FINGER SCREEN CHASSIS R/H TRACK FRAME ASSY 1
3 A12920000 FINGER SCREEN CHASSIS L/H TRACK FRAME ASSY 1
4 A12940000 FINGER SCREEN TOP CROSS BEAM 1
5 A12860000 CHASSIS ROLLER SUPPORT CROSS BEAM 1
6 A12870000 CHASSIS FEEDER ROLLER 2
7 A12890000 FINGER SCREEN CHASSIS REAR DOOR 1
8 PN1155 CHASSIS FEEDER ROLLER PIN 2
9 PN1027 SCREENBOX HEIGHT ADJUSTMENT PIN 2
10 A12910000 FINGER SCREEN CHASSIS LIFT LEG INNER 2
11 HR1088 SCREENBOX SUB-FRAME REAR LIFT RAM 2
12 HR1079 SCREENBOX SUB-FRAME FRONT LIFT RAM 2
13 A12900000 FINGER SCREEN LIFT LEG CROSS MEMBER DETAIL 1
14 HR1001 TAIL CONVEYOR BOTTOM LIFT RAM 2
15 A12980000 OVERSIZE CONVEYOR BTM SUPPORT SLIDE R/H SIDE 1
16 A12990000 OVERSIZE CONVEYOR BTM SUPPORT SLIDE L/H SIDE 1
17 A12950000 FINGER SCREEN CENTRAL PIPE TRAY 1
18 A12960000 FINGER SCREEN CENTRAL BULKHEAD PLATE 1
19 A12970000 FINGER SCREEN FRONT CLIP ON MANIFOLD 1
20 A13600000 FINGER TOP LH STEEL TRACK PIPE 1
21 A13610000 FINGER BTM LH STEEL TRACK PIPE 1
22 A13620000 FINGER TOP RH STEEL TRACK PIPE 1
23 A13630000 FINGER BTM RH STEEL TRACK PIPE 1
24 A13640000 FINGER STEEL TRACK PIPE - BULKHEAD TO POWERPACK 4
25 E3810000 FINGERSCREEN TOOLBOX ASSY 1
26 E3820000 FINGERSCREEN TOOLBOX LID 1
Appendix 2 Page9
