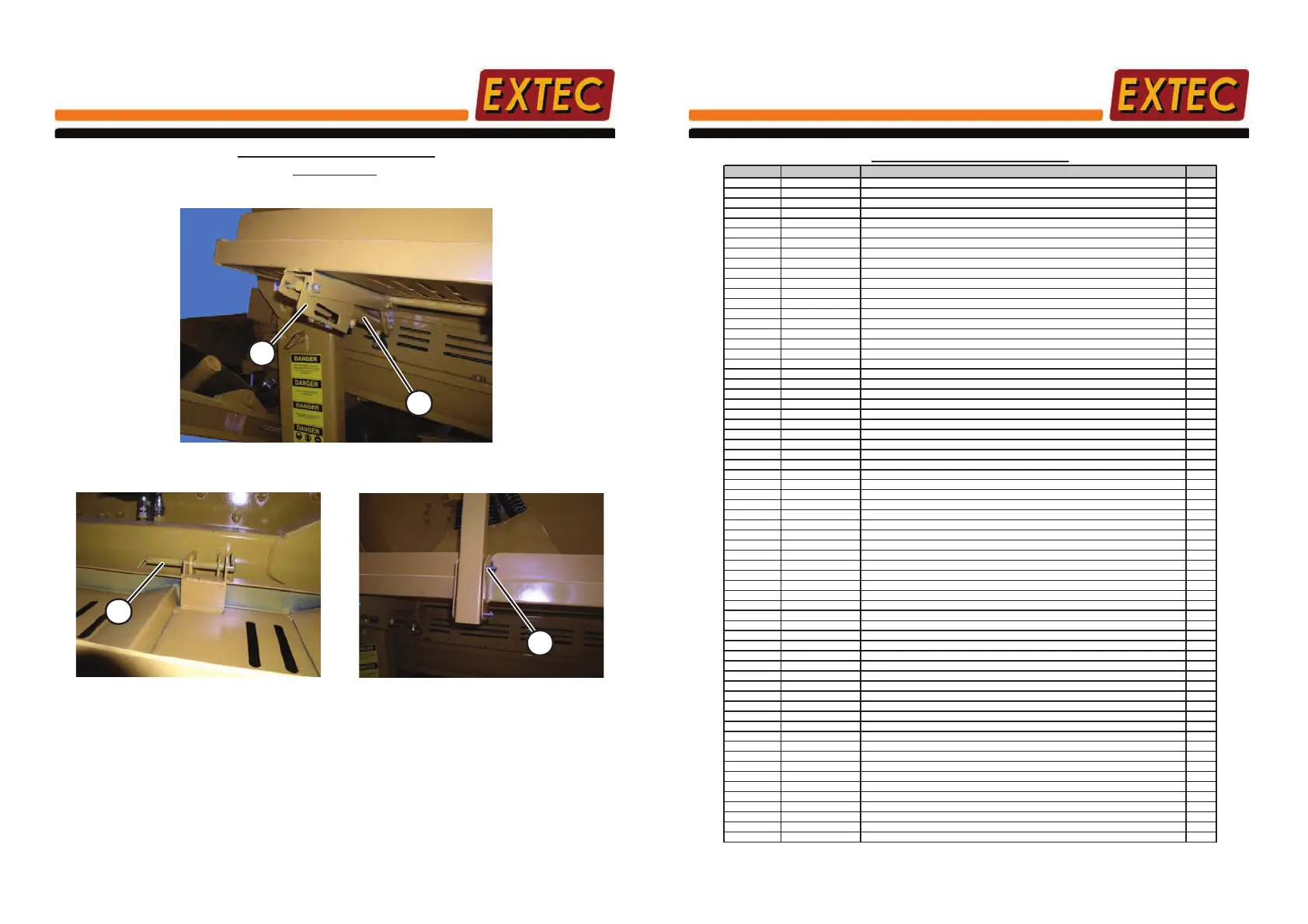

SCREENBOX ASSEMBLY
ITEM No. PART No. PART DESCRIPTION QTY
1 G6700000 16X5 SCREENBOX R/H SIDE PLT 1
2 G6710000 16X5 SCREENBOX L/H SIDE PLT 1
3
G6720000
16X5 SCREENBOX R/H SPRING MOUNT 2
4 G6730000 16X5 SCREENBOX L/H SPRING MOUNT 2
5
G6740000
16X5 SCREENBOX BTM NOSE ASSEMBLY 1
6 G6750000 16X5 SCREENBOX TO P NOSE ASSEMBLY 1
7 G6950000 16X5 SCREENBOX FLY W HEEL GUARD 1
8
G6960000
16X5 SCREENBOX FLY W HEEL G UARD COVER 1
9
G6980000
16X5 SCREENBOX GUARD INSPECTION PLT 1
10 G5640000 SCREENBOX RACHET LINK BASE BRACKET 2
11 G7050000 SPRING SUPPO RT 24
12 G5650000 SCREENBOX RACHET LINK BASE BRACKET OPP-HAND 2
13 G7110000 SCREENBO X MOTOR GUARD 1
14
HM 1034
SCREENBOX MOTOR 1
15 G6930000 16X5 SCREENBOX MOTOR MTG PLT 1
16
G6940000
16X5 SCREENBOX DRIVE HOUSING 1
17 G6770000 16X5 SCREENBOX CROSS MEMBER 2
18 G4050000 MESH RETAINER 1
19
G6760000
16X5 SCREENBOX REAR SPILL PLT 1
20 G7140000 RUBBER CLAMP 1
21 G7150000 RUBBER CLAMP 2
22 G6970000 16X5 SCREENBOX REAR SPILL PLT RUBBER CLAMP 1
23 G6850000 16X5 SCREENBOX BEARING HOUSING 2
24
G6860000
16X5 SCREENBOX ECCENTRIC SHAFT 1
25 BT3031 BEARING 2
26
G6900000
16X5 SCREENBOX SHAFT LOCKING COLLAR 1
27
G6880000
16X5 SCREENBOX BEARING HOUSING END CAP 2
28 BT5027 TAPER LOCK BUSH 2
29 FAKS22X14
KEYSTEEL
2
30 G6910000 16X5 SCREENBOX COUNTER W EIGHT 2
31
G6920000
16X5 SCREENBOX BOLT ON CO UNTER W EIGHT 4
32 G6870000 16X5 SCREENBOX CENTER PIPE ASSEMBLY 1
33
G6800000
16X5 SCREENBOX SPILL PLT END 2
34 G6810000 16X5 SCREENBOX SPILL PLT END OPP-HAND 2
35
G6820000
16X5 SCREENBOX SPILL PLT MID 2
36
G6780000
16X5 SCREENBOX TOP SIDE ANGLE 1
37 G6790000 16X5 SCREENBOX TOP SIDE ANGLE O PP-HAND 1
38 SC5006 SPRING 12
39 G7080000 SUBFRAME LEG L/H 1
40 G7090000 SUBFRAME LEG R/H 1
41 G7120000 SUBFRAME LINK BEAM 1
42 G7130000 MESH CHANGE LOCKOUT 2
43 PN1152 FINGER SUBFRAME TO LIFT LEG PIN 2
44
G6990000
16X5 SCREENBOX TO P DECK END CROSS MEMBER 1
45 G7000000 16X5 SCREENBOX TOP DECK TINE CROSS MEMBER 3" 6
46
G7040000
16X5 SCREENBOX MESH CLAMP 1
47 G5380000 SPRING BAR 8mm CAMBER 2
48
SMC007
LARG E TINE 13
49
SMC009
LARGE TINE BUSH 13
50 FAN1004 LARGE TINE LOCK NUT 13
51 SMC008 SMALL TINE 78
52 SMC011 SMALL TINE BUSH 78
53 FAN1005 SMALL TINE LOCK NUT 78
54 RU5328 CAPPING RUBBER 6
55
G7060000
16X5 SCREENBOX BTM SIDE HANGING RUBBER CLAMP 4
56 G7070000 16X5 SCREENBO X BTM FRONT HANGING RUBBER CLAMP 1
57 G6830000 16X5 SCREENBOX BTM DECK FRAME 1
58 G7350000 L/H SIDE HANDRAIL 1
59 G7310000 L/H SIDE W ALKW AY 1
60 G7370000 LADDER ASSEMBLY 2
61 G7330000 R/H SIDE HANDRAIL 1
62 G7300000 R/H SIDE W ALKW AY 1
63
HR1001
W ALKW AY RAM 2
64 G6360000 RAM LOCKOUT 2
65 PN1114 NON-RAM END LOCKO UT PIN 2
66 PN1065 HAND RAIL PIVOT PIN 8
