E-7
TAIL CONVEYOR ASSEMBLY
59
60
61
62

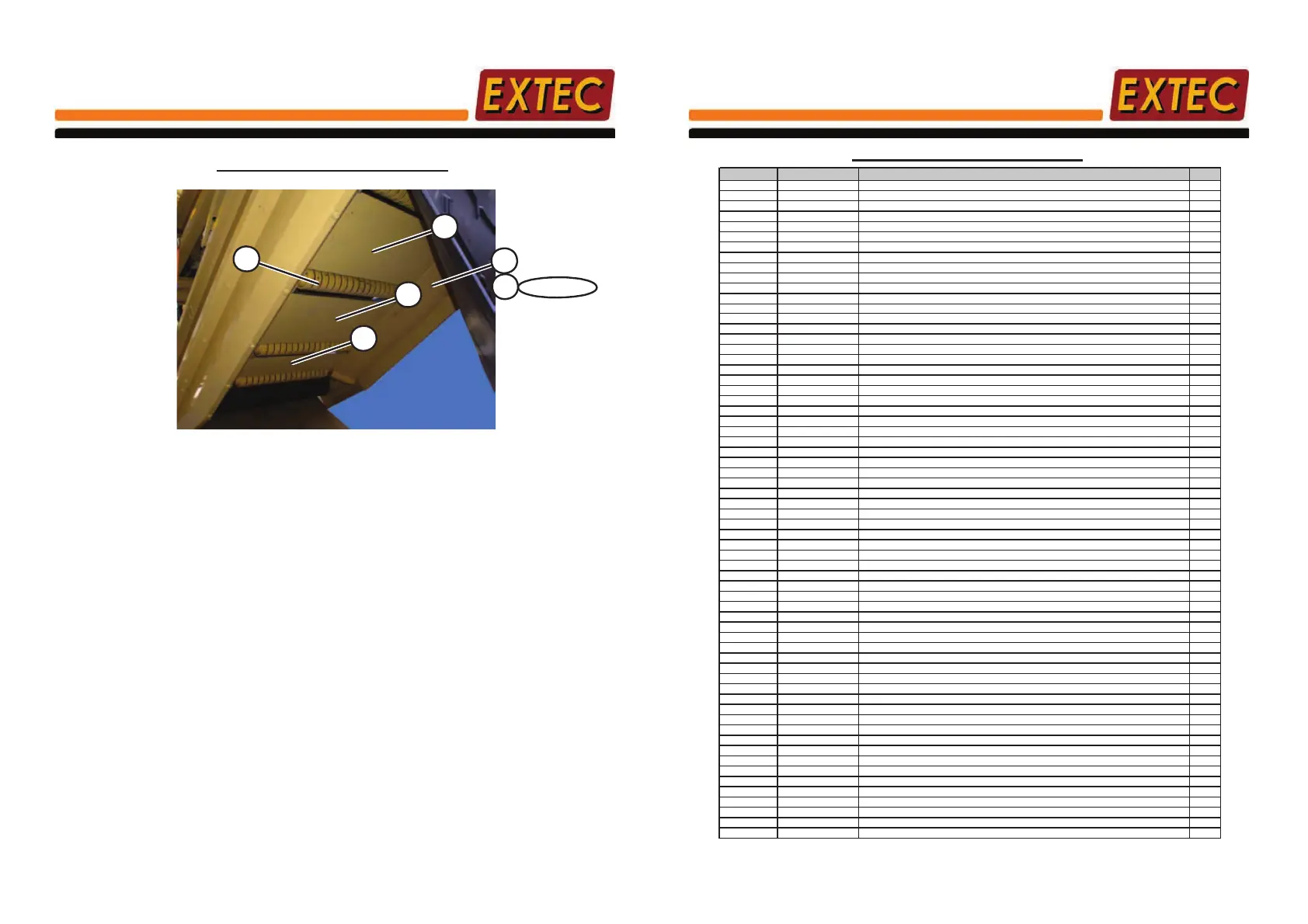

DETAILED VIEW OF TAIL CONVEYOR PANS
63
OPP-HAND
64
Appendix 2 Page36
E-7
TAIL CONVEYOR ASSEMBLY
ITEM No. PART No. PART DESCRIPTION QTY
1 CB1137X1200 TAIL CONVEYOR BELT 1
2 F3790000 TAIL CONVEYOR BTM SECTION ASSY 1
3 F3890000 TAIL CONVEYOR TOP SECTION ASSY 1
4 T5390000 TAIL CONV SLAPPER ROLLER 1
5 CR1024 TRACKING ROLLER 2
6 CR1040 RETURN ROLLER 2
7 F3990000 TAIL CONVEYOR RETURN ROLLER GUARD 1
8 F4020000 TAIL CONVEYOR TOP SECTION L/H HEAD FLAIR 1
9 F4030000 TAIL CONVEYOR TOP SECTION R/H HEAD FLAIR 1
10 HM1010 TAIL CONVEYO R MOTOR 2
11 D10430000 4500 CONVEYOR MOTOR MTG BRACKET 2
12 E0240000 MOTOR MTG BRKT TOP COVER 2
13 E0250000 MOTOR MTG BRKT BTM COVER 2
14 F3940000 HEAD DRUM 1
15 C0090000 TAIL DRUM 1
16 F3800000 TAIL CONVEYOR FEEDBOOT BACK PLATE 1
17 F3810000 TAIL CONVEYOR FEEDBOOT SUPPORT 1
18 F3820000 TAIL CONVEYOR FEEDBOOT SUPPORT 1
19 F3870000 TAIL CONVEYOR FEEDBOOT SIDE 1
20 F3880000 TAIL CONVEYOR FEEDBOOT SIDE 1
21 F3830000 TAIL CONVEYOR FEEDBOOT SUPPORT COVER 1
22 F3840000 TAIL CONVEYOR SLIDER DETAIL 2
23 BT1003
PLUMMER BLOCK BEARING
2
24 D 716 00 00 MEGABITE CONV W ING IMPACT BAR 1
25 D 723 00 00 MEGABITE CONV W ING IMPACT BAR 1
26 D 714 00 00 MEGABITE CONV STANDARD BASE IMPACT BAR 5
27 D 715 00 00 MEGABITE CONV BASE IMPACT BAR 1
28 D 724 00 00 MEGABITE BASE IMPACT BAR 1
29 D7170000 IMPACT BAR LARGE MOUNTING PLATE L/H SIDE 1
30 D7180000 IMPACT BAR LARGE MOUNTING PLATE R/H SIDE 1
31 D7190000 IMPACT BAR MEDIUM MOUNTING PLATE L/H SIDE 1
32 D7200000 IMPACT BAR MEDIUM MOUNTING PLATE R/H SIDE 1
33 D7210000 IMPACT BAR PLATE L/H SIDE 1
34 D7220000 IMPACT BAR PLATE R/HSIDE 1
35 F4070000 TAIL CONVEYOR ROLLER SUPPORT BRACKET 12
36 CR1002 CENTER ROLLER 6
37 D10440000 SMALL ROTATION LINKAGE ARM 2
38 D10450000 LARGE ROTATION LINKAGE ARM 2
39 D10460000 FOLDING RAM CLEVIS 2
40 HR1087 FOLD RAM 2
41 F3920000 TAIL CONVEYOR BTM SECTION OUTER FLAIR 1
42 F3930000 TAIL CONVEYOR BTM SECTION OUTER FLAIR 1
43 F4000000 TAIL CONVEYOR TOP SECTION OUTER FLAIR 1
44 F4010000 TAIL CONVEYOR TOP SECTION OUTER FLAIR 1
45 F4110000 TAIL CONVEYOR BTM SUPPORT BEAM 1
46 F4120000 TAIL CONVEYOR BTM SUPPORT BEAM BEARING RETAINER 2
47 BT3033 NEEDLE ROLLER BEARING 2
48 F4050000 TAIL CONVEYOR TAIL DRUM GUARD 1
49 F4060000 TAIL CONVEYOR TAIL DRUM GUARD 1
50 F3980000 TAIL CONVEYOR CHASSIS SUPPORT ARM 2
51 F4130000 PIVOT ARM FOR RETURN ROLLER 2
52 FD3116 SPAREX LINCH PIN 2
53 FD4006 LOCK OUTER W ITHOUT STRICKER 2
54 PN 1157 TAIL CONVEYOR LOCKOUT PIN 2
55 BT2004
FLANGE BEARING
2
56 T6130000 CONVEYOR SLIDER ADJUSTER BOLT 2
57 F3860000 TAIL CONVEYOR FEEDBOOT RUBBER CLAMP 1
58 PN 1039 TAIL CONVEYOR PIVOT PIN 2
59 F4160000
TAIL CONVEYOR PAN (LARGE)
1
60 F4170000 TAIL CONVEYOR PAN (MEDIUM) 1
61 F4190000 TAIL CONVEYOR PAN (SMALL) 1
62 CR 1062 IMPACT ROLLER 4
63 F3960000 OVERSIZE CONVEYOR TOP SECTION INNER FLAIR 1
64 F3970000 OVERSIZE CONVEYOR TOP SECTION INNER FLAIR 1
Appendix 2 Page37
