Extra 300L - Page 171

To Next Page

To Previous Page

Section 910

Acro III Category

Page Date: 20. April 2002 910 - 7

Pilot´s Operating Handbook

EXTRA 300L

EXAMPLE:

At 790 KG (1741 LBS) and 640000 kgcm the

C/G location is 80,0 cm (31,4") aft of ref datum

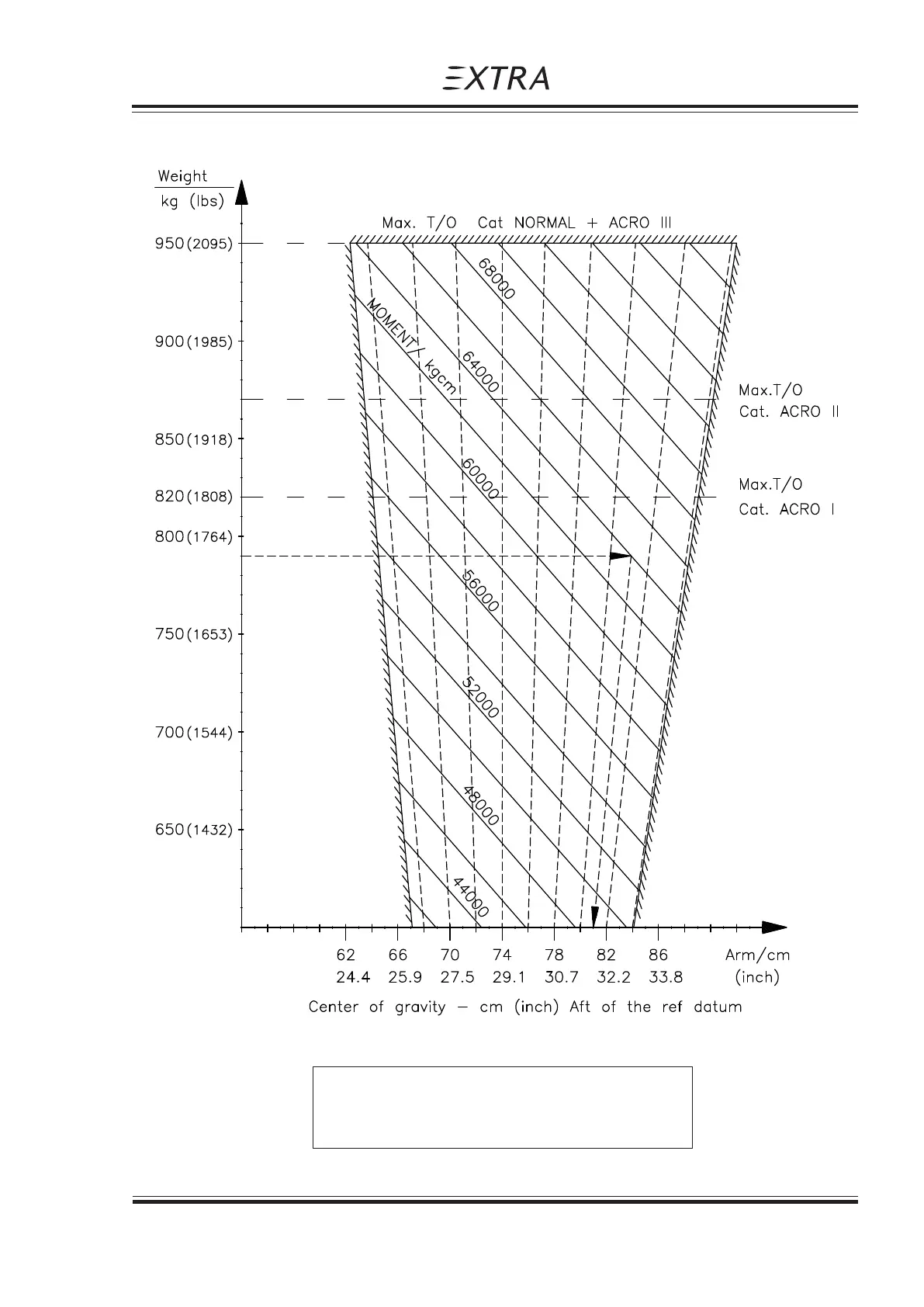

WEIGHT AND MOMENT LIMITS
