Extra 300L - Weights and Moments Limits

To Next Page

To Previous Page

Page Date: 20. April 2002 6 - 9

Section 6

Weight and Balance and Equipment List

Pilot´s Operating Handbook

EXTRA 300L

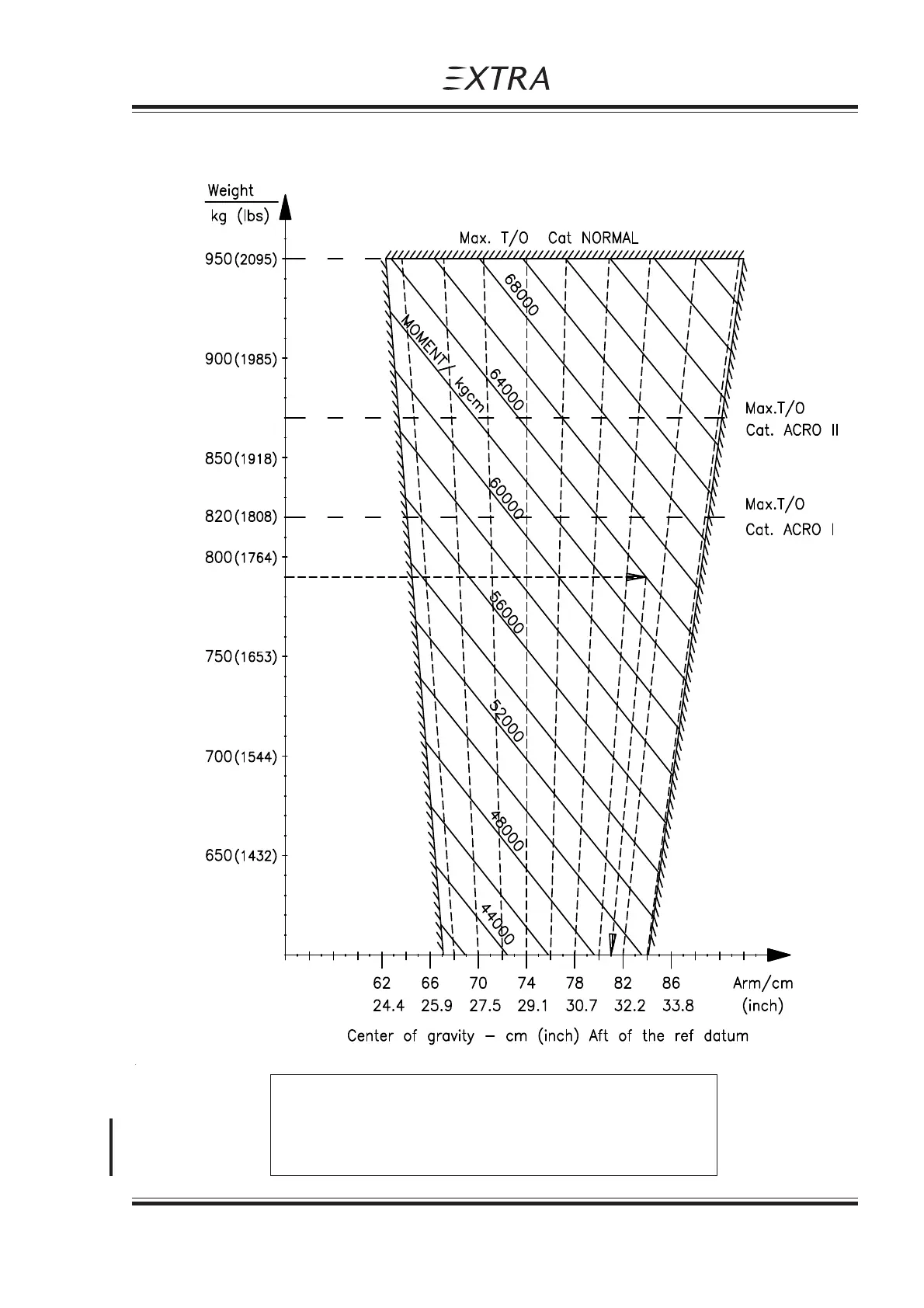

6.5 WEIGHTS AND MOMENTS LIMITS

EXAMPLE:

At 790 KG (1741 LBS) and 64000 kgcm the C/G location is

81.0 cm (31.9") aft of ref datum
