Section 929
GARMIN GTN 635/650/750
929 - 4 Page Date: 20. January 2016
PilotĀ“s Operating Handbook
EXTRA 300L
The system must utilize main software version 2.00, GPS software version 4.0, COM software
version 2.01 and NAV software version 6.01 or later EASA/FAA approved versions. Valid and
compatible databases must be installed and contain current data.
The navigation data incl. for final approach segments provided by the GTN series (e.g. moving map
& CDI depiction) is for situational awareness only and should not be relied upon for navigation.
Do not use SafeTaxi or ChartView functions as the basis for ground maneuvering. SafeTaxi and
ChartView are to be used for the pilot to orient himself on the airport surface to improve situational
awareness during ground operation.

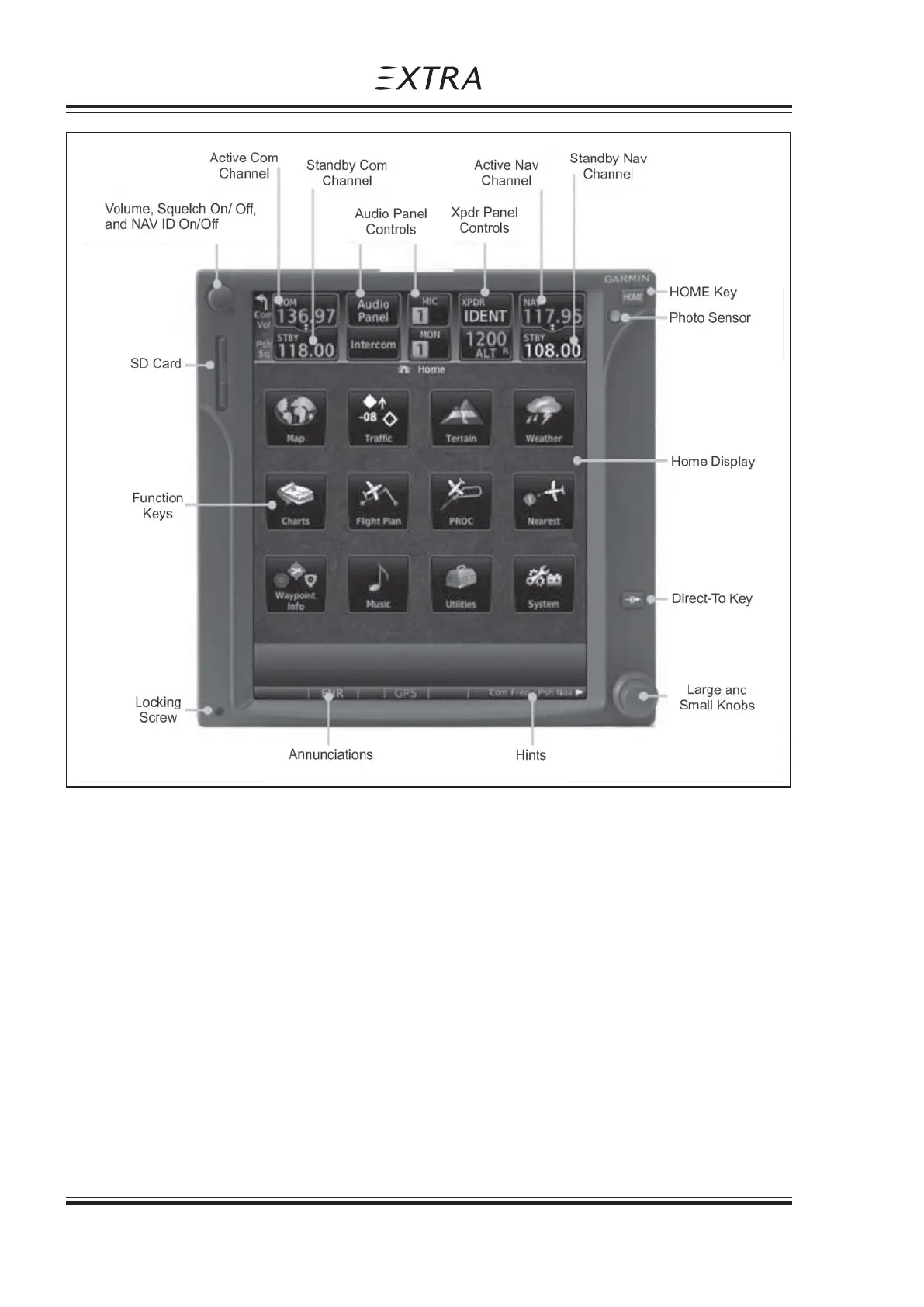

Figure 2, GTN 750 Display Layout
