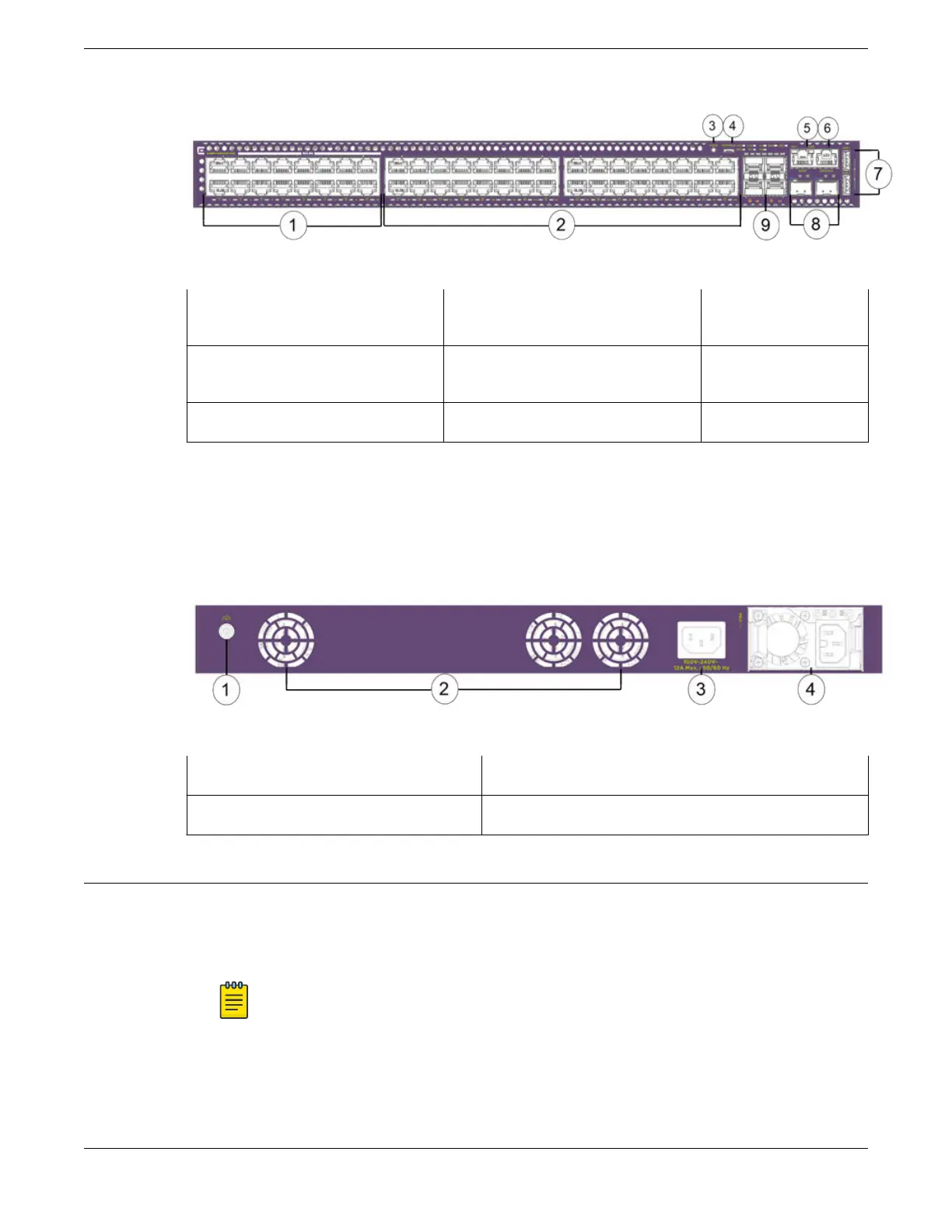

Figure 11: 5420F-16W-32P-4XE Front Panel
1 = 10/100/1000BASE-T ports (Type 4
PoE (90W))
4 = USB Micro-B console port 7 = USB Type-A ports
2 = 10/100/1000BASE-T ports (Type
2 PoE (30W))
5 = 10/100/1000BASE-T out-of-band
management port
8 = SFP-DD stacking
ports
3 = Mode button 6 = RJ-45 serial console port 9 = 1/10G SFP+ ports
The rear panel of the switch includes:
3 fixed fan modules
Grounding lug
1 AC power inlet connector
1 power supply slot
Figure 12: 5420F-16W-32P-4XE Rear Panel
1 = Grounding lug 3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-48P-4XE Switch Features
The front panel of the 5420F-48P-4XE switch includes:
48 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type 2 PoE+
(30W).
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
2 Stacking/SFP-DD ports (unpopulated)
1 Serial console port (RJ-45)
5420F-48P-4XE Switch Features
ExtremeSwitching 5420 Series Overview
20 ExtremeSwitching 5420 Series Hardware Installation Guide
