2 = Fixed fan modules 4 = Power supply slot
5420M-24T-4YE Switch Features
The front panel of the 5420M-24T-4YE switch includes:
24 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
4 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)
2 Stacking/SFP-DD ports
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports with SFP+
optics using the disable stacking-support command.
1 Serial console port (RJ-45)
1 10/100/1000BASE-T out-of-band management port
2 USB Type-A ports for management or external flash
1 USB Micro-B console port

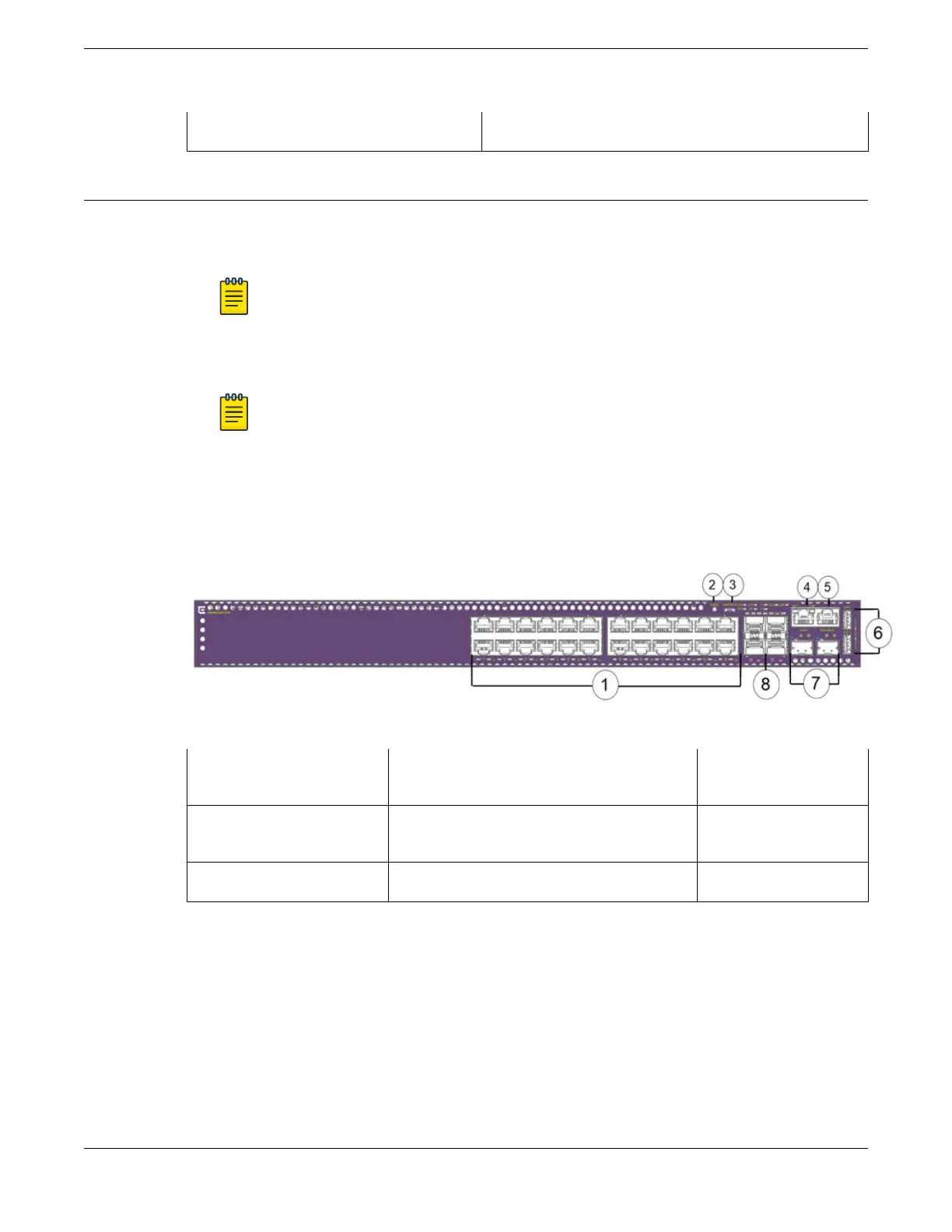

Figure 19: 5420M-24T-4YE Front Panel
1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
management port
7 = SFP-DD stacking
ports
2 = Mode button 5 = RJ-45 serial console port 8 = 1/10/25G SFP28
ports
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
1 fan module
Grounding lug
2 power supply slots
5420M-24T-4YE Switch Features
ExtremeSwitching 5420 Series Overview
24 ExtremeSwitching 5420 Series Hardware Installation Guide
