• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external flash
• 1 USB Micro-B console port

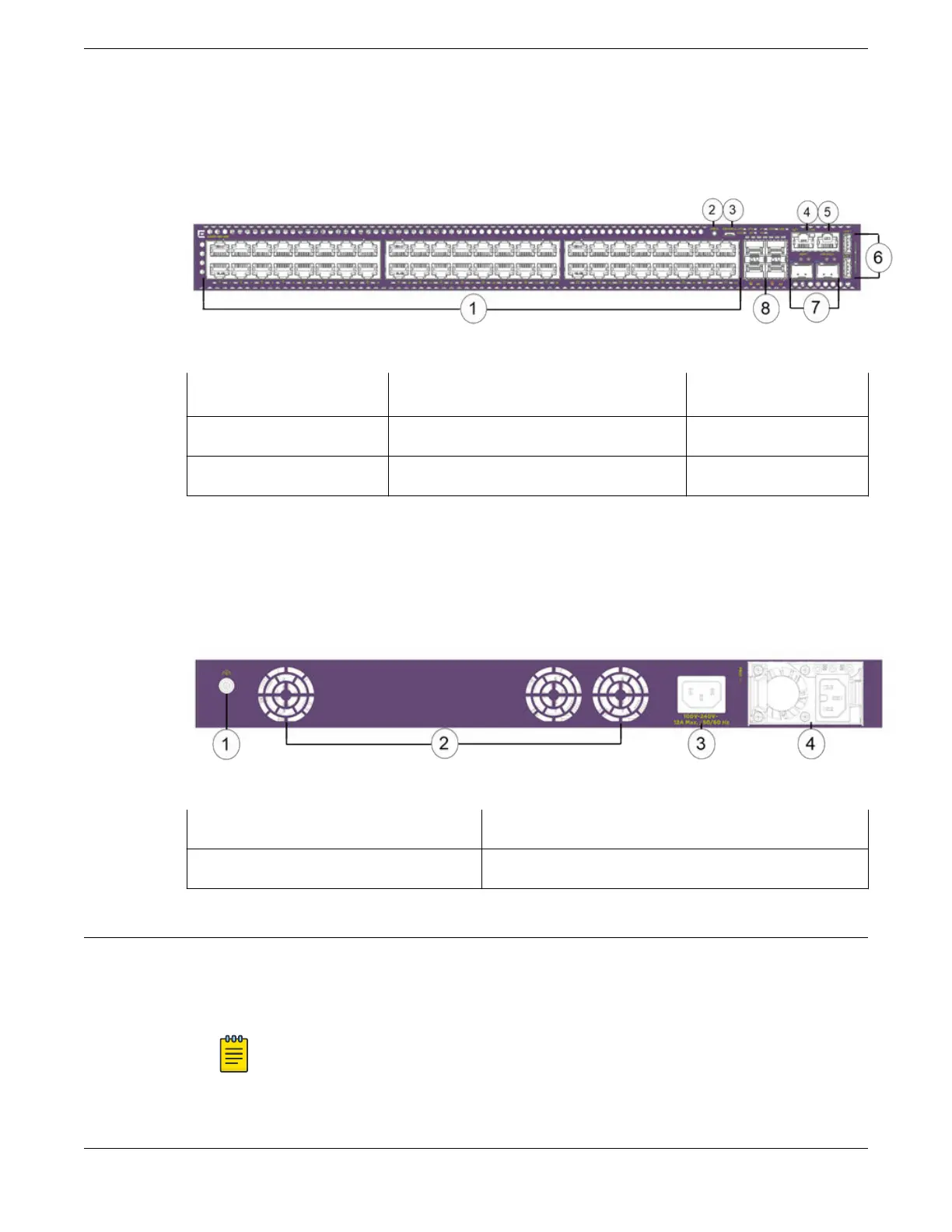

Figure 13: 5420F-48P-4XE Front Panel
1 = 10/100/1000BASE-T ports
10/100/1000BASE-T out-of-band management
port
7 = SFP-DD stacking ports
2 = Mode button 5 = RJ-45 serial console port 8 = 1/10G SFP+ ports
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
• 3 fixed fan modules
• Grounding lug
• 1 AC power inlet connector
• 1 power supply slot
Figure 14: 5420F-48P-4XE Rear Panel
1 = Grounding lug 3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-48P-4XL Switch Features
The front panel of the 5420F-48P-4XL switch includes:
• 48 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type 2 PoE+
(30W).
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 4 10Gb SFP+ MACsec capable LRM capable uplink ports (unpopulated)
ExtremeSwitching 5420 Series Overview
5420F-48P-4XL Switch Features
ExtremeSwitching 5420 Series Hardware Installation Guide 21
