1 = 100Mb/1Gb/2.5Gb ports 4 = USB Micro-B console port 7 = USB Type-A ports
2 = 10/100/1000BASE-T ports 5 = 10/100/1000BASE-T out-of-band
management port
8 = SFP-DD stacking ports
3 = Mode button 6 = RJ-45 serial console port 9 = 1/10G SFP+ ports
The rear panel of the switch includes:
• 3 fixed fan modules
• Grounding lug
• 1 AC power inlet connector
• 1 power supply slot

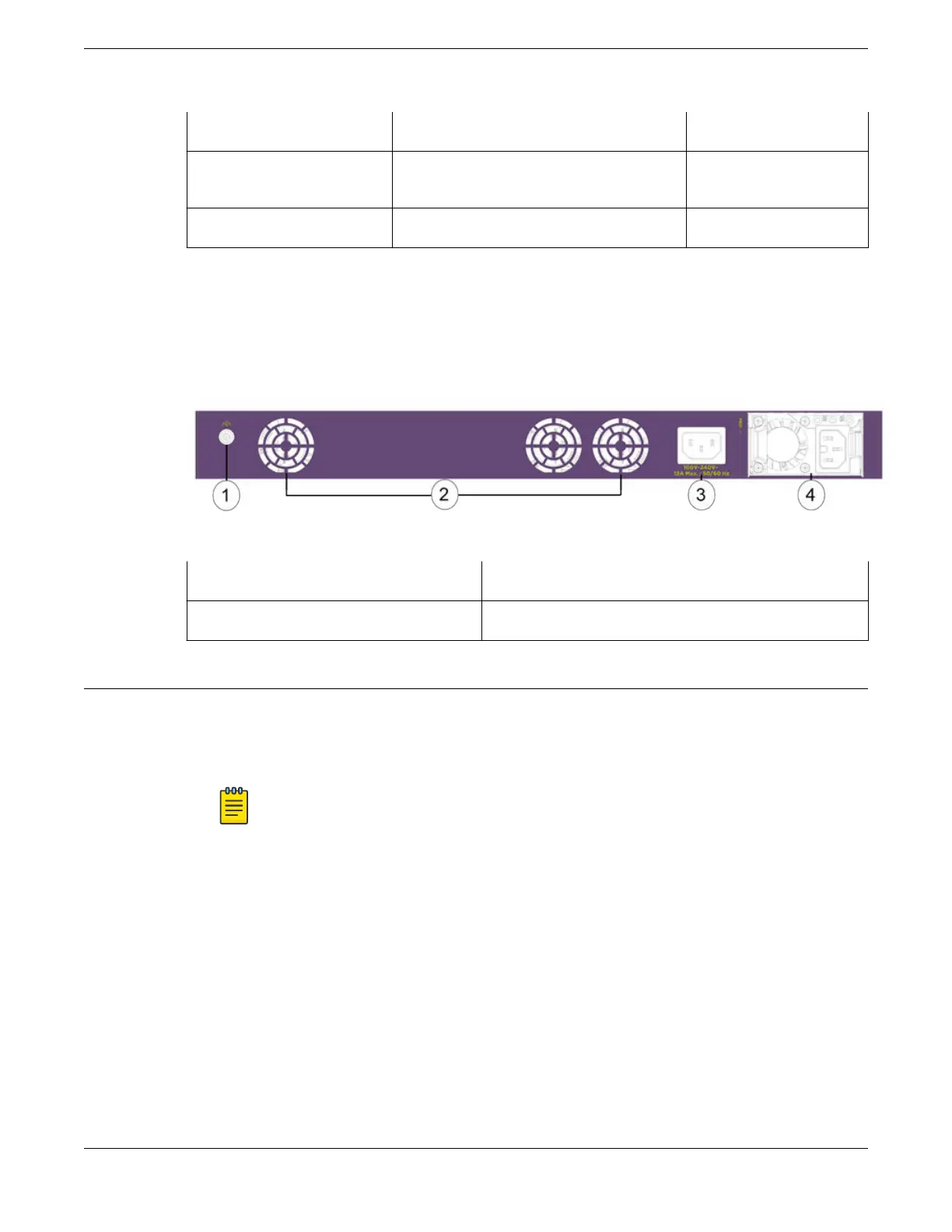

Figure 10: 5420F-16MW-32P-4XE Rear Panel
1 = Grounding lug 3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-16W-32P-4XE Switch Features
The front panel of the 5420F-16W-32P-4XE switch includes:
• 16 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with 802.3bt Type 4
PoE (90W).
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 32 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type 2 PoE+
(30W).
• 4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
• 2 Stacking/SFP-DD ports (unpopulated)
• 1 Serial console port (RJ-45)
• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external flash
• 1 USB Micro-B console port
ExtremeSwitching 5420 Series Overview
5420F-16W-32P-4XE Switch Features
ExtremeSwitching 5420 Series Hardware Installation Guide 19
