3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
• 1 fan module
• Grounding lug
• 2 power supply slots

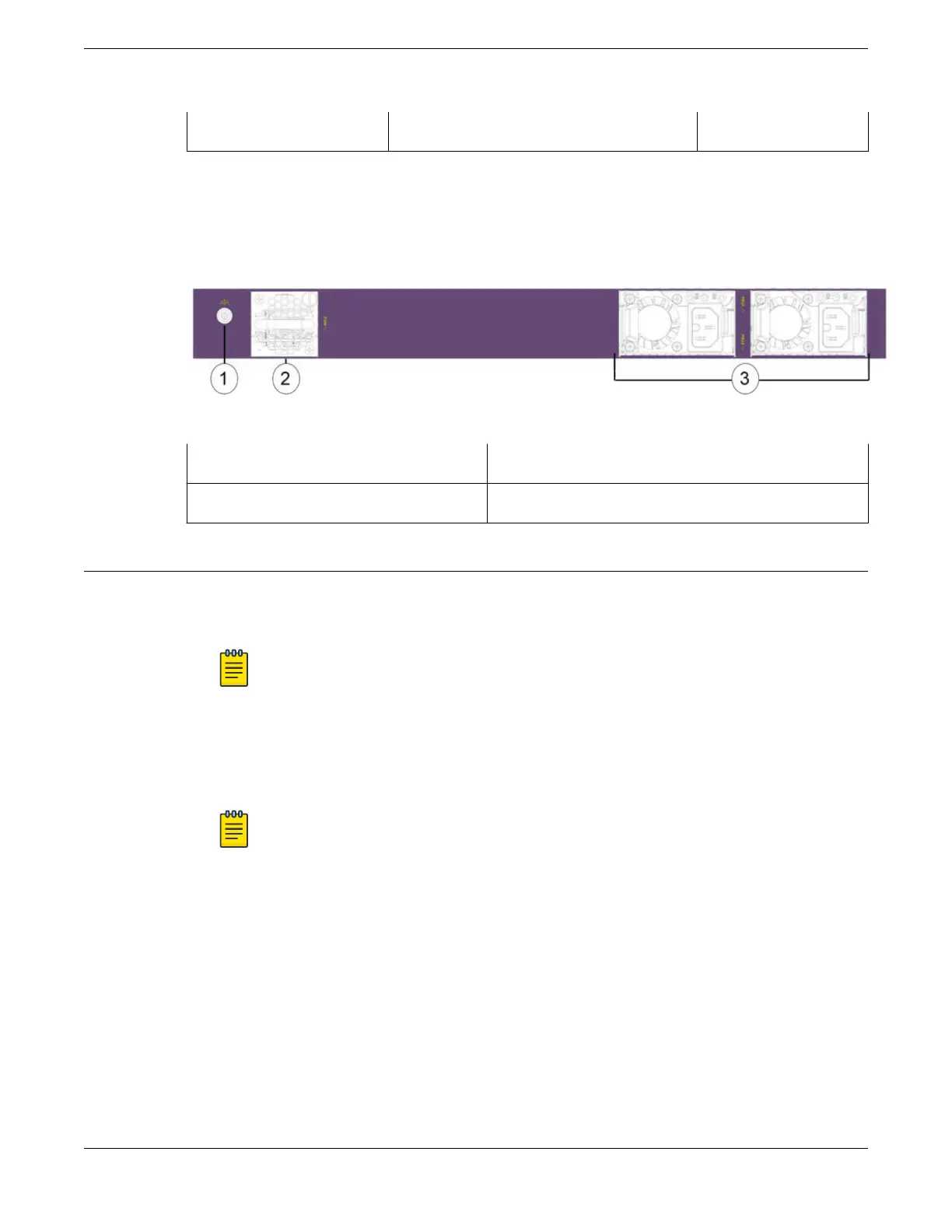

Figure 22: 5420M-24W-4YE Rear Panel
1 = Grounding lug 3 = Power supply slots
2 = Fan module
5420M-16MW-32P-4YE Switch Features
The front panel of the 5420M-16MW-32P-4YE switch includes:
• 16 100Mb/1Gb/2.5Gb MACsec cabable ports with 802.3bt Type 4 PoE (90W)
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 32 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type 2 PoE+
(30W)
• 4 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)
• 2 Stacking/SFP-DD ports
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports with SFP+
optics using the disable stacking-support command.
• 1 Serial console port (RJ-45)
• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external flash
• 1 USB Micro-B console port
5420M-16MW-32P-4YE Switch Features
ExtremeSwitching 5420 Series Overview
26 ExtremeSwitching 5420 Series Hardware Installation Guide
