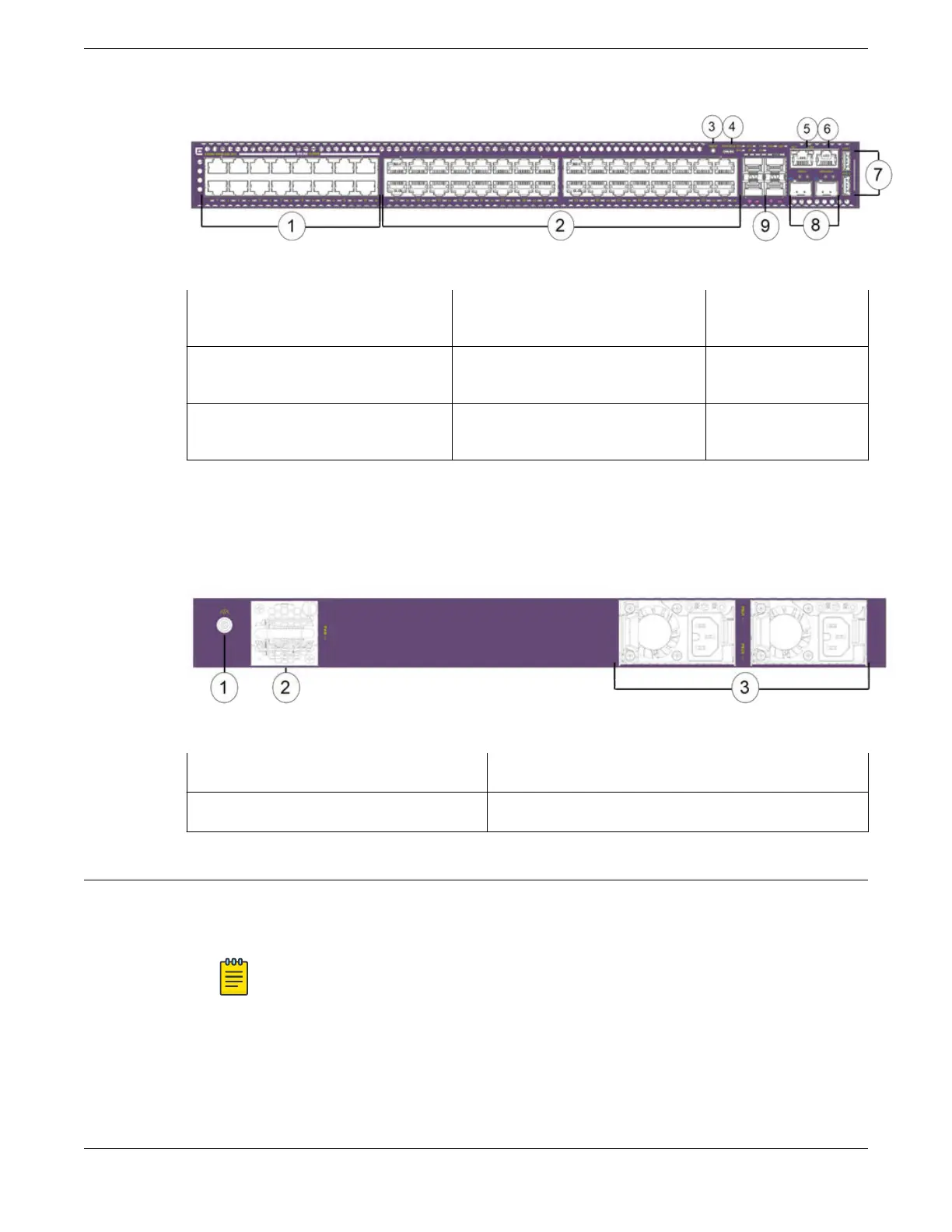

Figure 23: 5420M-16MW-32P-4YE Front Panel
1 = 100Mb/1Gb/2.5Gb
ports10/100/1000BASE-T ports
4 = USB Micro-B console port 7 = USB Type-A ports
2 = 10/100/1000BASE-T ports 5 = 10/100/1000BASE-T out-of-band
management port
8 = SFP-DD stacking
ports
3 = Mode button 6 = RJ-45 serial console port 9 = 1/10/25G SFP28
ports
The rear panel of the switch includes:
•
1 fan module
• Grounding lug
• 2 power supply slots
Figure 24: 5420M-16MW-32P-4YE Rear Panel
1 = Grounding lug 3 = Power supply slots
2 = Fan module
5420M-48T-4YE Switch Features
The front panel of the 5420M-48T-4YE switch includes:
• 48 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 4 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)
ExtremeSwitching 5420 Series Overview
5420M-48T-4YE Switch Features
ExtremeSwitching 5420 Series Hardware Installation Guide 27
