3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
• 2 fixed fan modules
• Grounding lug
• 1 AC power inlet connector
• 1 power supply slot

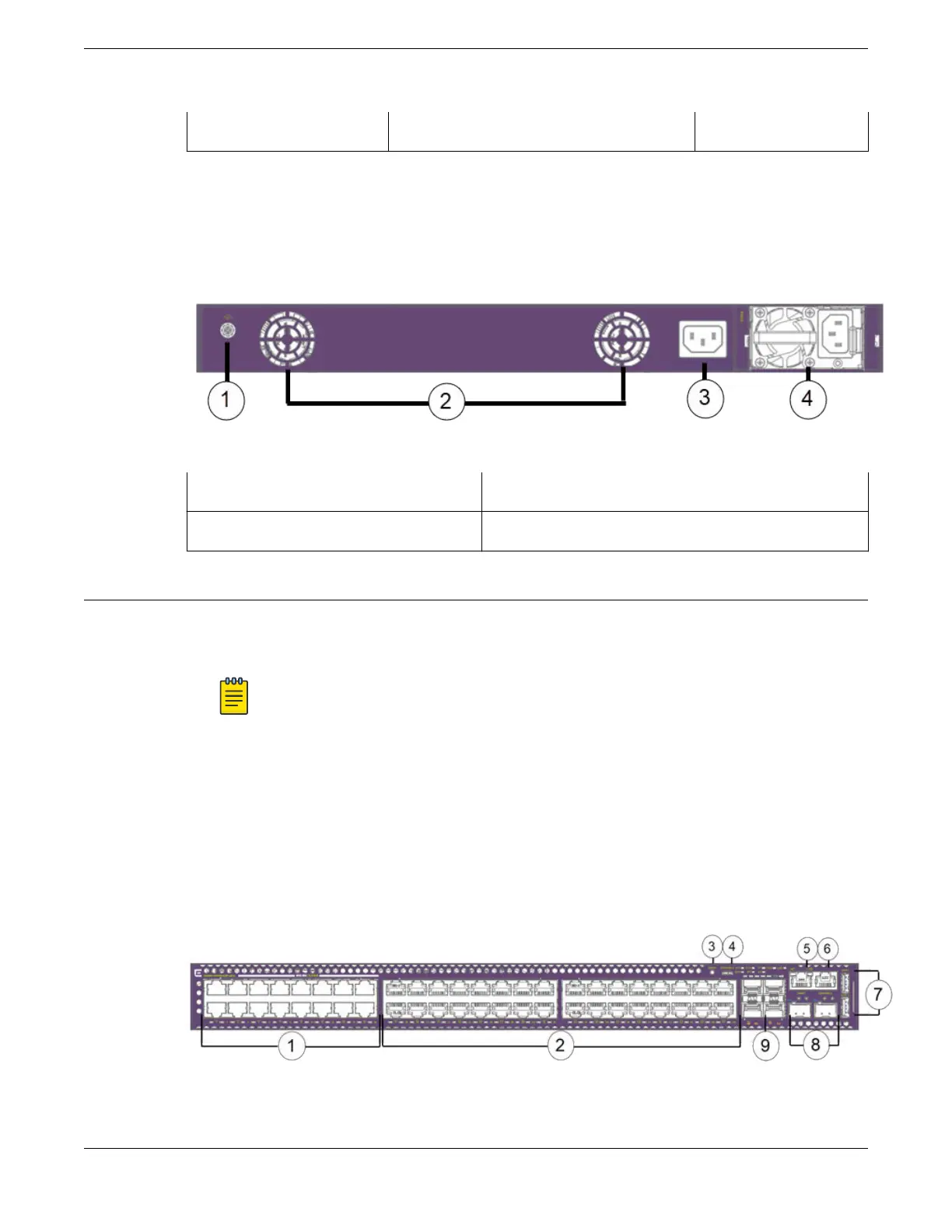

Figure 8: 5420F-24T-4XE Rear Panel
1 = Grounding lug 3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-16MW-32P-4XE Switch Features
The front panel of the 5420F-16MW-32P-4XE switch includes:
• 16 100Mb/1Gb/2.5Gb MACsec capable ports with 802.3bt Type 4 PoE (90W).
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 32 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type 2 PoE+
(30W)
• 4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
• 2 Stacking/SFP-DD ports (unpopulated)
• 1 Serial console port (RJ-45)
• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port
Figure 9: 5420F-16MW-32P-4XE Front Panel
5420F-16MW-32P-4XE Switch Features
ExtremeSwitching 5420 Series Overview
18 ExtremeSwitching 5420 Series Hardware Installation Guide
