• 2 Stacking/SFP-DD ports
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports with SFP+
optics using the disable stacking-support command.
• 1 Serial console port (RJ-45)
• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external flash
• 1 USB Micro-B console port

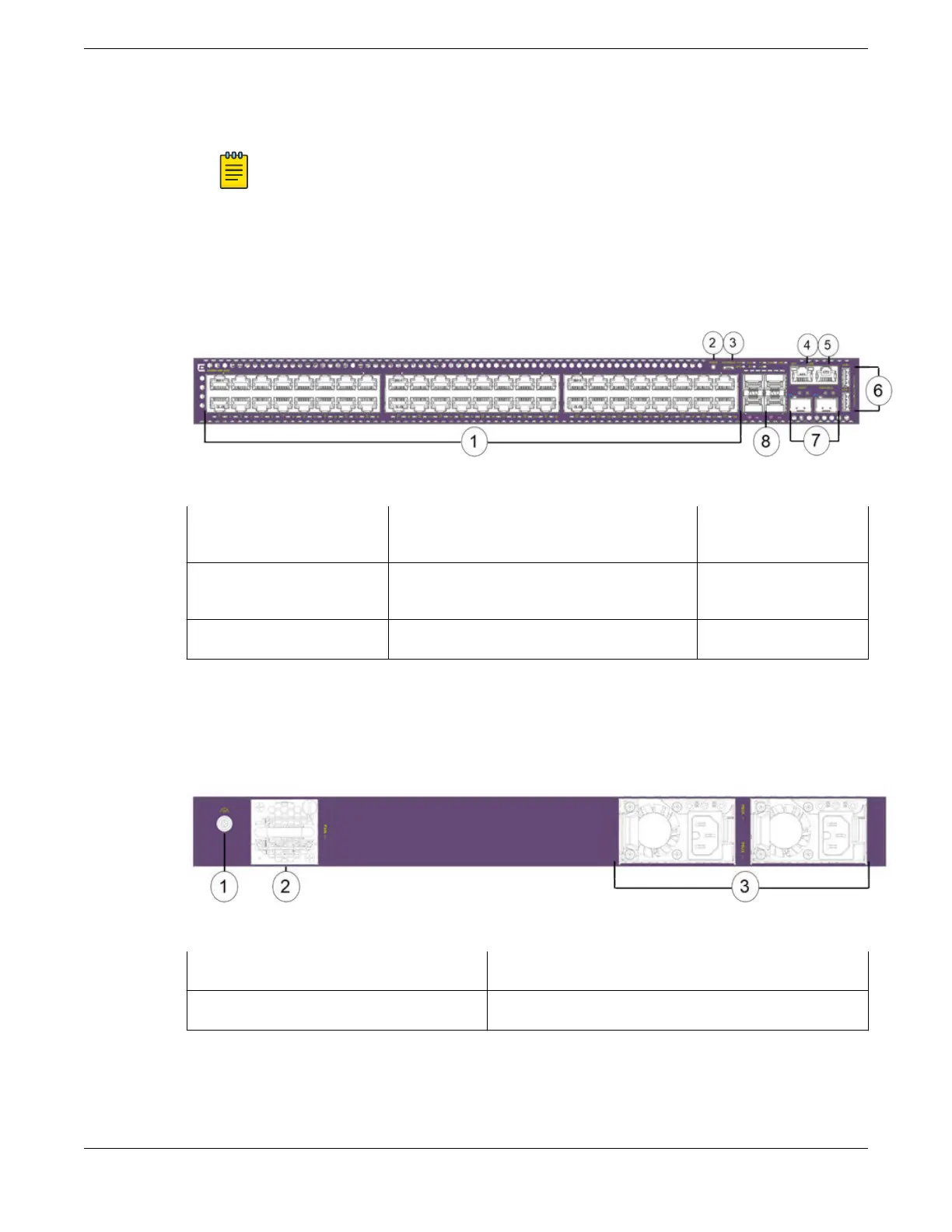

Figure 25: 5420M-48T-4YE Front Panel
1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
management port
7 = SFP-DD stacking
ports
2 = Mode button 5 = RJ-45 serial console port 8 = 1/10/25G SFP28
ports
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
• 1 fan module
• Grounding lug
• 2 power supply slots
Figure 26: 5420M-48T-4YE Rear Panel
1 = Grounding lug 3 = Power supply slots
2 = Fan module
5420M-48T-4YE Switch Features ExtremeSwitching 5420 Series Overview
28 ExtremeSwitching 5420 Series Hardware Installation Guide
