4. Carefully slide the replacement fan module into the switch.

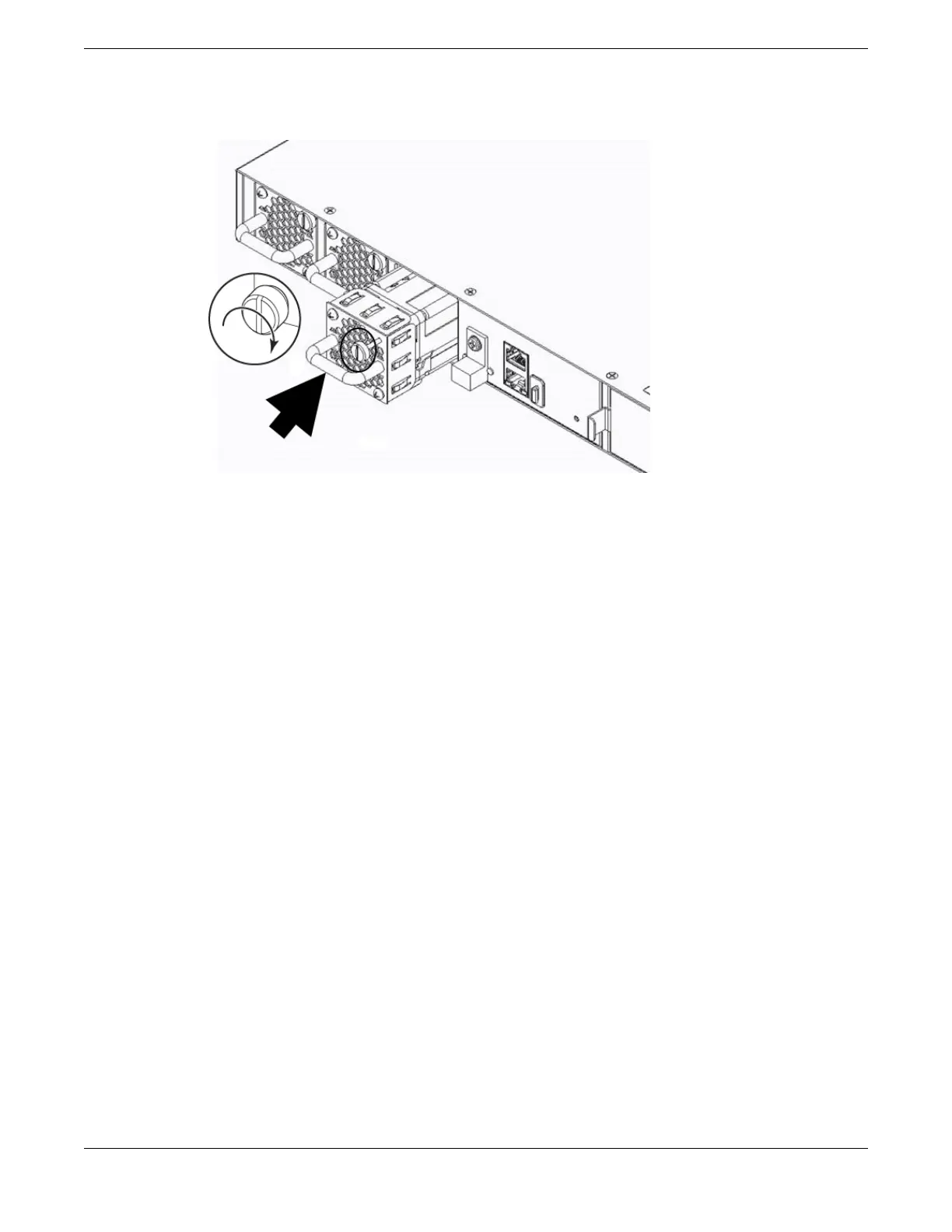

Figure 57: Installing a Fan Module
5. Align and fully tighten the captive retaining screws.
Replacing Fan Modules
Replacing a Fan Module
ExtremeSwitching 5420 Series Hardware Installation Guide 93
