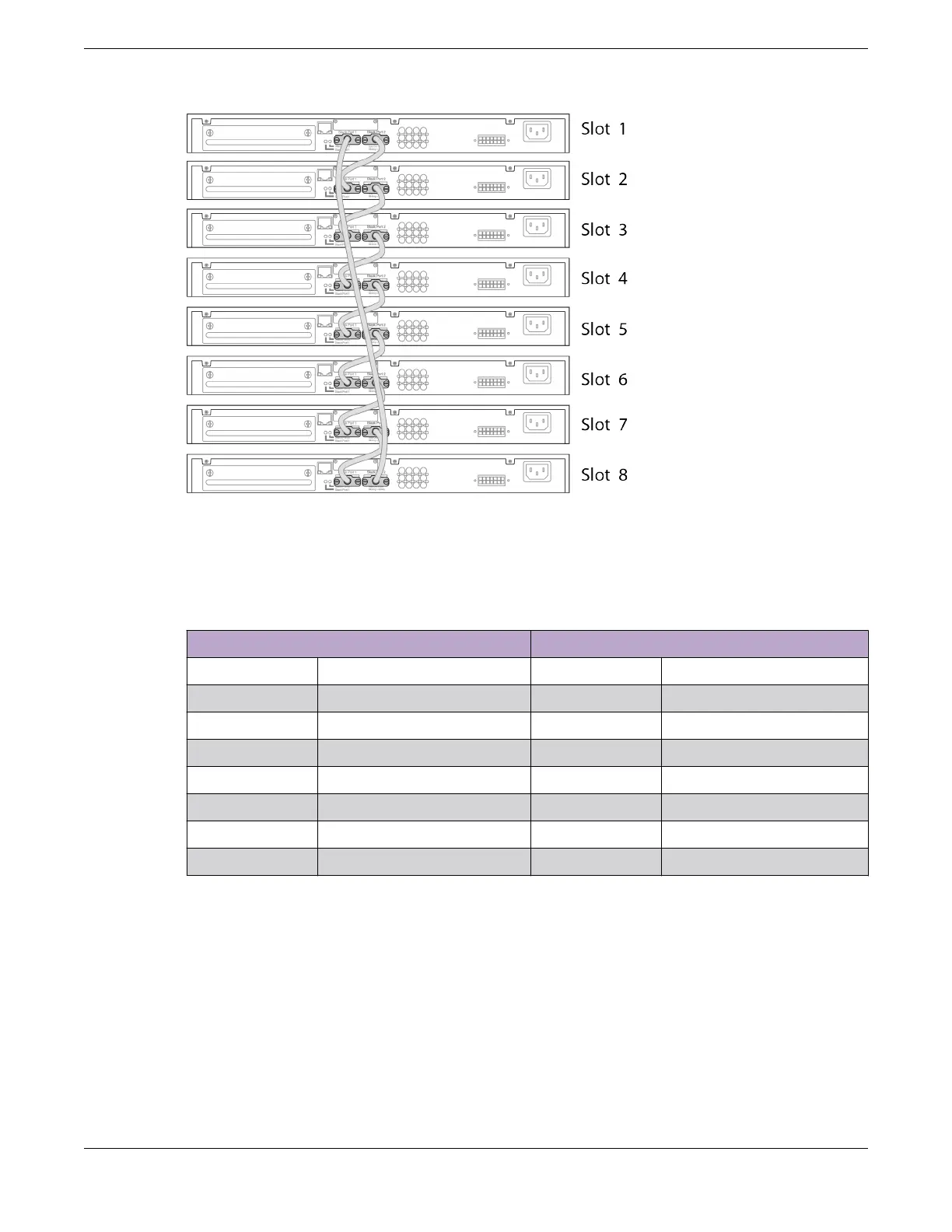

Figure 43: SummitStack Cable Connections Using Eight Switches with Integrated
SummitStack Ports
Table 23 lists the recommended order for connecting the stacking ports in this example.
Table 23: Basic Stack with Eight Switches: Connections
Connect this slot and port . . . . . . To this slot and port
Slot 1 Stack Port 2 Slot 2 Stack Port 1
Slot 2 Stack Port 2 Slot 3 Stack Port 1
Slot 3 Stack Port 2 Slot 4 Stack Port 1
Slot 4 Stack Port 2 Slot 5 Stack Port 1
Slot 5 Stack Port 2 Slot 6 Stack Port 1
Slot 6 Stack Port 2 Slot 7 Stack Port 1
Slot 7 Stack Port 2 Slot 8 Stack Port 1
Slot 8 Stack Port 2 Slot 1 Stack Port 1
Example: Stack with VIM1-SummitStack Modules
Figure 44 shows an example of a four-switch stack that combines two
dierent switch models: two of
each model; four switches in all. For the first switch model, the stacking ports are on installed VIM1-
SummitStack modules. For the second switch model, the stacking ports are on installed SummitStack
stacking modules. The recommended order for connecting the stacking ports is the same as for the
example in Example: Basic Stack with Eight Switches on page 67.
Connecting the Switches to Form the Stack Ring
Building Stacks
68 ExtremeSwitching 5520 Series Hardware Installation Guide
