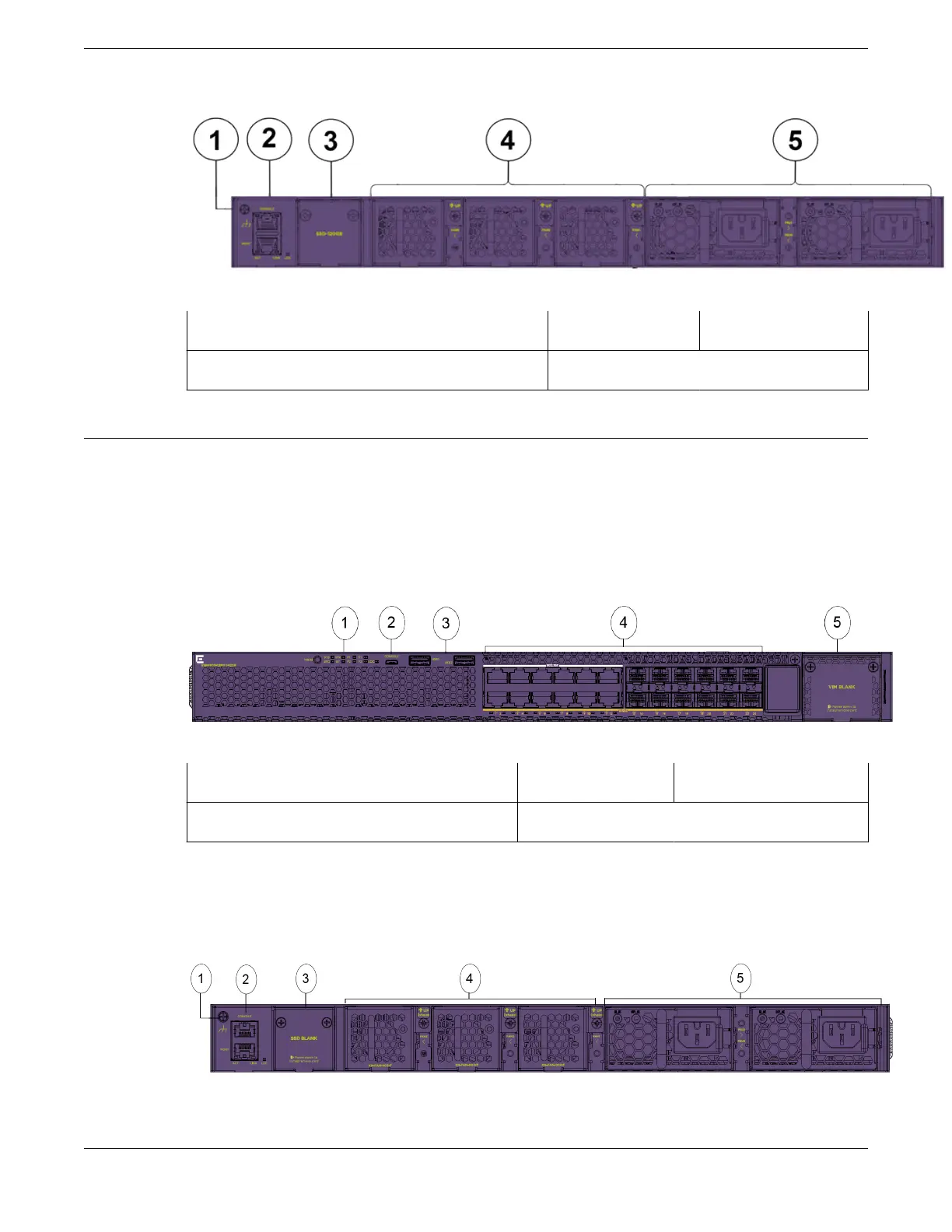

Figure 2: VSP 4900 Series Switch: Rear Panel
1 = Grouding lug 3 = SSD slot 5 = Power supplies
2 = RJ45 console and management ports 4 = Fan modules

VSP4900-12MXU-12XE Switch Features
The front panel of the ExtremeSwitching VSP4900-12MXU-12XE switch includes:
•
12 100Mb/1/2.5/5/10Gb ports with 802.1bt Type 3 PoE (60W)
• 12 1G/10Gb SFP+ LRM and MACsec capable ports
• 1 VIM5 slot
• 2 USB A ports
• 1 USB micro B management port
Figure 3: VSP4900-12MXU-12XE Series Switch: Front Panel
1 = Mode Button and System LEDs
3 = USB A ports 5 = VIM slot, covered
2 = USB micro B management port 4 = Access ports

The rear panel of the ExtremeSwitching VSP4900 switch includes:
• 3 fan modules
• 2 unpopulated PSU slots
• RJ-45 console and management ports
Figure 4: VSP 4900 Series Switch: Rear Panel
VSP4900-12MXU-12XE Switch Features Overview of the VSP 4900 Series Switch
14 VSP 4900 Series Switches: Hardware Installation Guide
