VIM5-4X Versatile Interface Module
The VIM5-4X versatile interface module provides four 10-GbE (SFP+) ports.
For information about the supported optical modules, refer to the most recent version
of the Extreme Hardware/Software Compatibility and Recommendation Matrices .

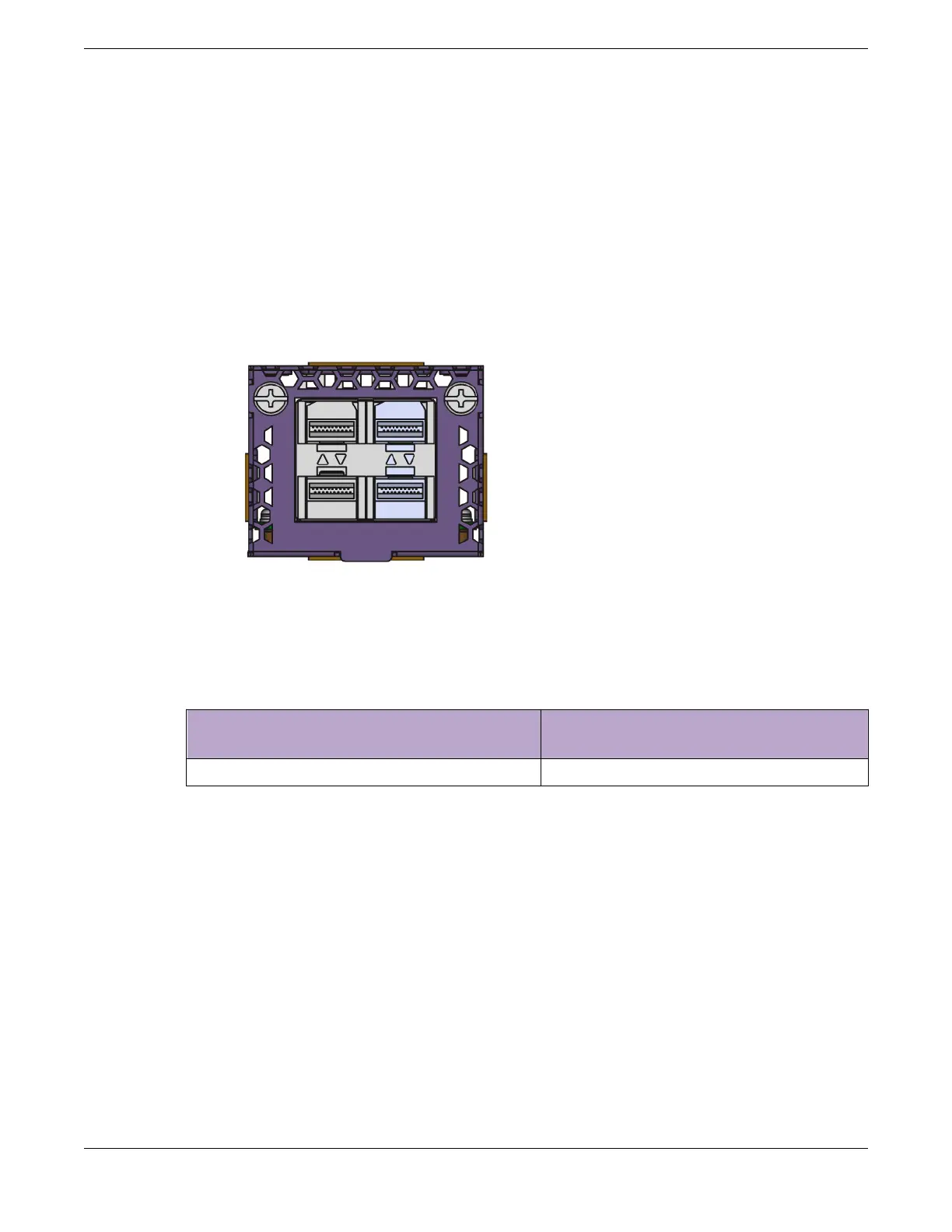

Figure 10: VIM5-4X Versatile Interface Module
Table 10: Port Numbers for Ports on the VIM5-4X Module
ExtremeSwitching VSP 4900
port numbers for 24-port models
ExtremeSwitching VSP 4900
port numbers for 48-port models
2/1, 2/2, 2/3, 2/4 2/1, 2/2, 2/3, 2/4
VIM5-4XE Versatile Interface Module
The VIM5-4XE versatile interface module provides four 10-GbE (SFP+) ports, LRM/
MACsec capable.
For information about the supported optical modules, refer to the most recent version
of the Extreme Hardware/Software Compatibility and Recommendation Matrices .
Expansion Modules VIM5-4X Versatile Interface Module
VSP 4900 Series Switches: Hardware Installation Guide 23
