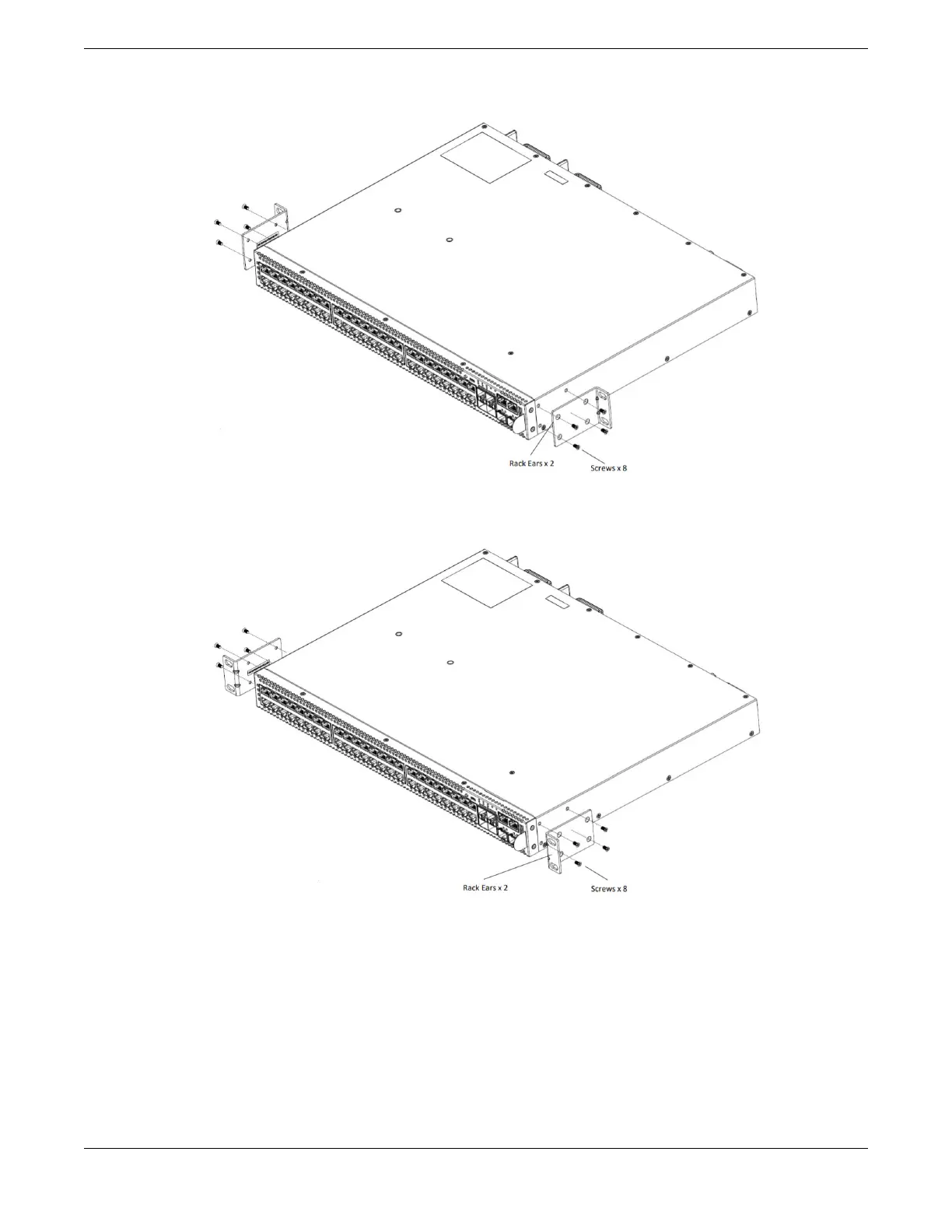

Figure 20: Mid-Mount: Attaching Short Mounting Brackets
Figure 21: Front Mount: Attaching Short Mounting Brackets
2. Attach the other rack ear to the other side.
If using screws other than those provided, ensure that the threaded length of the
screws is within 4 to 5 cm.
3. Attach the rack rails to both sides of the switch using rack screws (rack screws
provided).
4. Attach the rack ears to the front rack posts, using the screws (rack post screws not
provided).
Attach the Switch to a Rack or Cabinet Installing a Switch
48 VSP 4900 Series Switches: Hardware Installation Guide
