BEISSBARTH MT 870 / MT 880
6-2
2.) Input with concealed adhesive weight
(Inner drive-on or adhesive weight with one concealed adhesive
weight each)

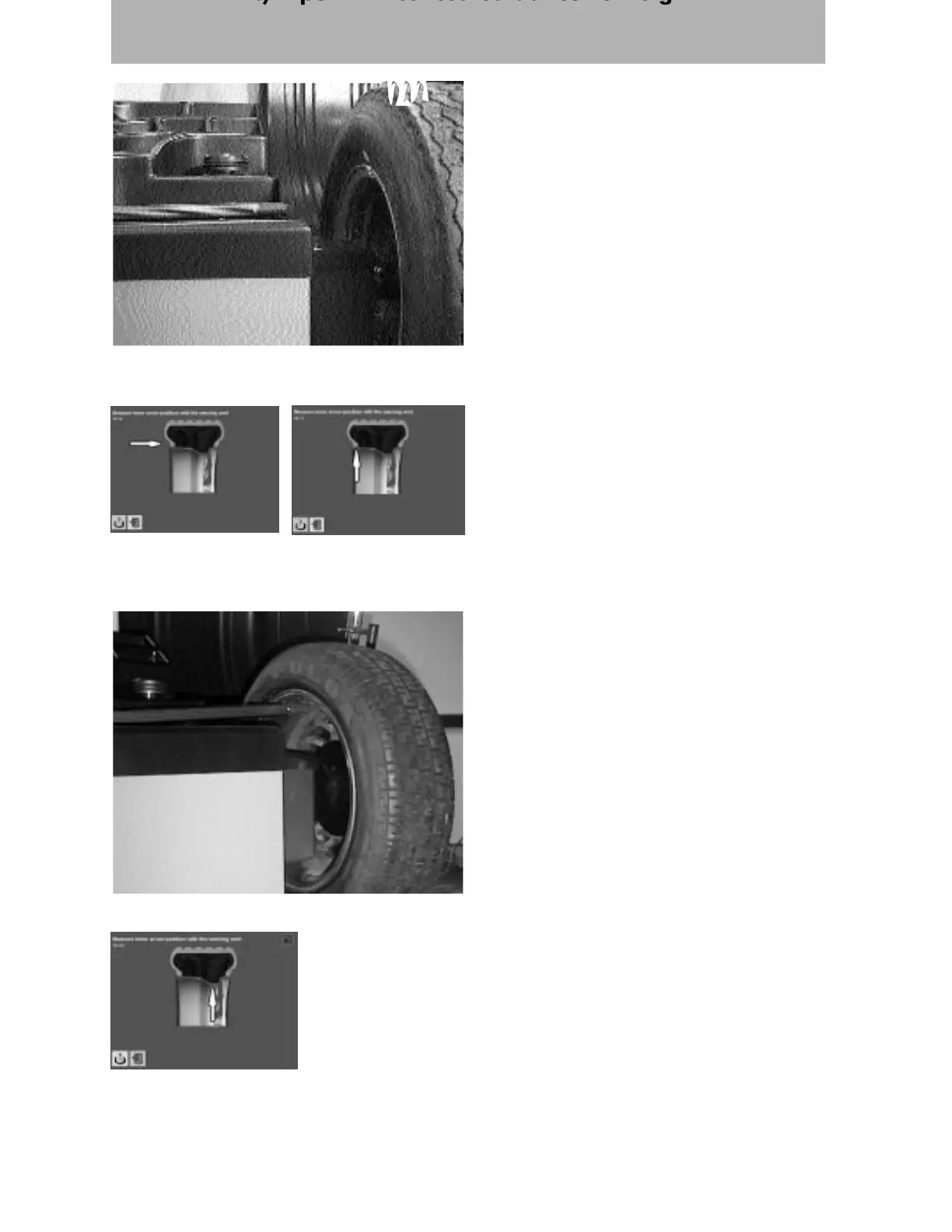

Pull the position measuring arm away from the
zero position and into the position on the rim at
which the inner drive-on or adhesive weight is to
be attached after balancing.
Wait until the measuring symbol disappears and
an acoustic signal is heard.
Then move the arm back to the zero position.
Pull the position measuring arm away from the
zero position and into the position on the rim at
which the concealed adhesive weight is to be
attached after balancing.
Wait until the measuring symbol disappears and
an acoustic signal is heard.
Note:
To ensure that the position is located reliably, a
piece of the adhesive weight can be inserted into
the holder on the position measuring arm during
the measuring operation.
The wheel balancing computer has then
memorised the balance weight attachment
points.
Start the balancing process.
