Facom BEISSBARTH microtec 880 - Frequency Converter Connection Chart

Mt 880/870/En/Rev. 002/05/98 * 901.882.002
BEISSBARTH MT 870 / MT 880
A-3

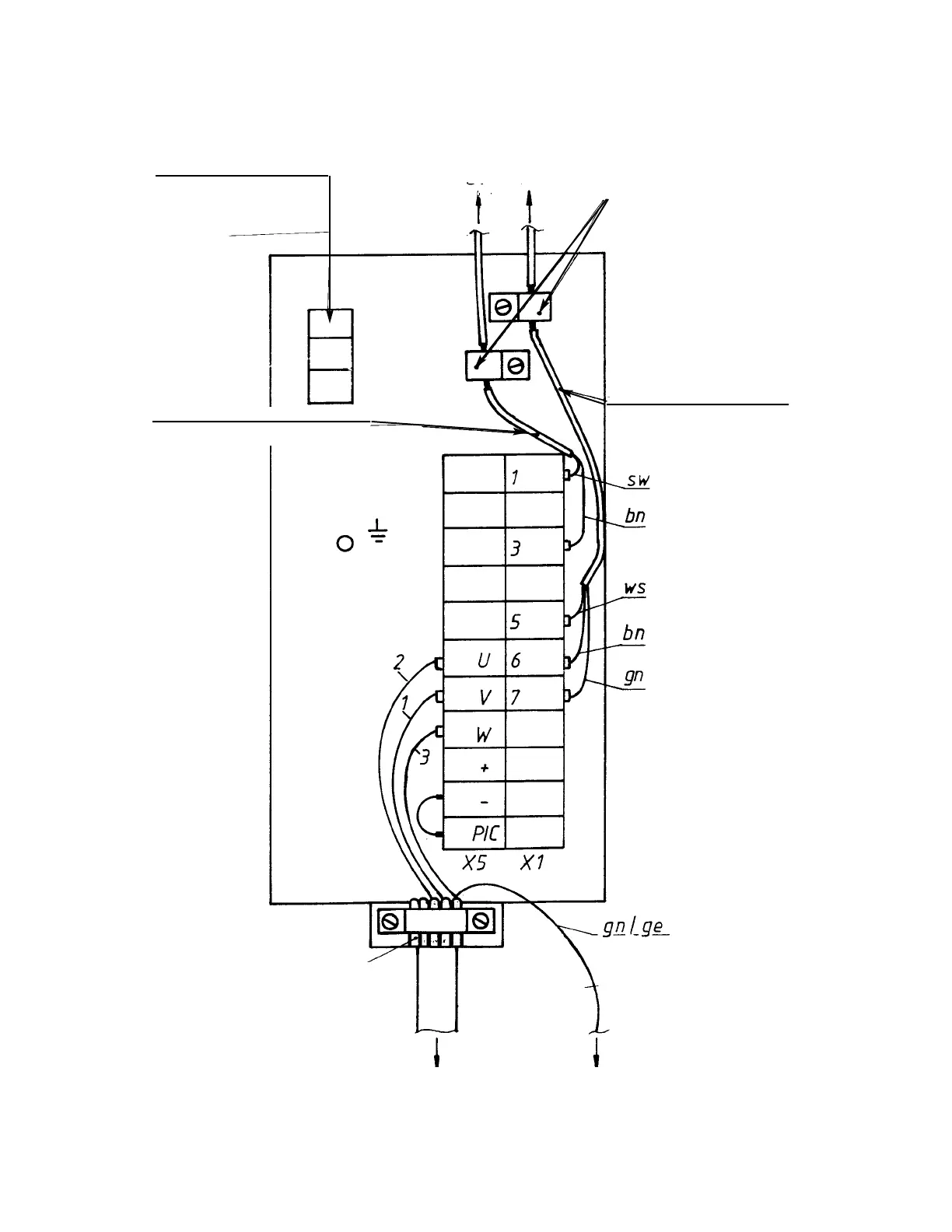

Frequency converter connection chart mt 880 / mt 870
Cable FU- SP
EDV-Nr.: 931 883 019
Mains cable HS- FU- SP
EDV-Nr.: 931 883 016
Ring clamp
EDV-Nr.: 974 205 148
Cable PC- FU
EDV-Nr.: 931 883 021
Shielding
Cable FU- Motor
EDV-Nr.: 931 883 018
Motor Earth cable
gn = green sw = black ws = white
ge = yellow bn = brown
SP PC
